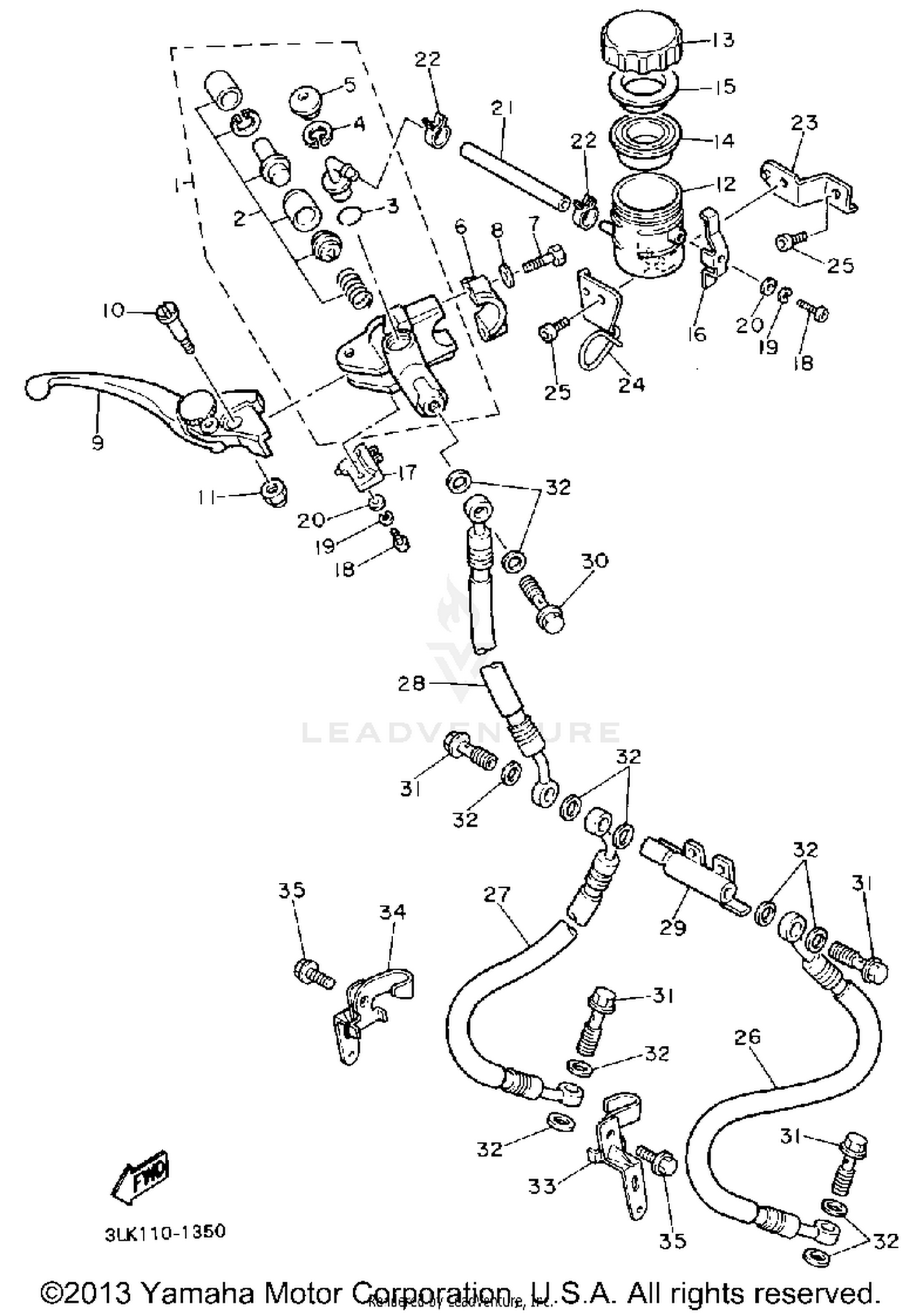

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB ASSEMBLY
3GM-W2587-50-00
|
$213.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
3GM-W0041-50-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
93210-15620-00
Superseded by 93210-15566-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
2VN-25866-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, DUST
3FV-2589A-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, MASTER CYLINDER
56A-25867-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
97016-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
LEVER 2
3GM-83922-50-00
Superseded by 3GM-83922-51-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, LEVER
3FV-2589F-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, U
95616-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
TANK, RESERVOIR
3FV-25894-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP, RESERVOIR
3GM-25852-50-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, DIAPHRAGM
3FV-25854-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BUSH, DIAPHRAGM
2J2-25855-50-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOLDER
3FV-2589G-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
FRONT STOP SWITCH ASSY
3FV-83980-00-00
Superseded by 4HM-83980-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE
3GM-2585F-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP, PIPE 1
3PA-24356-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
STAY
3GM-26292-50-00
|
$18.99 | ||
|
Unavailable |
|||
|
#24
GUIDE, CABLE 1
3GM-26131-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#25
BOLT, HEXAGON SOCKET HEAD
90110-06145-00
Superseded by 91314-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOSE, BRAKE 1
3GM-25872-51-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOSE, BRAKE 2
3GM-25873-51-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOSE, BRAKE
3GM-25874-51-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
JOINT
42H-25885-01-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, UNION
90401-10095-00
Superseded by 90401-10038-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, UNION
90401-10096-00
Superseded by 90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
HOLDER, BRAKE HOSE 1
3LK-25875-50-00
Superseded by 3LK-25875-52-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
HOLDER, BRAKE HOSE 2
3LK-25876-50-00
Superseded by 3LK-25876-52-00
|
$27.99 | ||
|
Unavailable |
|||
|
#35
BOLT, FLANGE
95816-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
