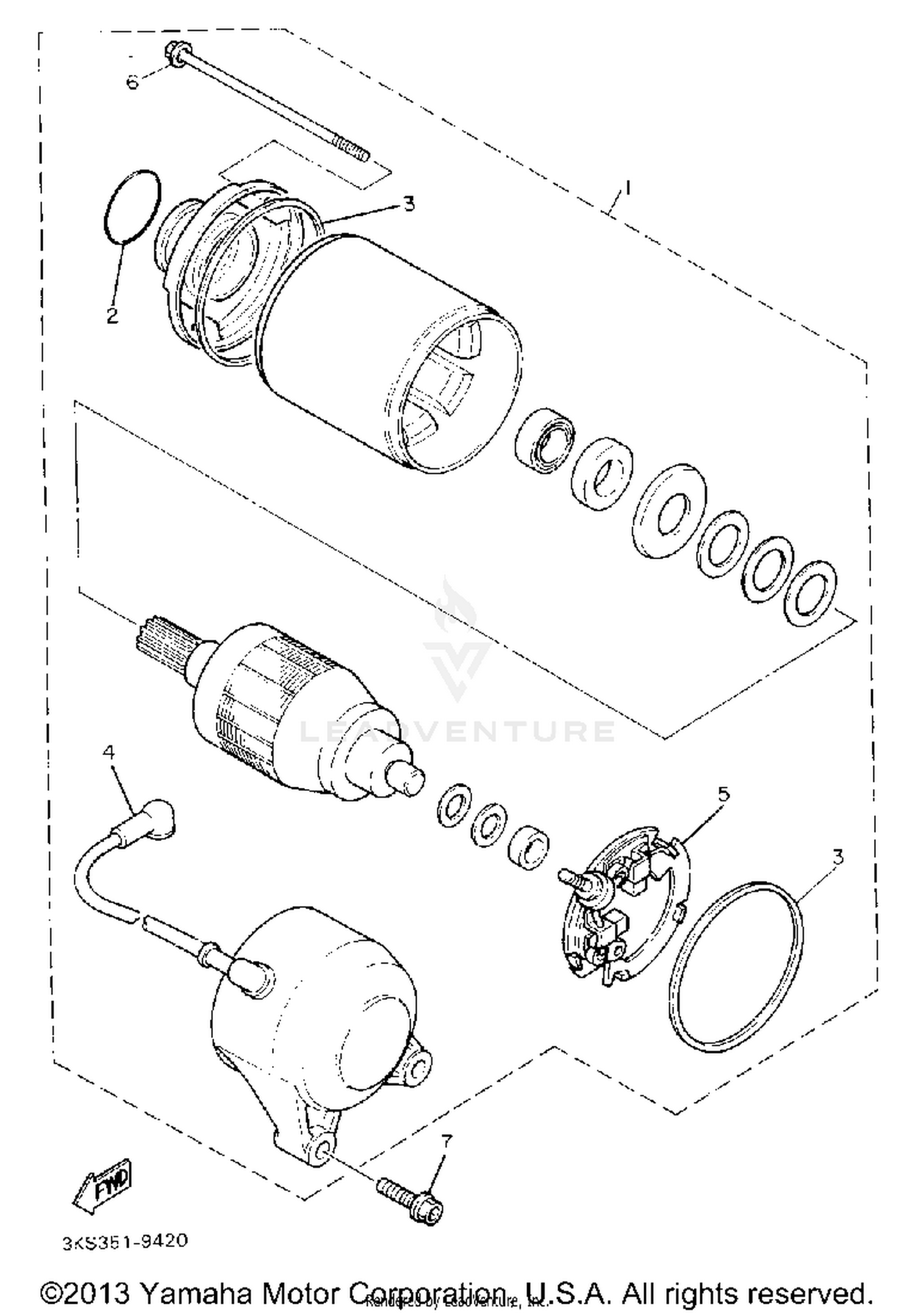

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STARTING MOTOR UNIT
3GM-81800-50-00
Superseded by 3KS-81890-00-00
|
$516.99 | ||
|
Unavailable |
|||
|
#2
O-RING
26H-81847-00-00
Superseded by 93210-24235-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET
11H-81844-00-00
Superseded by 35C-81844-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CORD, STARTER MOTOR
3GM-81815-50-00
|
$88.99 | ||
|
Unavailable |
|||
|
#5
BRUSH HOLDER ASSY
3KS-81840-00-00
|
$161.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
3HE-81826-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95811-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
