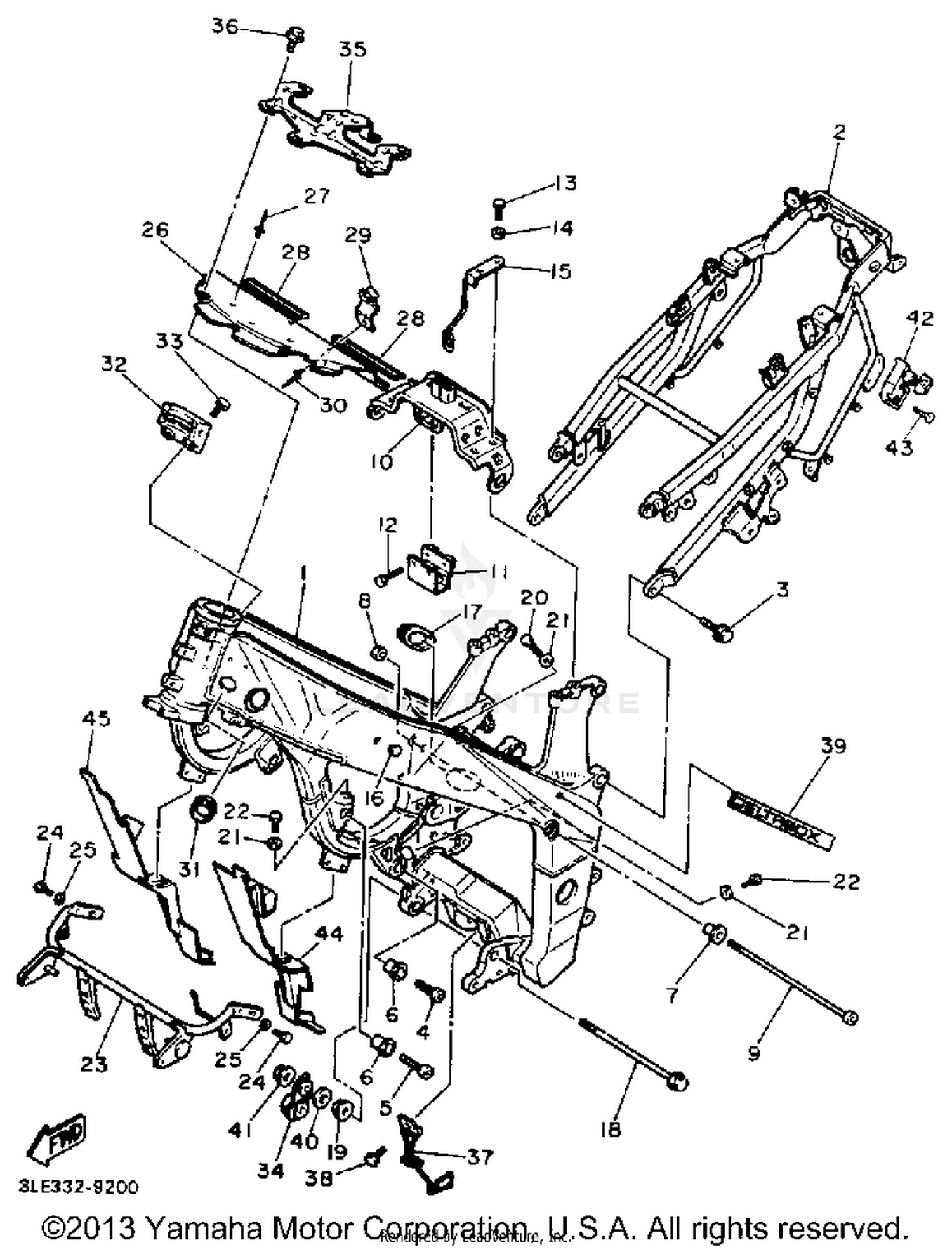

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
3LK-21110-00-00
|
$3,039.99 | ||
|
Unavailable |
|||
|
#2
REAR FRAME
3GM-21190-00-33
|
$701.99 | ||
|
Unavailable |
|||
|
#3
BOLT, WASHER BASEDBASED
90105-10459-00
|
$3.45 | ||
|
Unavailable |
|||
|
#4
BOLT
91316-10045-00
Superseded by 91317-10045-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, HEXAGON SOCKET HEAD
90110-10168-00
|
$3.85 | ||
|
Unavailable |
|||
|
#6
COLLAR
90387-115V8-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-105V7-00
|
$4.65 | ||
|
Unavailable |
|||
|
#8
NUT
90179-10590-00
Superseded by 90179-10682-00
|
$11.99 | ||
|
Unavailable |
|||
|
#9
BOLT, HEXAGON SOCKET HEAD
90110-10169-00
|
$23.99 | ||
|
Unavailable |
|||
|
#10
BRACKET, TANK FTNGFITTING
3GM-21348-01-00
|
$98.99 | ||
|
Unavailable |
|||
|
#11
BRACKET, TANK FITTING
3GM-21347-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON
97001-06035-00
Superseded by 97014-06035-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
97013-06012-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
3GM-21548-00-00
|
$16.58 | ||
|
Unavailable |
|||
|
#16
PLUG
90338-15202-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER 5
2GH-2117T-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#18
BOLT, WASHER BASED
90105-10559-00
Superseded by 90105-10716-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
90179-10247-00
Superseded by 90179-10658-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
97006-08035-00
Superseded by 97017-08035-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
97021-08035-00
Superseded by 97017-08035-00
|
$6.49 | ||
|
Unavailable |
|||
|
#23
BRACKET, COOLER 1COOLER 1
3GM-2136A-00-00
|
$157.99 | ||
|
Unavailable |
|||
|
#24
BOLT
97013-06012-00
|
$4.75 | ||
|
Unavailable |
|||
|
#25
WASHER, PLATE
92990-06600-00
|
$2.60 | ||
|
Unavailable |
|||
|
#26
COVER 2
3GM-2117M-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#27
RIVET, BLIND
90267-40076-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
GROMMET
2GH-15365-00-00
|
$4.65 | ||
|
Unavailable |
|||
|
#29
STAY
3GM-2117A-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#30
RIVET, BLIND
90267-40054-00
Superseded by 90267-40076-00
|
$6.99 | ||
|
Unavailable |
|||
|
#31
GROMMET
90480-35526-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#32
BRACKET, TANK FTNGFITTING
3GM-21345-00-00
|
$64.57 | ||
|
Unavailable |
|||
|
#33
BOLT
91316-08016-00
Superseded by 91317-08016-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
STAY, MUFFLER 2
3GM-21446-02-00
Superseded by 4FM-21446-01-00
|
$82.99 | ||
|
Unavailable |
|||
|
#35
BRACKET, COIL
3GM-21359-00-00
|
$38.60 | ||
|
Unavailable |
|||
|
#36
BOLT, WITH WASHER
90119-06114-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
BRACKET, BATTERY BOX
3GM-21149-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#38
BOLT,FLANGE
91026-06010-00
Superseded by 95817-06010-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#39
EMBLEM
1RK-2118E-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#40
WASHER, PLATE
90201-101J1-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#42
HELMET HANGER ASSY
26H-21308-00-00
Superseded by 26H-21308-01-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
SCREW, COUNTERSUNK
90149-06150-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#44
PLATE 1
3GM-28396-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#45
PLATE 2
3GM-28397-00-00
|
$31.99 | ||
|
Unavailable |
|||
