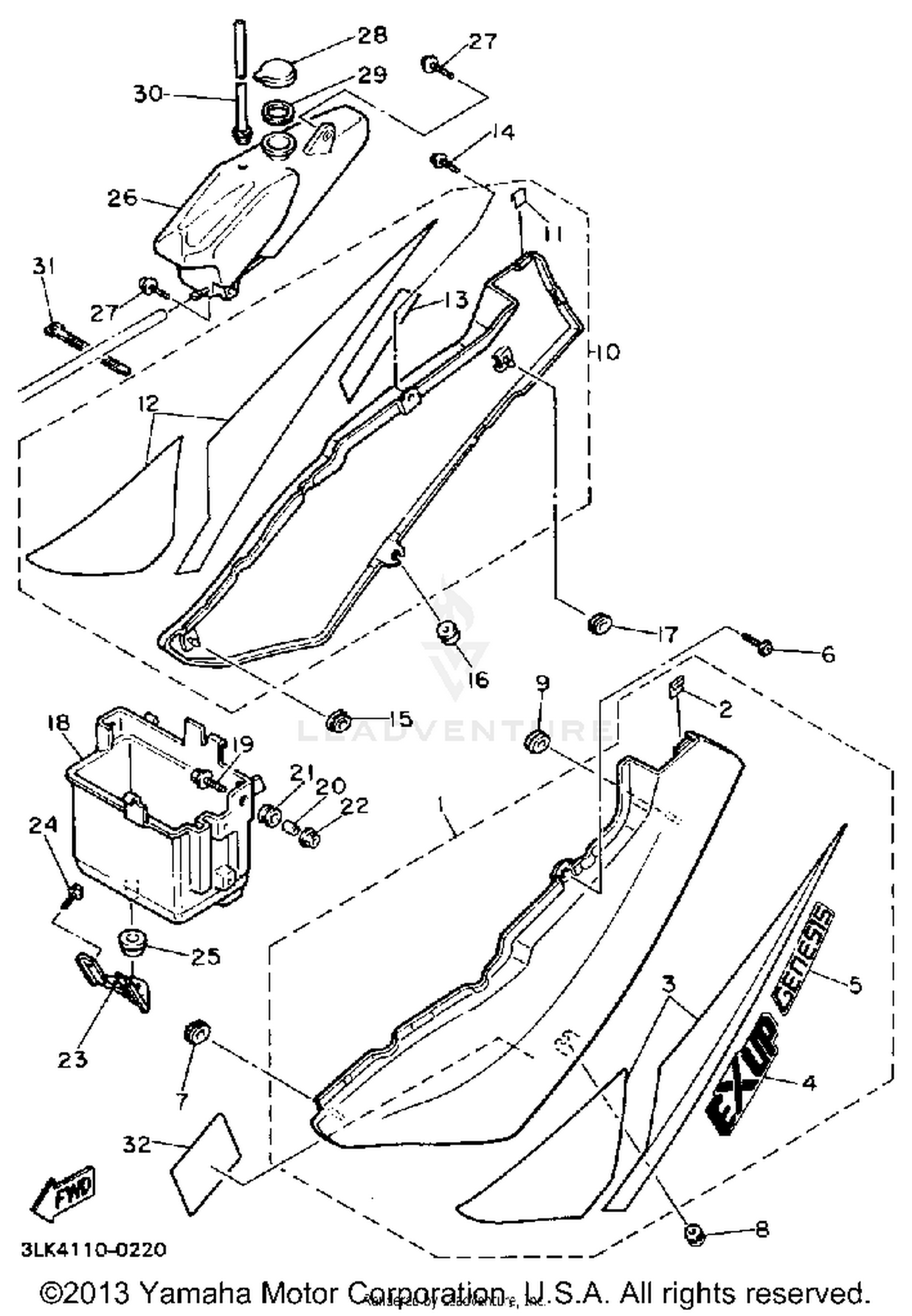

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
UNAVAILABLE IN PRICE BOOK
13G-MY217-14-0
|
|||
|
Unavailable |
|||
|
#2
SEAL 1
2GH-21732-00-00
|
$2.10 | ||
|
Unavailable |
|||
|
#3
GRAPHIC SET 1
3GM-2173L-50-00
|
$121.99 | ||
|
Unavailable |
|||
|
#4
EMBLEM 1
3GM-21781-50-00
|
$11.99 | ||
|
Unavailable |
|||
|
#5
EMBLEM 2
3GM-21782-50-00
|
$6.99 | ||
|
Unavailable |
|||
|
#6
SCREW, WITH WASHER
90159-06033-00
Superseded by 90159-06060-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET
90480-14074-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GROMMET
90480-12320-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GROMMET
90480-22084-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, SIDE 2
3GM-Y2172-40-P0
|
$196.99 | ||
|
Unavailable |
|||
|
#11
SEAL 1
2GH-21732-00-00
|
$2.10 | ||
|
Unavailable |
|||
|
#12
GRAPHIC SET 2
3GM-2174L-50-00
|
$125.99 | ||
|
Unavailable |
|||
|
#13
EMBLEM 1
3GM-21781-50-00
|
$11.99 | ||
|
Unavailable |
|||
|
#14
SCREW, WITH WASHER
90159-06033-00
Superseded by 90159-06060-00
|
$7.49 | ||
|
Unavailable |
|||
|
#15
GROMMET
90480-14074-00
|
$5.49 | ||
|
Unavailable |
|||
|
#16
GROMMET
90480-12320-00
|
$7.49 | ||
|
Unavailable |
|||
|
#17
GROMMET
90480-22084-00
|
$6.49 | ||
|
Unavailable |
|||
|
#18
BOX
3GM-21240-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#19
BOLT, WITH WASHER
90119-06097-00
Superseded by 90119-06172-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-060A7-00
Superseded by 90387-06113-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
GROMMET
90480-16233-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET
3GM-21249-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE
95811-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
GROMMET
90480-23192-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
TANK, RECOVERY
2GH-21871-00-00
|
$70.99 | ||
|
Unavailable |
|||
|
#27
SCREW, WITH WASHER
90159-06056-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
CAP
4L0-21875-00-00
Superseded by 1AA-21815-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
GASKET
1AA-21874-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIPE, OVERFLOW
3GM-21816-00-00
Superseded by 4BH-21877-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BAND, SWITCH CORD
437-83936-10-00
Superseded by 437-83936-11-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#32
PLATE, EPA CAL 2
3LK-2179R-10-00
|
$10.99 | ||
|
Unavailable |
|||
|
#
PLATE, EPA U49
3LK-2179V-10-00
|
$10.99 | ||
|
Unavailable |
|||
