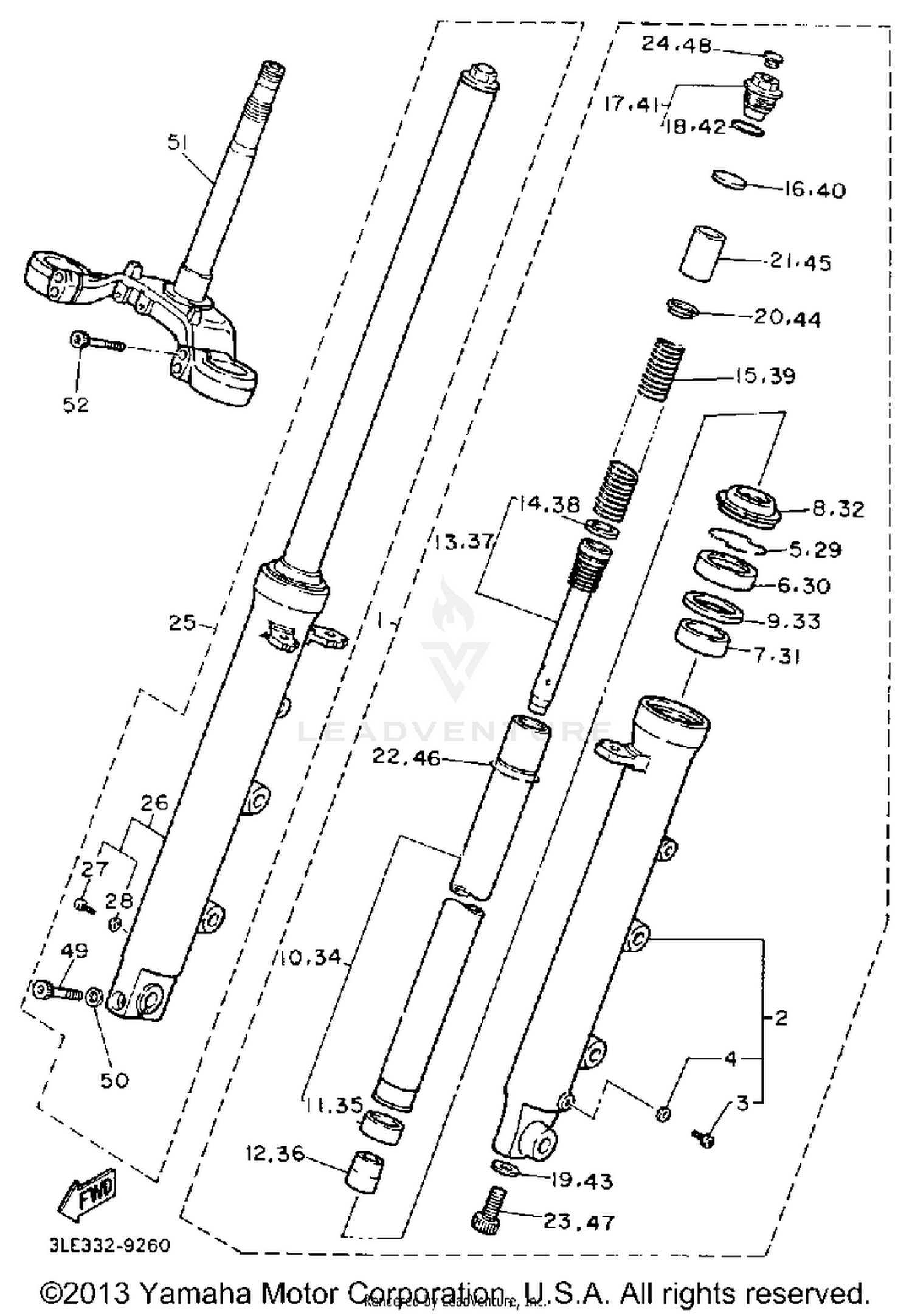

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY L (L.H)
3GM-23102-00-00
|
$728.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
3GM-23126-00-00
|
$576.99 | ||
|
Unavailable |
|||
|
#3
SCREW, PAN HEAD
4H7-23119-00-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, SNAP
4V4-23153-L0-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
3GM-23145-00-00
Superseded by 4PU-23145-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
METAL, SLIDE 1
3XJ-23125-L0-00
Superseded by 5EB-23125-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL, DUST
3GM-23144-00-00
Superseded by 4PU-23144-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, OIL SEAL
4V4-23146-L0-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
INNER TUBE 1COMP.1
3GM-23110-00-00
|
$581.99 | ||
|
Unavailable |
|||
|
#11
PISTON, FRONT FORK
3XJ-23171-L0-00
Superseded by 5EB-23171-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPINDLE, TAPER
3GM-23173-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CYLINDER, FRTFRKFRONT FORK
3GM-23170-00-00
|
$82.99 | ||
|
Unavailable |
|||
|
#14
RING, PISTON
3GM-23157-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, FRONT FORKFORK
3GM-23141-00-00
|
$57.99 | ||
|
Unavailable |
|||
|
#16
WASHER, SPRING UPRUPPER
3GM-23149-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, CAP
3GM-23111-00-00
|
$58.99 | ||
|
Unavailable |
|||
|
#18
O-RING
4V4-23188-L0-00
Superseded by 4V4-23188-L1-00
|
$5.49 | ||
|
Unavailable |
|||
|
#19
GASKET
4V4-23158-L0-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAT, SPRING UPPER
3GM-23142-00-00
Superseded by 4V4-23142-L0-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPACER
3GM-23118-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#22
RING, SNAP
3GM-23153-00-00
|
$0.85 | ||
|
Unavailable |
|||
|
#23
BOLT, HEXAGON SOCKET HEAD
4V4-23181-L0-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CAP, FRONT FORK
3GM-23168-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#25
FRONT FORK ASSEMBLY R (R.H)
3GM-23103-00-00
|
$728.99 | ||
|
Unavailable |
|||
|
#26
TUBE, OUTER 2
3GM-23136-00-00
|
$381.99 | ||
|
Unavailable |
|||
|
#27
SCREW, PAN HEAD
4H7-23119-00-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Unavailable |
|||
|
#28
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#29
RING, SNAP
4V4-23153-L0-00
|
$9.99 | ||
|
Unavailable |
|||
|
#30
OIL SEAL
3GM-23145-00-00
Superseded by 4PU-23145-01-00
|
$25.99 | ||
|
Unavailable |
|||
|
#31
METAL, SLIDE 1
3XJ-23125-L0-00
Superseded by 5EB-23125-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#32
SEAL, DUST
3GM-23144-00-00
Superseded by 4PU-23144-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#33
WASHER, OIL SEAL
4V4-23146-L0-00
|
$6.99 | ||
|
Unavailable |
|||
|
#34
INNER TUBE 1COMP.1
3GM-23110-00-00
|
$581.99 | ||
|
Unavailable |
|||
|
#35
PISTON, FRONT FORK
3XJ-23171-L0-00
Superseded by 5EB-23171-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#36
SPINDLE, TAPER
3GM-23173-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#37
CYLINDER, FRTFRKFRONT FORK
3GM-23170-00-00
|
$82.99 | ||
|
Unavailable |
|||
|
#38
RING, PISTON
3GM-23157-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#39
SPRING, FRONT FORKFORK
3GM-23141-00-00
|
$57.99 | ||
|
Unavailable |
|||
|
#40
WASHER, SPRING UPRUPPER
3GM-23149-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#41
BOLT, CAP
3GM-23111-00-00
|
$58.99 | ||
|
Unavailable |
|||
|
#42
O-RING
4V4-23188-L0-00
Superseded by 4V4-23188-L1-00
|
$5.49 | ||
|
Unavailable |
|||
|
#43
GASKET
4V4-23158-L0-00
|
$9.99 | ||
|
Unavailable |
|||
|
#44
SEAT, SPRING UPPER
3GM-23142-00-00
Superseded by 4V4-23142-L0-00
|
$10.99 | ||
|
Unavailable |
|||
|
#45
SPACER
3GM-23118-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#46
RING, SNAP
3GM-23153-00-00
|
$0.85 | ||
|
Unavailable |
|||
|
#47
BOLT, HEXAGON SOCKET HEAD
4V4-23181-L0-00
|
$14.49 | ||
|
Unavailable |
|||
|
#49
BOLT
91311-08045-00
Superseded by 91317-08045-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
WASHER, PLATE
90201-08085-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
UNDER BRACKETCOMP
3GM-23340-00-00
|
$464.99 | ||
|
Unavailable |
|||
|
#52
BOLT, FLANGE
5X3-23181-L0-00
Superseded by 95814-08035-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
