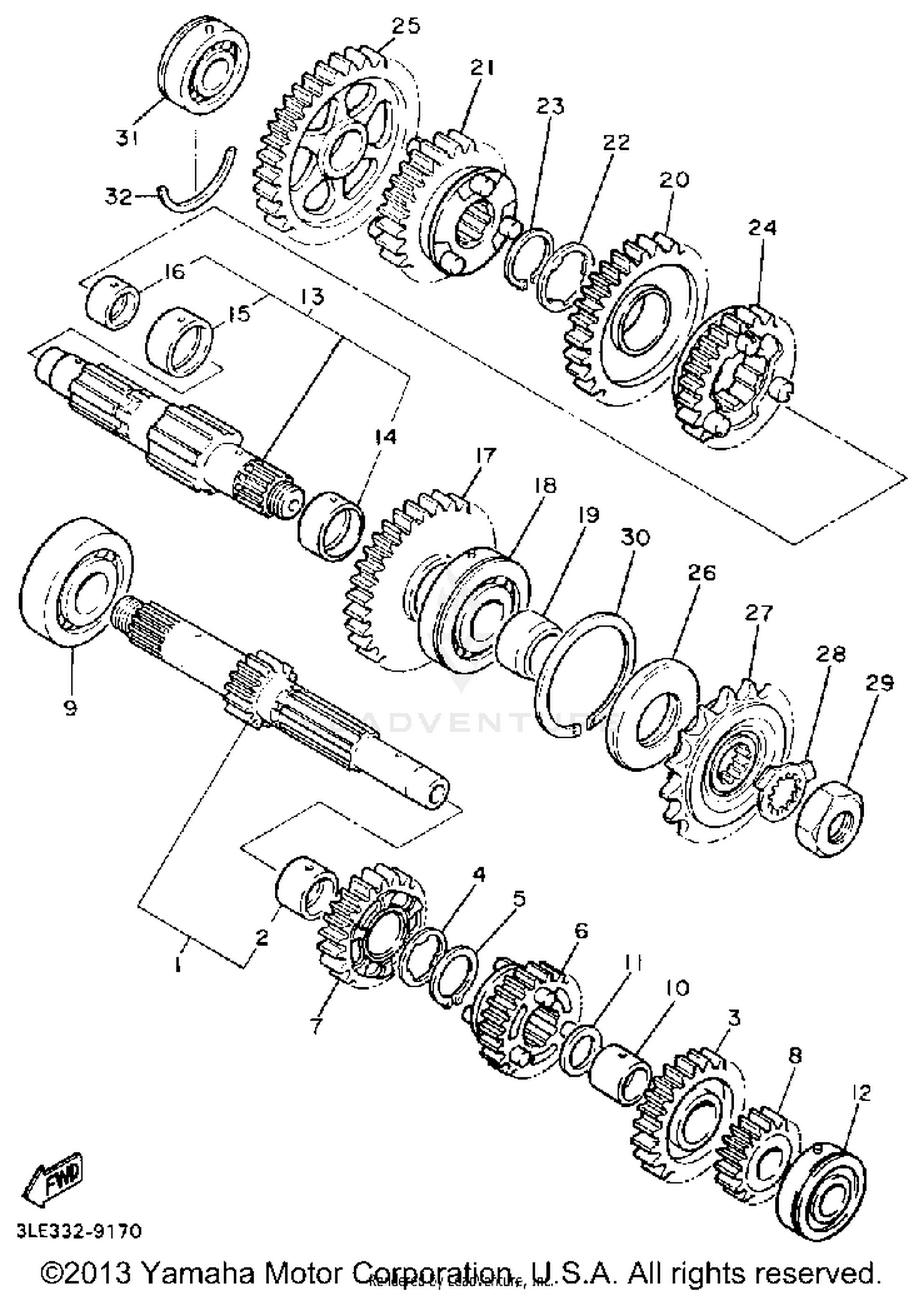

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAIN AXLE ASSEMBLY (14T)
2GH-W1741-00-00
|
$274.99 | ||
|
Unavailable |
|||
|
#2
COLLAR
90387-253M6-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 5TH PINION (27T)
2GH-17151-00-00
|
$130.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
90209-22191-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 3RD PINION
2GH-17131-00-00
Superseded by 2GH-17131-02-00
|
$198.99 | ||
|
Unavailable |
|||
|
#7
GEAR, 4TH PINION (23T)
2GH-17141-00-00
|
$118.99 | ||
|
Unavailable |
|||
|
#8
GEAR, 2ND PINION (18T)
2GH-17121-00-00
|
$50.99 | ||
|
Unavailable |
|||
|
#9
BEARING
93306-30525-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR
90387-203M7-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-200K3-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING
93306-20455-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DRIVE AXLE ASSEMBLY
3GM-W1742-00-00
Superseded by 4SV-W1742-00-00
|
$236.99 | ||
|
Unavailable |
|||
|
#14
COLLAR
90387-271T7-00
Superseded by 90387-2707Y-00
|
$23.99 | ||
|
Unavailable |
|||
|
#15
COLLAR
90387-281T8-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-211T9-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR, 2ND WHEEL (32T)
3GM-17221-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING
93305-30501-00
|
$85.99 | ||
|
Unavailable |
|||
|
#19
COLLAR
90387-255V9-00
|
$20.99 | ||
|
Unavailable |
|||
|
#20
GEAR, 3RD WHEEL
3GM-17231-00-00
Superseded by 3GM-17231-01-00
|
$127.99 | ||
|
Unavailable |
|||
|
#21
GEAR,4TH WHEEL
3GM-17241-00-00
Superseded by 3GM-17241-01-00
|
$181.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER
90209-25196-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#23
CIRCLIP
93440-28062-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
GEAR,5TH WHEEL
3GM-17251-00-00
Superseded by 3GM-17251-01-00
|
$127.99 | ||
|
Unavailable |
|||
|
#25
GEAR, 1ST WHEEL
2GH-17211-01-00
Superseded by 2GH-17211-02-00
|
$123.99 | ||
|
Unavailable |
|||
|
#26
OIL SEAL
93102-35423-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPROCKET, DRIVE 17T (2GH1746170
2GH-17460-11-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, LOCK
90215-21022-00
Superseded by 90215-21290-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, LOCK
90179-18020-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
CIRCLIP 1
278-17424-01-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING
93306-20455-00
|
$42.99 | ||
|
Unavailable |
|||
|
#32
CIRCLIP
93440-45144-00
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
