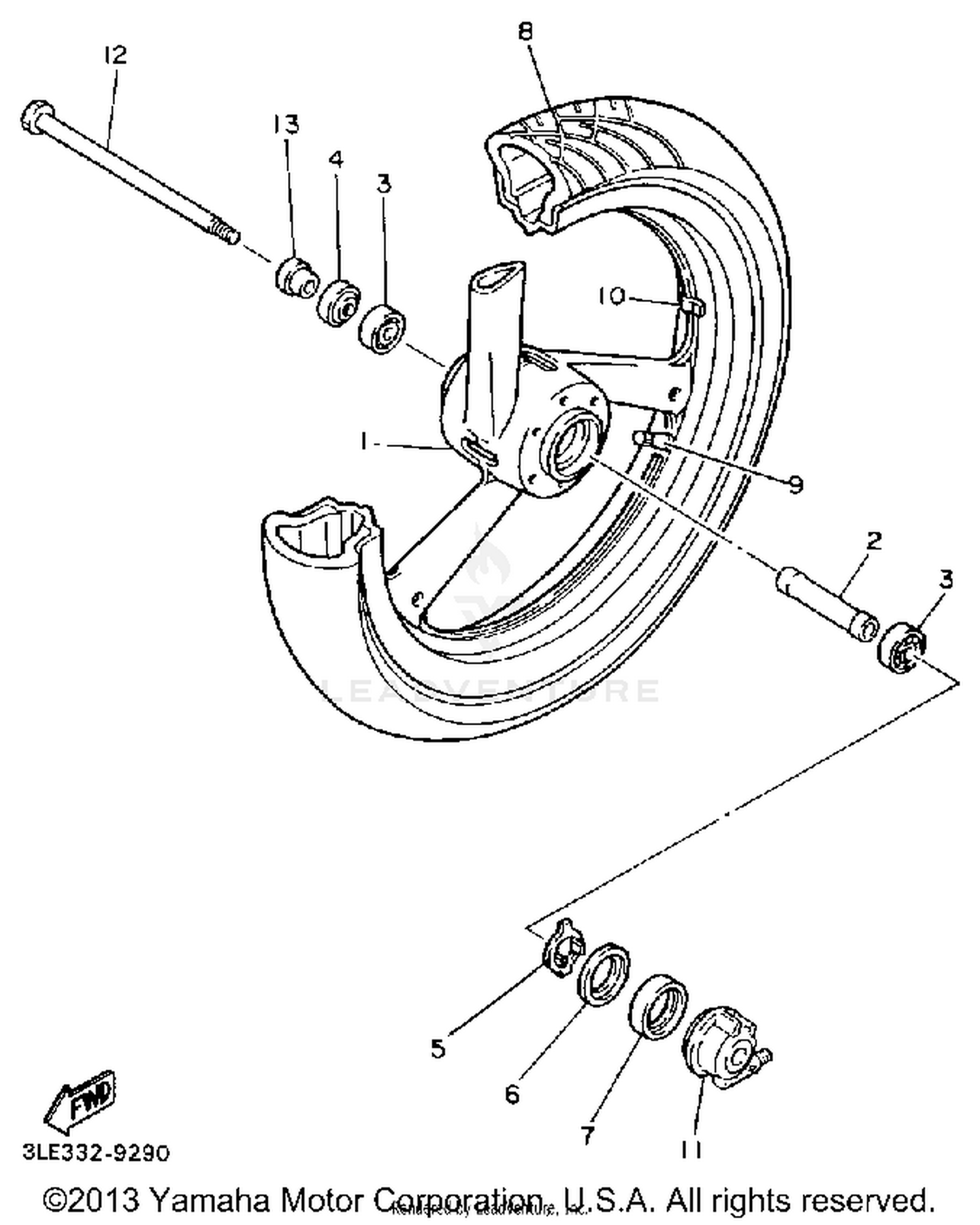

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL, CAST FRONT
3GM-25168-00-UA
|
$767.99 | ||
|
Unavailable |
|||
|
#2
SPACER
90560-17356-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93306-20310-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93102-25017-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLUTCH, METER
341-25149-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
RETAINER, CLUTCH
341-25846-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
93105-45017-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
130/60 ZR17-V280 P
94113-174U4-00
|
$141.99 | ||
|
Unavailable |
|||
|
#9
VALVE, RIM (TR412)
93900-00030-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BALANCER, WHEEL (30G)
29L-25398-20-00
Superseded by 5MT-25398-20-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (20G)
29L-25398-10-00
Superseded by 5MT-25398-10-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (10G)
29L-25398-00-00
Superseded by 5MT-25398-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR UNIT ASSY
3MA-25190-00-00
Superseded by 4HM-25190-20-00
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
AXLE, WHEEL
3GM-25181-00-00
Superseded by 3GM-25181-03-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-17530-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
