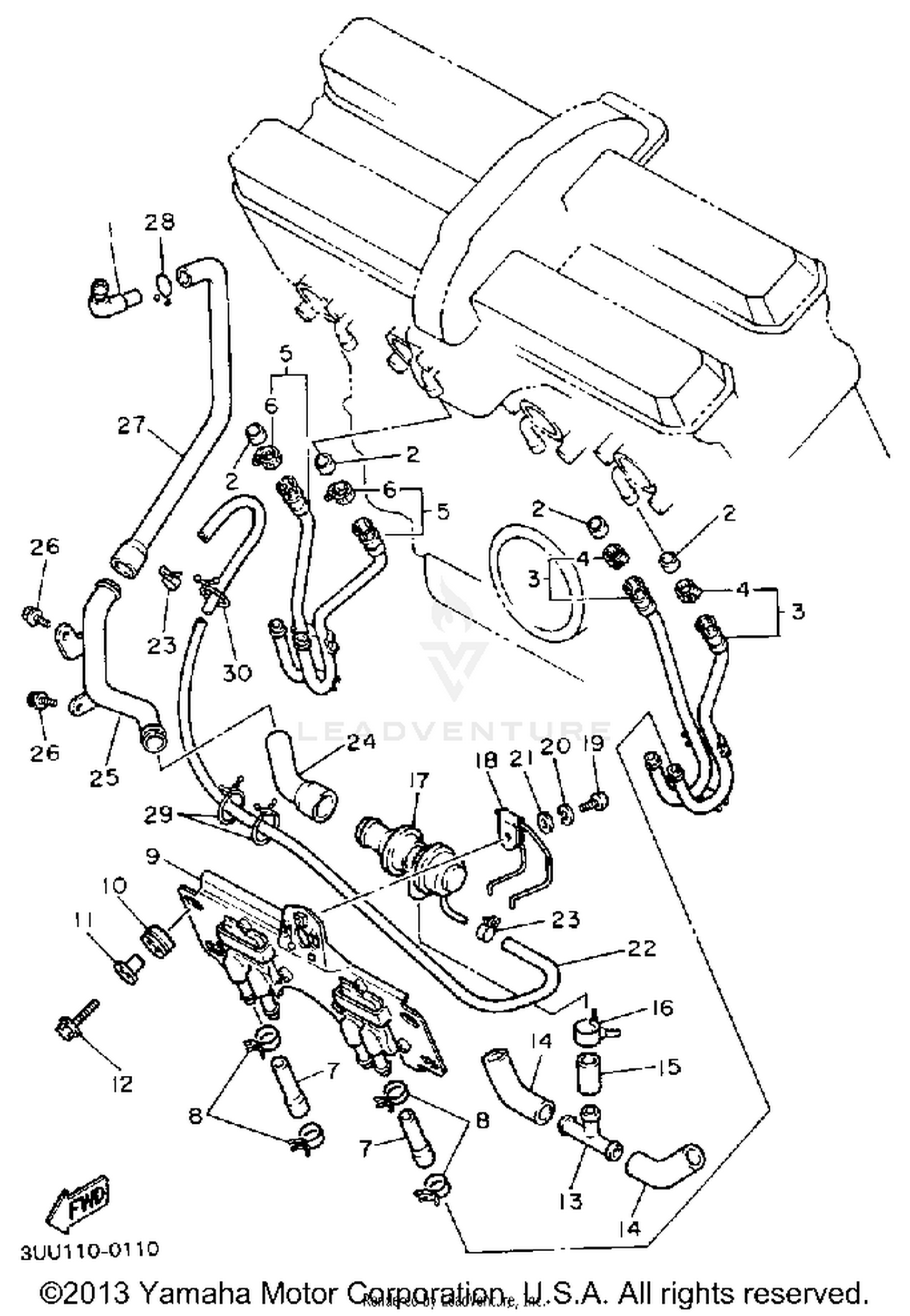

Air Cooler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE
31A-14419-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, MUFFLER
42H-14714-00-00
Superseded by 42H-14714-10-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE 2
3HW-14872-00-00
|
$163.99 | ||
|
Unavailable |
|||
|
#4
HOSE CLAMP ASSY
90450-22052-00
Superseded by 90450-22M14-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE 3
3HW-14873-00-00
|
$251.99 | ||
|
Unavailable |
|||
|
#6
HOSE CLAMP ASSY
90450-22052-00
Superseded by 90450-22M14-00
|
$15.49 | ||
|
Unavailable |
|||
|
#7
HOSE, BEND 3
2LJ-14883-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#8
CLIP
90468-08104-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
REED VALVE ASSEMBLY
3HW-14808-00-00
|
$842.99 | ||
|
Unavailable |
|||
|
#10
GROMMET
90480-14229-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-07391-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95026-06025-00
Superseded by 95027-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIPE 4
2LJ-14874-00-00
|
$55.99 | ||
|
Unavailable |
|||
|
#14
HOSE, BEND 1
2LJ-14881-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#15
HOSE, BEND 2
2LJ-14882-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#16
CLIP
90467-17089-00
Superseded by 90467-17128-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
AIR CUT VALVE ASSEMBLY
3HF-14840-00-00
|
$270.99 | ||
|
Unavailable |
|||
|
#18
CLAMP
90462-20188-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW,PAN HEAD
98506-06016-00
Superseded by 98507-06016-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE (L685)
90445-090G9-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP
90467-08092-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE, BEND 5
3HW-14885-00-00
|
$75.05 | ||
|
Unavailable |
|||
|
#25
PIPE 5
3HW-14875-00-00
|
$272.99 | ||
|
Unavailable |
|||
|
#26
BOLT, FLANGE
95026-06012-00
Superseded by 95027-06012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOSE, BEND 4
3HW-14884-00-00
|
$75.05 | ||
|
Unavailable |
|||
|
#28
CLIP
90467-14015-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLAMP
90464-30040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLAMP
90464-23041-00
Superseded by 90464-25267-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
