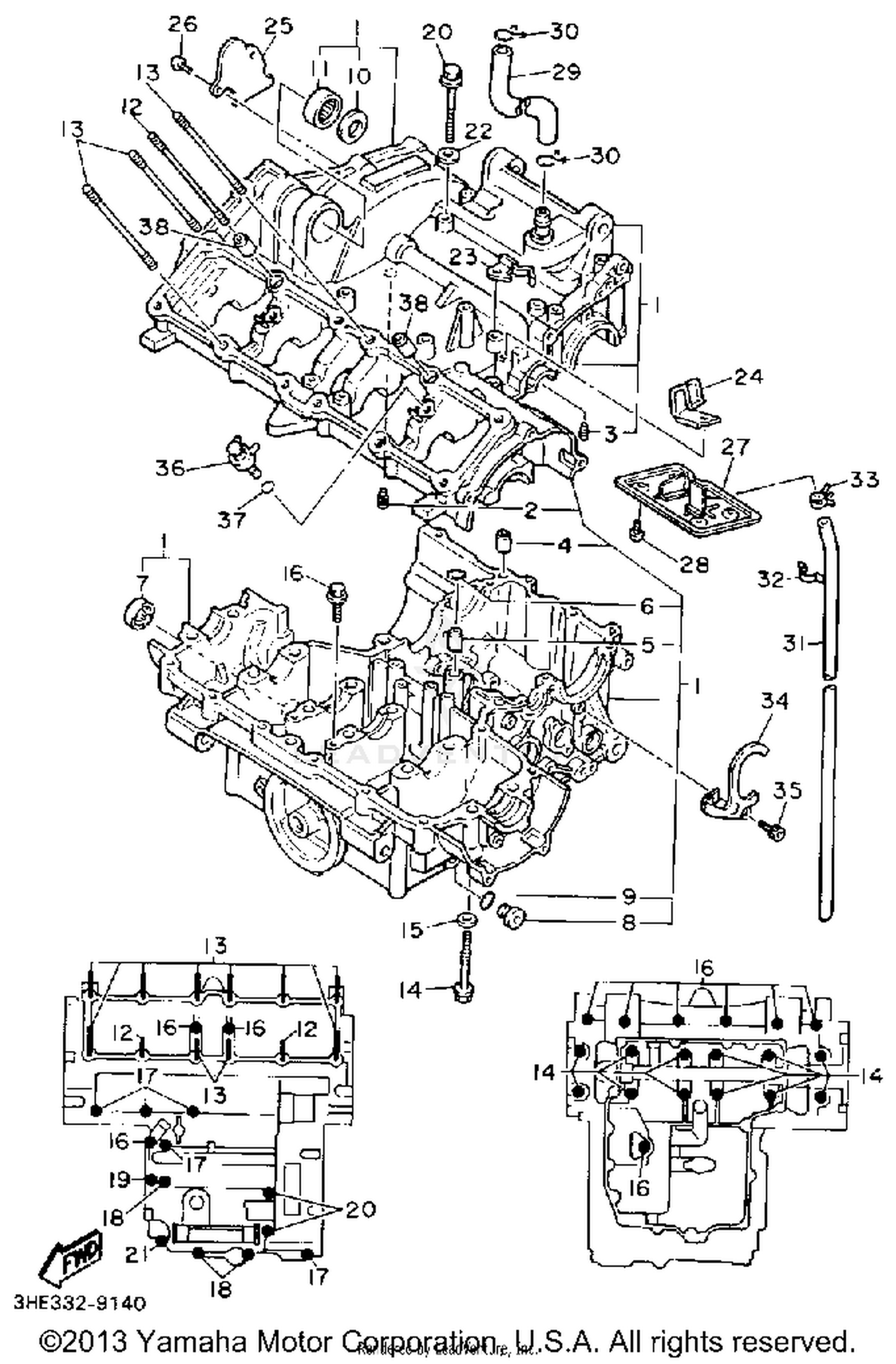

1990 Yamaha FZR600RAC CRANKCASE OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY
3HE-15100-01-00
Superseded by 3HE-15100-02-00
|
$1,072.99 | ||
|
Unavailable |
|||
|
#2
NOZZLE 1
11H-15138-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NOZZLE 1
26H-15138-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
NOZZLE 1
1HX-15138-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#6
O-RING
93210-12152-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GAUGE, LEVEL
2H7-15361-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG
36Y-15189-00-00
Superseded by 36Y-15189-01-00
|
$12.49 | ||
|
Unavailable |
|||
|
#9
O-RING
93210-16629-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-237K5-00
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93315-32516-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, STUD
90116-08526-00
|
$10.99 | ||
|
Unavailable |
|||
|
#13
BOLT, STUD
90116-08525-00
|
$9.99 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE
90105-08429-00
Superseded by 90105-08630-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-087K3-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95816-06040-00
Superseded by 95817-06040-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
95816-06050-00
Superseded by 95817-06050-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
95816-06070-00
Superseded by 95817-06070-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95816-06080-00
Superseded by 95817-06080-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
95816-06090-00
Superseded by 95817-06090-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE
95816-08070-00
Superseded by 95817-08070-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET
90430-06166-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP
90465-10307-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP
90465-10308-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE, BREATHER
3HE-11165-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#26
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#27
PLATE, BREATHER 2
3HE-11145-00-00
Superseded by 5RT-11145-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#28
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Unavailable |
|||
|
#29
PIPE, BREATHER 1
1WG-11166-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLIP
90467-14015-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOSE (L)
90445-116E9-00
Superseded by 90445-112E1-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLAMP
90465-06289-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLIP
90467-10038-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#34
PLATE, BEARING COVER
1WG-15381-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#35
BOLT
91316-06012-00
Superseded by 91317-06012-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
NOZZLE ASSY
3HE-15105-00-00
Superseded by 5RT-15105-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
O-RING
93210-06632-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.60 | ||
|
Unavailable |
|||
