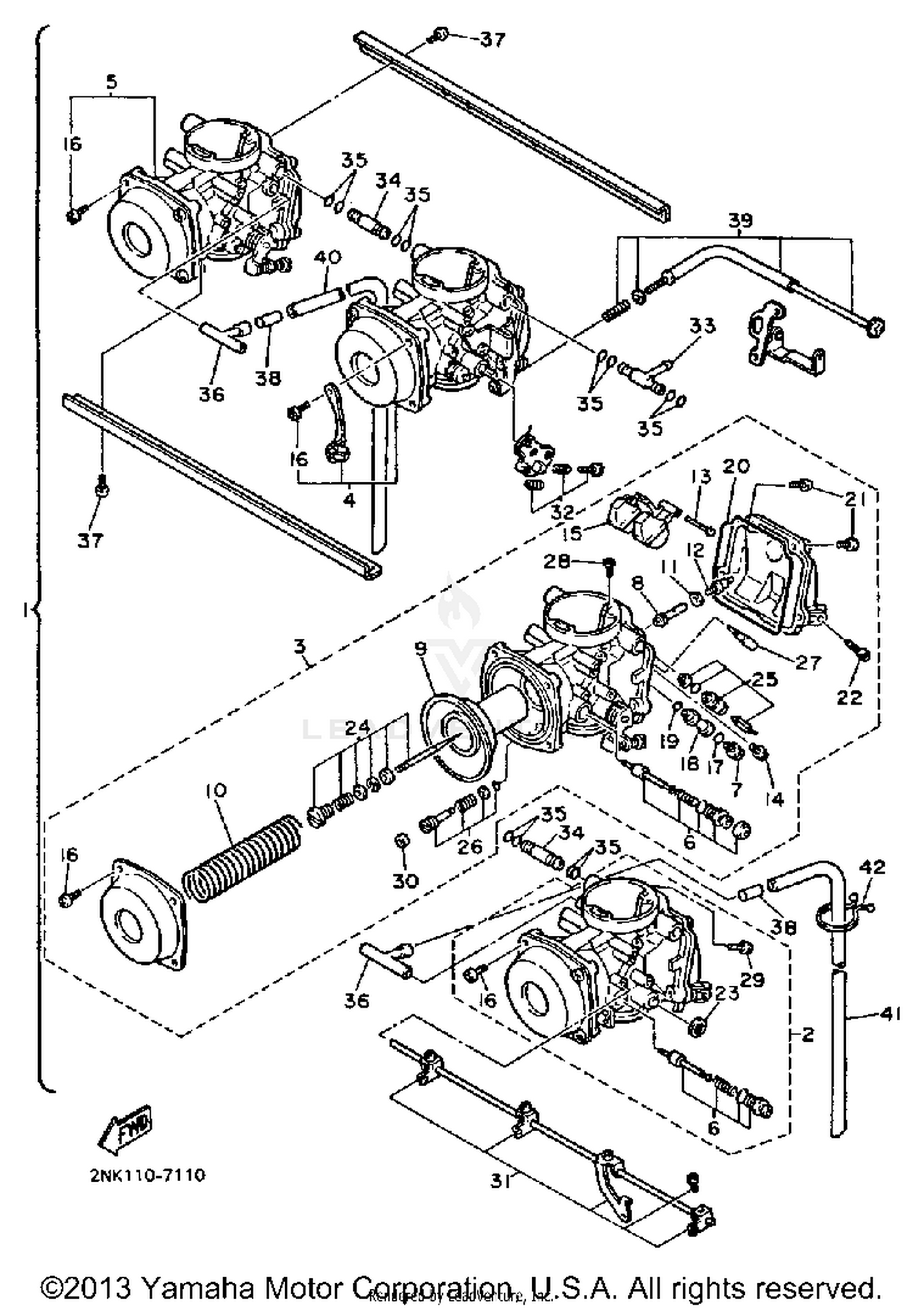

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
UNAVAILABLE IN PRICE BOOK
2NK-14900-00-00
|
|||
|
Unavailable |
|||
|
#2
CARBURETOR ASSEMBLY 1
2NK-14901-00-00
|
$219.99 | ||
|
Unavailable |
|||
|
#3
CARBURETOR ASSEMBLY 2
2NK-14902-00-00
|
$219.99 | ||
|
Unavailable |
|||
|
#4
CARBURETOR ASSEMBLY 3
2NK-14903-00-00
|
$219.99 | ||
|
Unavailable |
|||
|
#5
CARBURETOR ASSEMBLY 4
2NK-14904-00-00
|
$219.99 | ||
|
Unavailable |
|||
|
#6
STARTER SET
1FN-1410A-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#
STARTER SET
1AE-1410A-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
JET, MAIN#107.5
620-1423A-72-A0
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#105)
620-14231-21-A0
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NOZZLE, MAIN
1AE-14141-90-00
|
$17.49 | ||
|
Unavailable |
|||
|
#9
DIAPHRAGM ASSEMBLY
1AE-14940-00-00
|
$270.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, DIAPHRAGM
2LH-14933-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#11
WASHER, MAIN JET
137-14153-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
1AE-14565-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, FLOAT
353-14186-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
1FN-14565-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
FLOAT
1WG-14985-00-00
|
$56.99 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
1AE-14227-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOLDER
2LH-14261-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#19
GASKET
1AE-14237-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
1FN-14147-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLUG, DRAIN
12R-14191-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP
812-14137-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NEEDLE SET
2NK-1490J-00-00
|
$28.22 | ||
|
Unavailable |
|||
|
#
NEEDLE SET
2NK-1490J-10-00
|
$35.99 | ||
|
Unavailable |
|||
|
#25
NEEDLE VALVE SET
1FN-14107-12-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PILOT SCREW SET
12R-14105-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
JET, PILOT (#15)
3H1-14142-15-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
JET, MAIN (#125)
830-14231-25-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, PAN HEAD
98511-04016-00
Superseded by 98517-04016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
CAP
3F9-14118-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
STARTER LEVR SET, 1
1FN-1490L-00-00
|
$141.99 | ||
|
Unavailable |
|||
|
#32
STOP SCREW SET
1FN-1490K-01-00
|
$4.15 | ||
|
Unavailable |
|||
|
#33
NIPPLE
1HX-14251-00-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
NIPPLE
16H-14251-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
O-RING
36Y-14147-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIPE
1AE-14197-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Unavailable |
|||
|
#38
RING
1FN-14918-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
THROTTLE SCREW SET
2LE-14103-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#40
PIPE
2NK-14197-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#41
PIPE
2NK-14197-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#42
CLAMP
90464-10075-00
Superseded by 90464-09M31-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
