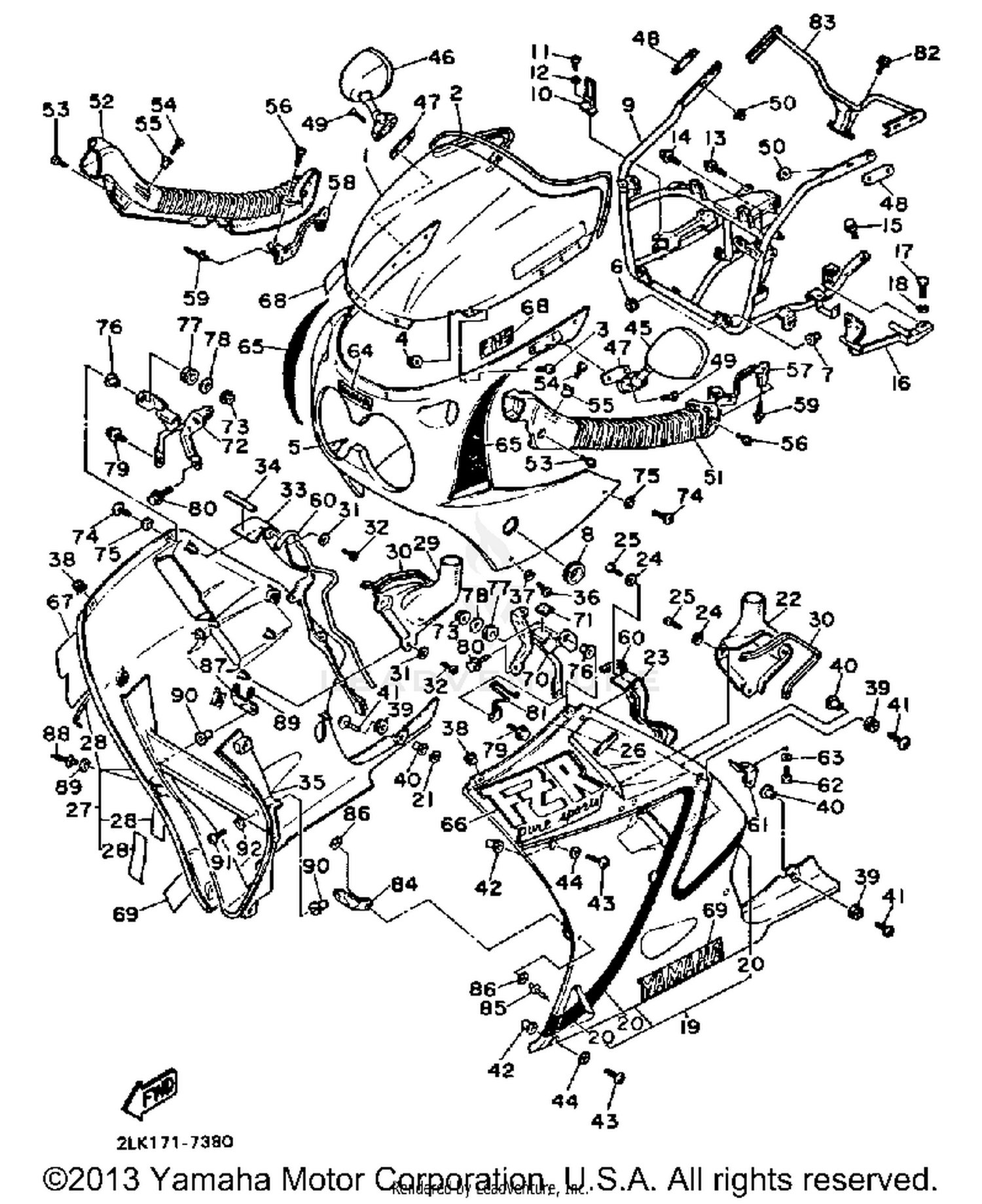

Fairing Cowling Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WINDSHIELD
2LJ-28381-00-00
|
$297.99 | ||
|
Unavailable |
|||
|
#2
MOLE 4
36Y-28348-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, ROUND HEAD
90150-05020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, FLANGE
95706-05500-00
Superseded by 95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BODY, FRONT UPPER 1
2GH-2835G-00-GE
|
$626.99 | ||
|
Unavailable |
|||
|
#6
GROMMET
90480-14229-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
90179-06500-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GROMMET
90480-35526-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#9
STAY 1
2GH-28356-00-00
|
$413.99 | ||
|
Unavailable |
|||
|
#10
PROTECTOR 1
2GH-2834V-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#11
SCREW,PAN
98516-06012-00
Superseded by 98517-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95026-08040-00
Superseded by 95027-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (95026-08025-00)
99999-01790-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95816-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET
2GH-21238-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#17
BOLT
97026-06012-00
Superseded by 97017-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#19
BODY FRONT LOWER 1
2GH-W283E-00-0X
|
$1,327.99 | ||
|
Unavailable |
|||
|
#20
GRAPHICSET3 COWLINCOWLING
2GH-2836V-00-00
|
$159.99 | ||
|
Unavailable |
|||
|
#21
WASHER, PLATE
90201-062J7-00
|
$4.40 | ||
|
Unavailable |
|||
|
#22
DUCT 3
2GH-2838T-00-00
|
$81.99 | ||
|
Unavailable |
|||
|
#23
PLATE 1
2GH-28396-00-00
|
$91.99 | ||
|
Unavailable |
|||
|
#24
WASHER
92906-05200-00
Superseded by 92907-05200-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, TAPPING
97706-50614-00
Superseded by 97707-50614-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PROTECTOR
1JK-21652-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#27
BODY FRONT LOWER 2
2GH-W283F-00-0X
|
$556.99 | ||
|
Unavailable |
|||
|
#28
GRAPHIC SET 4, COWLING
2GH-2836W-00-00
|
$142.99 | ||
|
Unavailable |
|||
|
#29
DUCT 4
2GH-2838U-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#30
MOLE 3
2GH-28347-00-00
|
$4.40 | ||
|
Unavailable |
|||
|
#31
WASHER
92906-05200-00
Superseded by 92907-05200-00
|
$4.20 | ||
|
Unavailable |
|||
|
#32
SCREW, TAPPING
97706-50614-00
Superseded by 97707-50614-00
|
$6.49 | ||
|
Unavailable |
|||
|
#33
PLATE 2
2GH-28397-00-00
|
$74.99 | ||
|
Unavailable |
|||
|
#34
MOLD 1
2GH-28345-00-00
|
$4.05 | ||
|
Unavailable |
|||
|
#35
PANEL, INNER 1
2GH-2836K-00-GE
|
$321.99 | ||
|
Unavailable |
|||
|
#36
BOLT,HEX. SOCKET BUT
90110-05079-00
Superseded by 90111-05059-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, PLATE
90202-05180-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT, SPRING
90183-05024-00
Superseded by 90183-051A0-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#39
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
COLLAR
90387-067N5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, HEXAGON SOCKET HEAD
90110-06083-00
Superseded by 90110-06202-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
NUT
90179-05271-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, HEX. SOCKET BUTTON
90149-05244-00
Superseded by 90111-05026-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
WASHER, PLATE
90202-05180-00
|
$9.49 | ||
|
Unavailable |
|||
|
#45
REAR VIEW MIRROR ASSY (LEFT)
2GH-26280-00-00
Superseded by 3HE-26280-01-00
|
$163.99 | ||
|
Unavailable |
|||
|
#46
MIRROR ASSEMBLYASSY (RIGHT)
2GH-26290-00-00
|
$84.99 | ||
|
Unavailable |
|||
|
#47
PLATE, MIRROR FITTING 1
1AE-26298-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
PLATE, MIRROR FITTING
3CV-26299-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
SCREW, FLAT HEAD
98706-06030-00
Superseded by 98707-06030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
NUT, CROWN
90176-06055-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
DUCT 1
2GH-2838N-00-00
|
$82.99 | ||
|
Unavailable |
|||
|
#52
DUCT 2
2GH-2838R-00-00
|
$69.48 | ||
|
Unavailable |
|||
|
#53
SCREW, BINDING
90154-06046-00
|
$0.85 | ||
|
Unavailable |
|||
|
#54
SCREW, BINDING
90149-06184-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#55
COLLAR
90387-060A7-00
Superseded by 90387-06113-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#56
SCREW, BINDING
90154-06043-00
|
$2.10 | ||
|
Unavailable |
|||
|
#57
BRACKET 12
2GH-2833J-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#58
BRACKET 13
2GH-2833K-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#59
RIVET, BLIND
90267-40105-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#60
MOLD 2
2GH-28346-00-00
|
$8.23 | ||
|
Unavailable |
|||
|
#61
BRACKET 2
2GH-2836F-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#62
BOLT(3JP)
97011-06010-00
Superseded by 97017-06010-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#63
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#64
EMBLEM, YAMAHA
99234-00020-00
Superseded by 99244-00080-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#65
GRPHC SET, COWLING
2GH-28390-00-00
|
$46.56 | ||
|
Unavailable |
|||
|
#66
EMBLEM
2GH-28328-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#67
EMBLEM
2GH-28368-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#68
EMBLEM
2KR-28368-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#69
EMBLEM, YAMAHA
99234-00070-00
Superseded by 99244-00280-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
STAY, LEG SHIELD L
2GH-28321-01-00
|
$52.99 | ||
|
Unavailable |
|||
|
#71
DAMPER
2H7-21628-00-00
Superseded by 22F-2139X-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#72
STAY, LEG SHIELD R
2GH-28322-00-00
|
$50.99 | ||
|
Unavailable |
|||
|
#73
NUT, FLANGE
95706-06500-00
Superseded by 95707-06500-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#74
SCREW (1FN)
90149-06218-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#75
WASHER, PLATE (122-21725-00)
90202-07015-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#76
COLLAR
90387-071E0-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#77
GROMMET
90480-14323-00
Superseded by 90480-14329-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#78
WASHER, PLATE
90201-06059-00
Superseded by 90201-06057-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#79
BOLT, FLANGE
95816-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#80
BOLT, FLANGE
95026-06012-00
Superseded by 95027-06012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#81
HOLDER, HI-TENS.CRDHIGH TENSION
2GH-21362-00-00
|
$21.73 | ||
|
Unavailable |
|||
|
#82
BOLT, FLANGE
95026-06012-00
Superseded by 95027-06012-00
|
$3.65 | ||
|
Unavailable |
|||
|
#83
STAY, MIRROR 1
2GH-2831W-00-00
|
$131.99 | ||
|
Unavailable |
|||
|
#85
RIVET, BLIND
90267-40029-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#86
WASHER, PLATE
90201-047A2-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#87
BRACKET 10
2GH-2833G-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#88
RIVET, BLIND
90267-40029-00
|
$7.49 | ||
|
Unavailable |
|||
|
#89
WASHER, PLATE
90201-047A2-00
|
$3.15 | ||
|
Unavailable |
|||
|
#90
NUT
90179-05523-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#91
SCREW
90149-05224-00
Superseded by 90149-05299-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#92
WASHER, PLATE
90202-05180-00
|
$9.49 | ||
|
Unavailable |
|||
|
#884
BRACKET 9
2GH-2833F-00-00
|
$7.99 | ||
|
Unavailable |
|||
