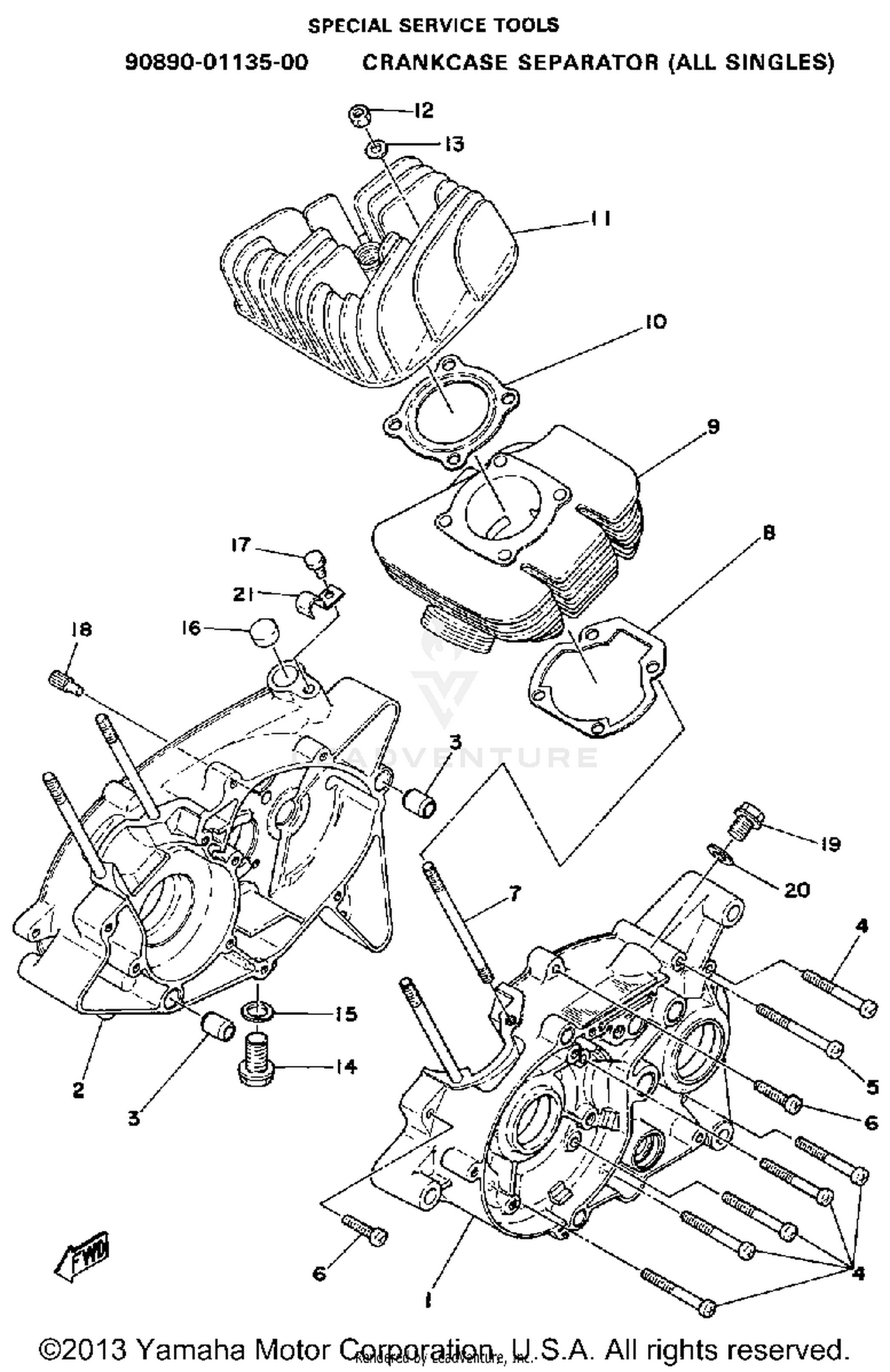

Crankcase - Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE 1
367-15111-01-98
|
$136.99 | ||
|
Unavailable |
|||
|
#2
CRANKCASE 2
367-15121-07-00
|
$193.99 | ||
|
Unavailable |
|||
|
#3
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD
98580-06550-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW,PANHEAD
98580-06055-00
Superseded by 98580-06555-00
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, STUD
90116-06026-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET,CYLINDER
367-11351-00-00
Superseded by 367-11351-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CYLINDER 1
367-11311-00-00
|
$180.99 | ||
|
Unavailable |
|||
|
#10
GASKET, CYLINDER HEAD 1 (80E)
1F5-11181-00-00
Superseded by 2F4-11181-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
HEAD, CYLINDER 1
367-11111-01-R4
|
$93.99 | ||
|
Unavailable |
|||
|
#12
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG, STRAIGHT SCREW
90340-12005-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET
90430-12207-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG
90338-16015-00
Superseded by 90338-16029-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT(3JP)
97011-06010-00
Superseded by 97017-06010-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
STOPPER
492-15387-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#19
PLUG, STRAIGHT SCRW
90340-10003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET
90430-10031-00
Superseded by 90430-10171-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP
90462-06009-00
Superseded by 90462-05005-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
