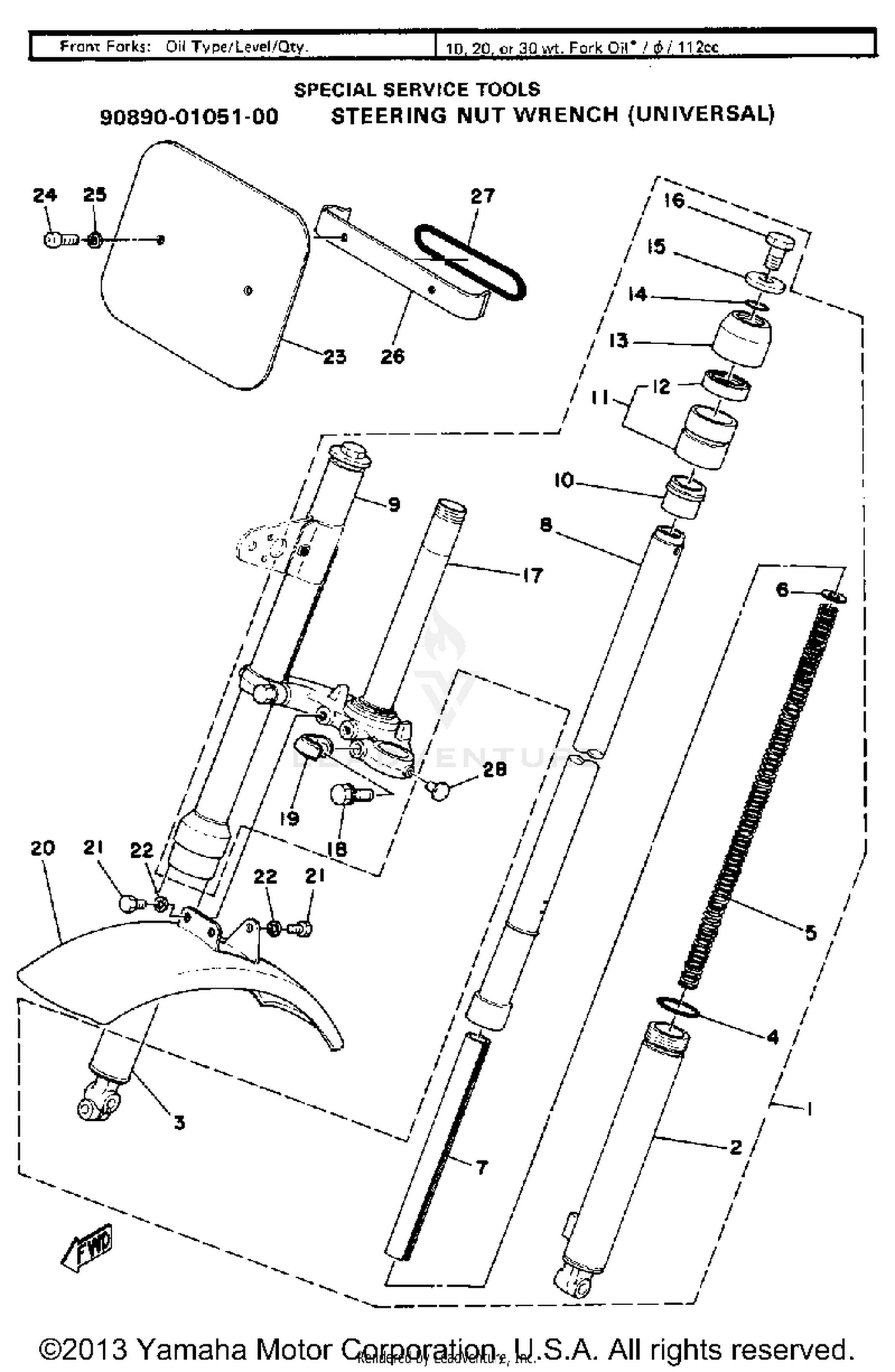

Front Fork - Front Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
2F4-23101-60-35
|
$134.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
374-23126-00-35
|
$53.99 | ||
|
Unavailable |
|||
|
#3
TUBE, OUTER 2
2F4-23136-60-35
|
$49.72 | ||
|
Unavailable |
|||
|
#4
O-RING
207-23147-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, FRONT FORK
367-23141-61-00
|
$11.86 | ||
|
Unavailable |
|||
|
#6
WASHER, SPRING UPR
290-23149-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#7
SPACER, OIL LOCK
367-23166-61-00
|
$4.84 | ||
|
Unavailable |
|||
|
#8
TUBE, INNER 1
439-23124-00-00
|
$246.99 | ||
|
Unavailable |
|||
|
#9
TUBE, INNER 2
367-23134-61-00
|
$58.95 | ||
|
Unavailable |
|||
|
#10
METAL, SLIDE 1
109-23125-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#11
OUTER NUT
290-23150-01-00
|
$90.99 | ||
|
Unavailable |
|||
|
#12
OIL SEAL
109-23145-01-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL, DUST
290-23144-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET
307-23114-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, CAP
207-23112-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, CAP
395-23111-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#17
UNDER BRACKET
367-23340-60-33
|
$101.99 | ||
|
Unavailable |
|||
|
#18
BOLT 1
5J0-23346-00-00
Superseded by 122-23346-02-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOLDER, CABLE 2
2A3-23319-00-00
|
$3.16 | ||
|
Unavailable |
|||
|
#20
FENDER, FRONT
288-21510-01-20
|
$58.99 | ||
|
Unavailable |
|||
|
#21
BOLT(3JP)
97011-06010-00
Superseded by 97017-06010-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLATE, NUMBER
288-23485-00-00
|
$13.06 | ||
|
Unavailable |
|||
|
#24
SCREW, PAN HEAD (92503-06010-00
98580-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Unavailable |
|||
|
#26
STAY, PLATE
288-23486-00-00
|
$5.82 | ||
|
Unavailable |
|||
|
#27
BAND
288-23489-00-00
|
$4.00 | ||
|
Unavailable |
|||
|
#28
PLUG, SPEC''L SHAPE
90338-04010-00
|
$1.75 | ||
|
Unavailable |
|||
