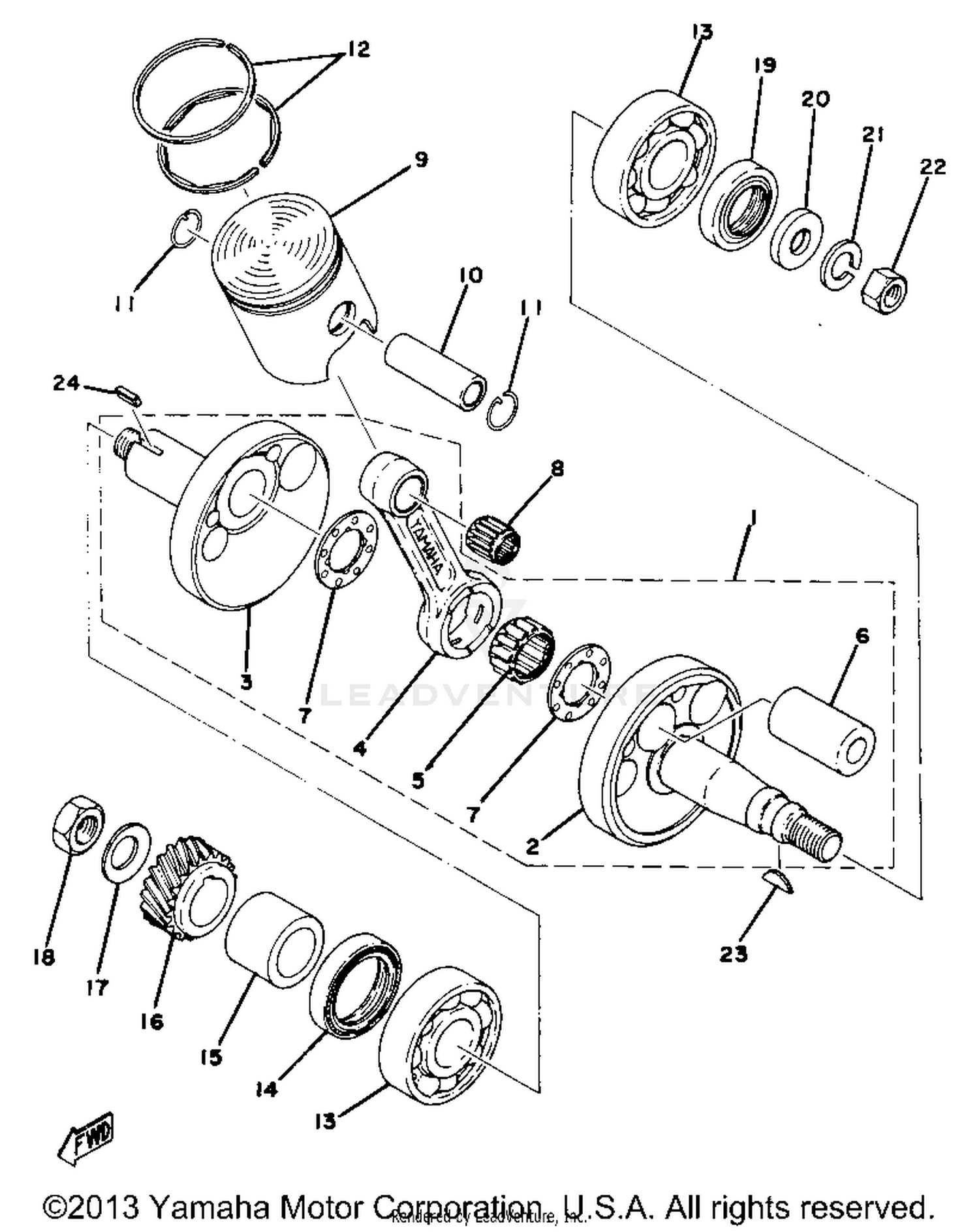

Crankshaft - Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSEMBLY
1K9-11400-00-00
|
$479.99 | ||
|
Unavailable |
|||
|
#2
CRANK 1
598-11412-00-00
|
$113.99 | ||
|
Unavailable |
|||
|
#3
CRANK 2
598-11422-00-00
|
$86.99 | ||
|
Unavailable |
|||
|
#4
ROD, CONNECTING (3R1-11651-00
3R1-11651-01-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING CYLINDER #10
93310-418T0-00
Superseded by 93310-418C4-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, CRANK 1
257-11681-00-00
Superseded by 257-11681-10-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
90209-18112-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
93310-11268-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PISTON STD
367-11631-11-96
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON 2 O/S 0.50
367-11636-11-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON 1 O/S 0.25
367-11635-11-00
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, PISTON
527-11633-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP
93450-13022-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PISTON RINGSET STD
367-11610-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RINGSET 1ST
367-11610-10-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RINGSET 2ND
367-11610-20-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RINGSET 3RD
367-11610-30-00
|
$42.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 4TH
367-11610-40-00
|
$55.99 | ||
|
Unavailable |
|||
|
#13
BEARING
93306-20458-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL, SW-TYPE (93103-28100)
93103-28126-00
Superseded by 93103-28011-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-205E9-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, PRI DRIVE
353-16111-01-00
|
$71.99 | ||
|
Unavailable |
|||
|
#17
WASHER, CONICAL SPRING
90208-12015-00
Superseded by 90208-12800-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
90179-12244-00
Superseded by 90179-12659-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL
93102-20009-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-12535-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92901-12100-00
Superseded by 92990-12100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
90170-12175-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
KEY, WOODRUFF
90280-03017-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
KEY, STRAIGHT
90282-05005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
