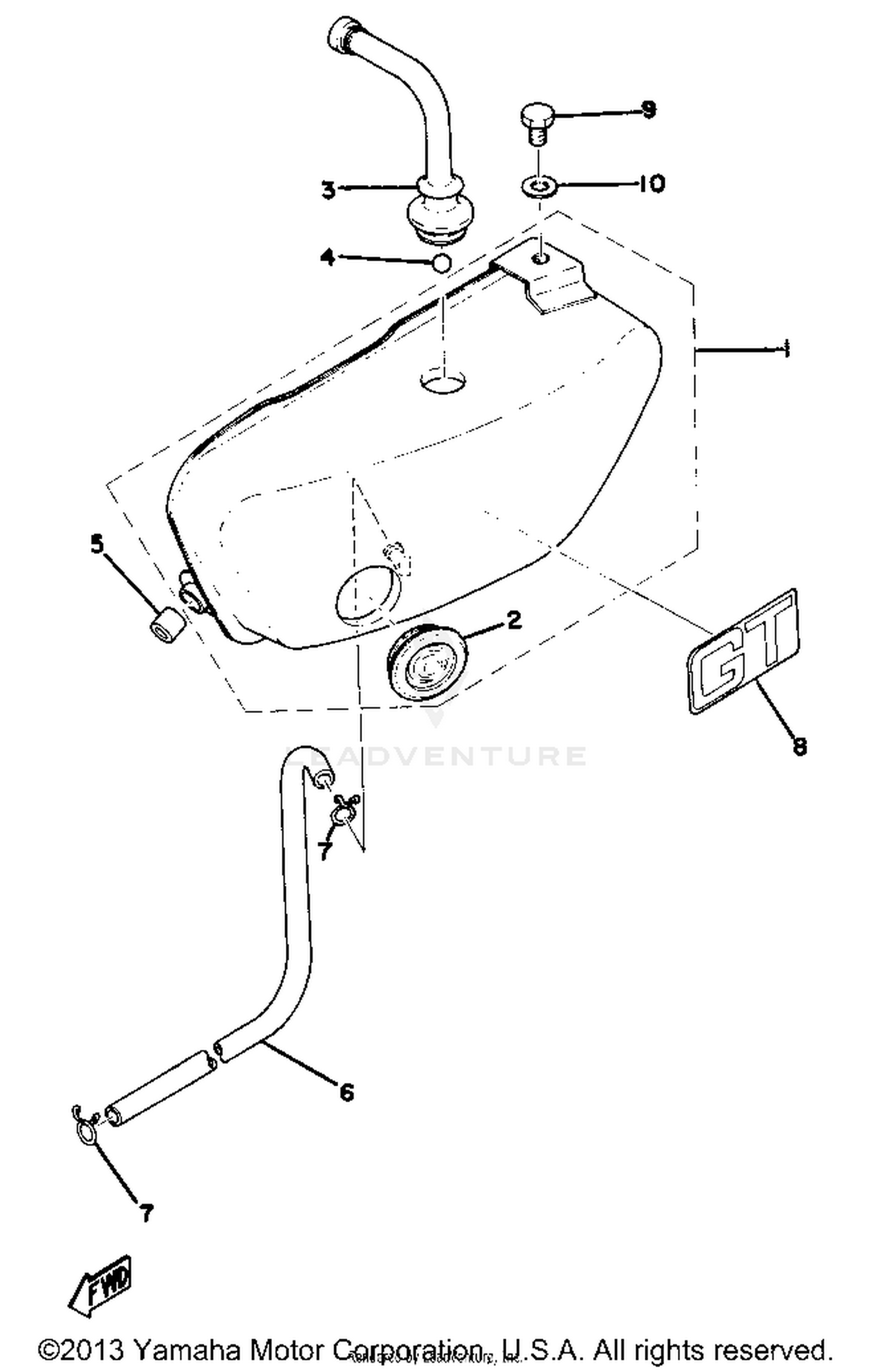

Oil Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL TANK ASSEMBLY
367-21705-00-20
|
$38.99 | ||
|
Unavailable |
|||
|
#2
GAUGE, LEVEL
214-21761-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BODY, CAP
367-21771-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#4
BALL
288-24684-00-00
|
$2.85 | ||
|
Unavailable |
|||
|
#5
DAMPER, LOCATING 1
353-21778-00-00
|
$2.75 | ||
|
Unavailable |
|||
|
#6
HOSE (L675)
90445-09111-00
Superseded by 90445-090F6-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP
90467-08003-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
EMBLEM 7
374-21787-30-00
|
$2.37 | ||
|
Unavailable |
|||
|
#9
BOLT
97013-06012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
