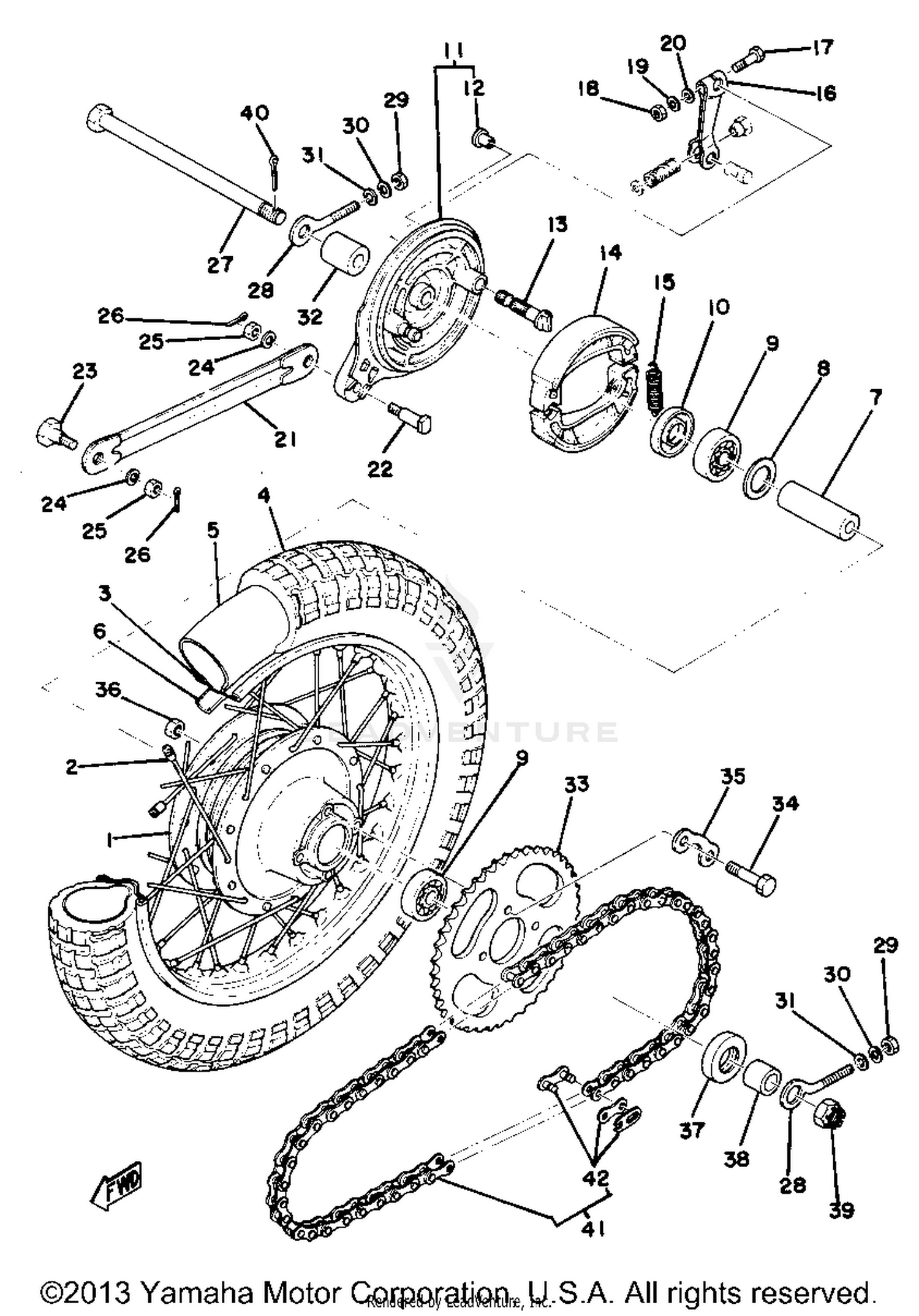

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
288-25311-00-00
|
$53.55 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, REAR
367-25304-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
RIM 1.40X14
94414-14077-00
|
$142.99 | ||
|
Unavailable |
|||
|
#4
275-14 IRC TRIALS
94127-14477-00
|
$32.99 | ||
|
Unavailable |
|||
|
#5
TUBE
94227-14196-00
Superseded by 94227-14102-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAND, RIM (1.60-14)
94327-14076-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER
90560-12139-00
|
$7.99 | ||
|
Unavailable |
|||
|
#8
FLANGE, SPACER
109-25315-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93306-30101-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL
93106-20033-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRAKE SHOE PLT ASSEMBLY
393-25320-10-38
|
$47.99 | ||
|
Unavailable |
|||
|
#12
GROMMET
90480-10068-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAMSHAFT
122-25351-02-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRAKE SHOE KIT
296-W2536-00-00
Superseded by 4KN-W253E-11-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, TENSION
90506-16150-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
LEVER, CAMSHAFT
122-25355-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
90101-06278-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAR, TENSION
353-25371-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#22
BOLT
90109-08183-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
90109-08368-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
AXLE, WHEEL
367-25381-00-00
Superseded by 367-25381-01-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PULLER, CHAIN
102-25389-00-00
Superseded by 3AC-2538G-10-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Unavailable |
|||
|
#30
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#31
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Unavailable |
|||
|
#32
COLLAR
90387-12412-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPROCKET, DRVN 41T (288-25441-1
5J1-25441-20-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT
90109-08319-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER
2A3-25412-00-00
Superseded by 2AL-25412-00-00
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT
90170-08158-00
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#37
OIL SEAL, SO-TYPE
93104-18006-00
|
$6.99 | ||
|
Unavailable |
|||
|
#38
COLLAR
90387-120F9-00
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT, CASTLE
90171-12005-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
420M-96RD
94580-52096-00
Superseded by 9Y580-52095-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
JOINT, CHAIN(DID 420M)
94680-52001-00
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
