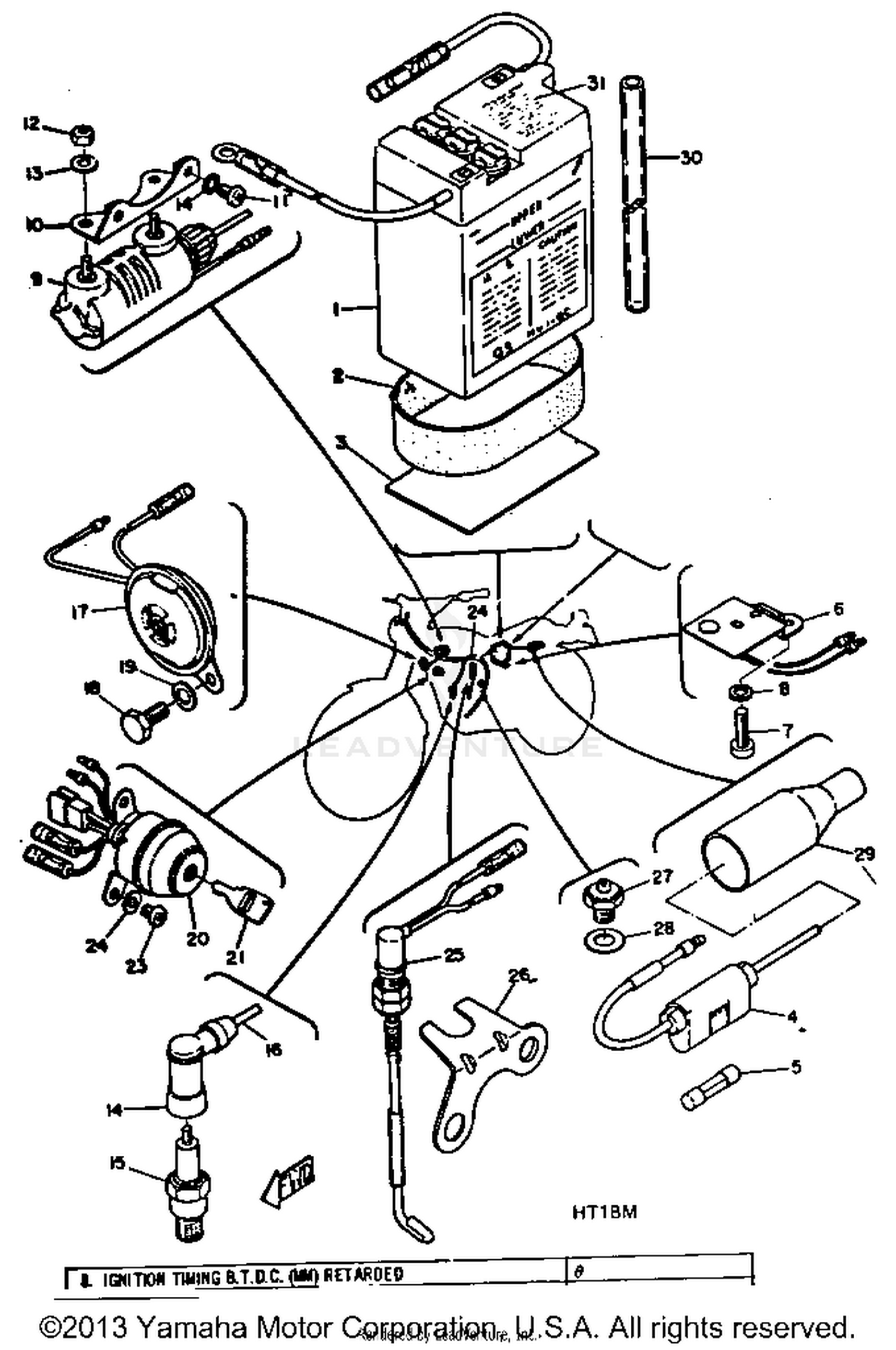

Electrical Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
6N2-2A-3 GS BATTERY
BTG-6N22A-30-00
Superseded by 6N2-2A300-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#
CAP, BATTERY
104-82111-10-00
|
$0.90 | ||
|
Unavailable |
|||
|
#2
BAND, BATTERY
214-82124-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#3
SEAT, BATTERY
214-82122-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#4
FUSE HOLDER ASSY
55K-82150-01-00
Superseded by 55K-82150-02-00
|
$14.49 | ||
|
Unavailable |
|||
|
#5
FUSE (12V-10A)
116-82151-00-00
Superseded by 1A0-82151-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
RECTIFIER ASSEMBLY
315-81970-61-00
|
$37.99 | ||
|
Unavailable |
|||
|
#7
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#9
IGNITION COIL ASSEMBLY
248-82310-11-00
|
$87.99 | ||
|
Unavailable |
|||
|
#10
BRACKET, IGN COIL
248-82316-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#11
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG CAP ASSY
56J-82370-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BR8HS NGK SCREW TOP
NGK-B8HS0-00-00
Superseded by BR8-HS000-00-00
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SPARK PLUG B9EN
94701-00016-00
|
$2.70 | ||
|
Unavailable |
|||
|
#16
CORD, HIGHT TENSION 1
137-82341-01-00
|
$17.99 | ||
|
Unavailable |
|||
|
#17
HORN
276-83371-10-00
|
$14.62 | ||
|
Unavailable |
|||
|
#18
BOLT
97013-06012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLAIN
92990-06200-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#20
MAIN SWITCH ASSEMBLY
233-82508-20-00
|
$22.86 | ||
|
Unavailable |
|||
|
#21
UNAVAILABLE IN PRICE BOOK
214-82511-00-00
|
|||
|
Unavailable |
|||
|
#22
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Unavailable |
|||
|
#24
WIRE HARNESS ASSEMBLY
277-82590-20-00
|
$15.12 | ||
|
Unavailable |
|||
|
#25
STOP SWITCH ASSEMBLY
248-82530-02-00
|
$40.99 | ||
|
Unavailable |
|||
|
#26
STAY, STOP SWITCH
248-82539-00-00
|
$3.30 | ||
|
Unavailable |
|||
|
#27
REVERSE SWITCH ASSEMBLY
136-82540-00-00
Superseded by 136-82540-03-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
37R-82543-00-00
Superseded by 90201-12790-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
COVER, CONNECTER
214-82599-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#30
PIPE, BREATHER
170-82112-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#31
LABEL, BATTERY
118-82141-09-00
Superseded by 40A-82141-G0-00
|
$0.85 | ||
|
Unavailable |
|||
