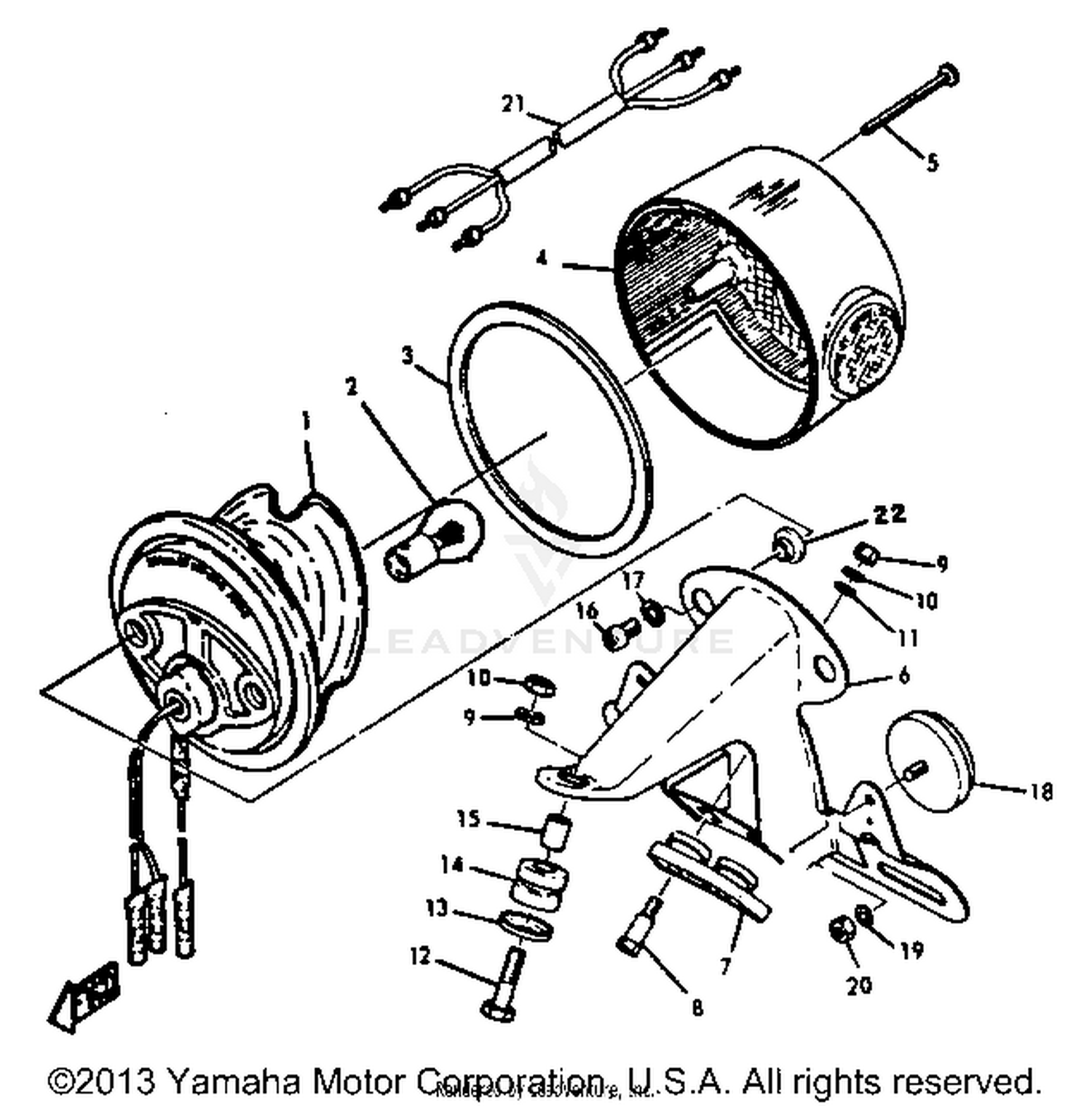

1971 Yamaha HT1 TAIL LAMP (HT1B) OEM Parts Diagram
Air & Fuel
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BASE, TAILLIGHT
275-84511-61-00
|
$28.99 | ||
|
Unavailable |
|||
|
#
TAILLIGHT UNIT ASSEMBLY
275-84510-61-00
|
$67.99 | ||
|
Unavailable |
|||
|
#2
BULB 6V21CP(1154)
122-84514-30-00
Superseded by 122-84514-30-XX
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, LENS
275-84523-60-00
|
$9.20 | ||
|
Unavailable |
|||
|
#4
LENS, TAILLIGHT
275-84521-60-00
|
$15.18 | ||
|
Unavailable |
|||
|
#5
SCREW, PAN HEAD
98501-04050-00
Superseded by 98507-04050-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, LICENSE
444-84751-60-20
|
$47.99 | ||
|
Unavailable |
|||
|
#7
DAMPER
214-84553-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
90109-06017-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
97321-06025-00
Superseded by 97017-06025-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
90209-06095-00
Superseded by 90209-06012-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
GROMMET
90480-14023-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-065L7-00
Superseded by 90387-06026-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
479-84526-00-00
|
$3.95 | ||
|
Unavailable |
|||
|
#17
WASHER, SPECIAL
2H7-84754-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
REFLECTOR, FRONT 1
278-85111-00-00
|
$7.68 | ||
|
Unavailable |
|||
|
#19
WASHER, SPRING
92990-05100-00
|
$0.28 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
95380-05600-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CORD, TAILLIGHT
277-84517-60-00
|
$5.24 | ||
|
Unavailable |
|||
|
#22
DAMPER
275-84527-60-00
|
$6.68 | ||
|
Unavailable |
|||
