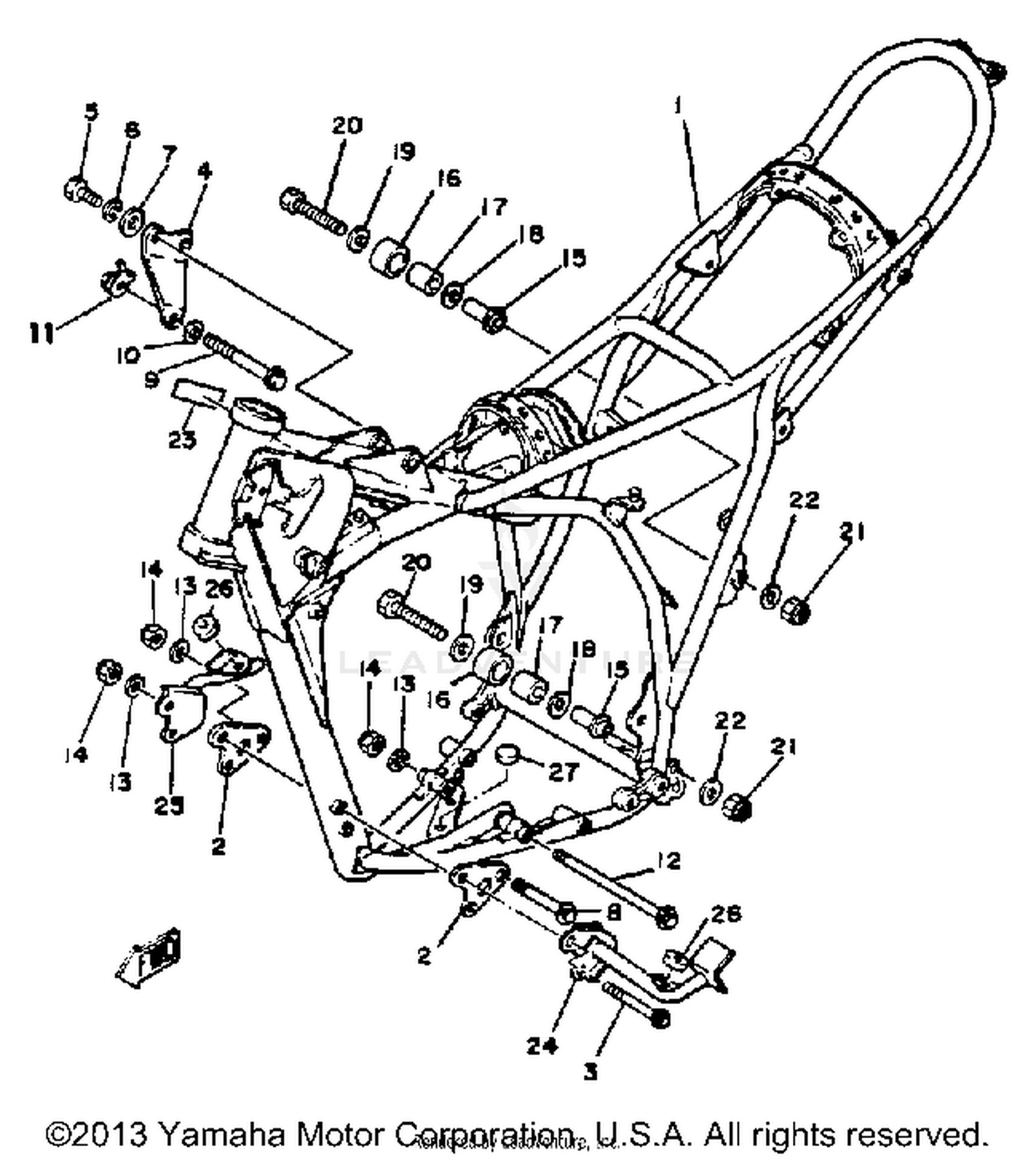

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
4V5-21110-01-33
|
$587.99 | ||
|
Unavailable |
|||
|
#2
BRACKET, FRT UPR 1
3R4-21415-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#3
BOLT, FLANGE
95811-08080-00
Superseded by 95817-08080-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, REAR UPR 1
4V4-21425-00-00
|
$25.04 | ||
|
Unavailable |
|||
|
#5
BOLT
97013-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95811-08075-00
Superseded by 95817-08075-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
95811-10055-00
Superseded by 95817-10055-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLAIN
92990-10200-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOLDER, NUT
4V6-21167-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#12
BOLT, FLANGE
95811-08170-00
|
$5.44 | ||
|
Unavailable |
|||
|
#13
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, SELF-LOCKING
90185-08089-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHAFT
2K7-2148A-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
TENSIONER
5X6-22178-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BUSH
4V4-22184-00-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-13202-00
Superseded by 90201-13013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-08753-00
Superseded by 90201-081R9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT (661)
97313-08055-00
Superseded by 97013-08055-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-08638-00
|
$2.80 | ||
|
Unavailable |
|||
|
#23
UNAVAILABLE IN PRICE BOOK
3R-42139-W0-00
|
|||
|
Unavailable |
|||
|
#24
GUARD, ENGINE 1
4V5-2147A-00-33
|
$58.99 | ||
|
Unavailable |
|||
|
#25
GUARD, ENGINE 2
4V5-2147E-00-33
|
$58.99 | ||
|
Unavailable |
|||
|
#26
SEAL 1
2J5-21732-00-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#27
DAMPER, LOCATING 1
22W-24181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
