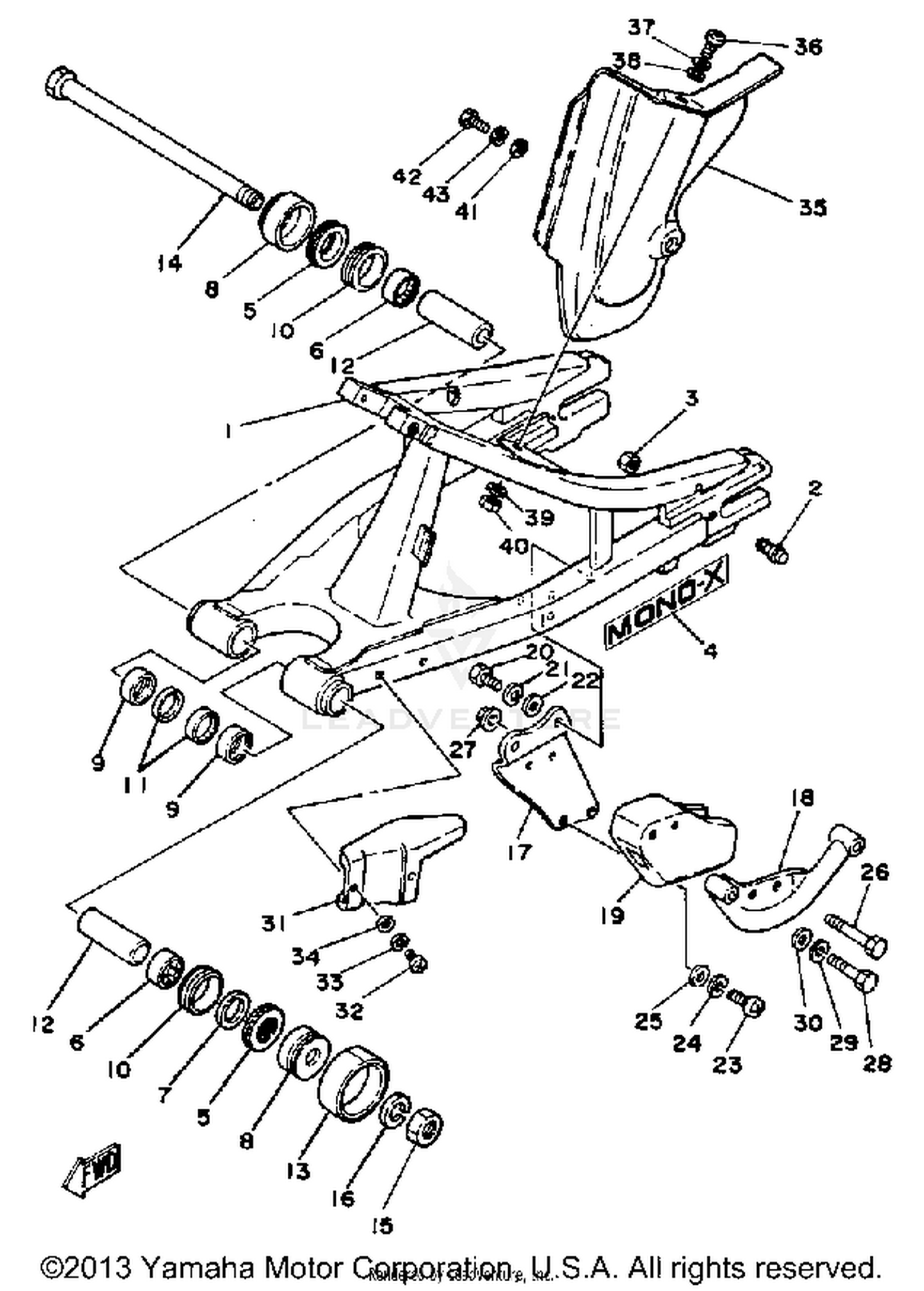

Swing Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
4V6-22110-00-35
|
$447.99 | ||
|
Unavailable |
|||
|
#2
BOLT
90109-08599-00
|
$5.49 | ||
|
Unavailable |
|||
|
#3
NUT, FLANGE
95701-08500-00
Superseded by 95704-08500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
REFLECTOR (250H)
4V4-2218A-00-00
|
$6.06 | ||
|
Unavailable |
|||
|
#5
BEARING
93342-22208-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING, CYLINDER.#17
93317-22214-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHIM
648-45533-00-03
Superseded by 90201-22284-04
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, THRUST 2
3R4-22129-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH, SPEC''L NYLON
90386-22097-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL (35-41-8)
93108-35004-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL, SDO-TYPE
93109-22018-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BUSH, SOLID
90380-16077-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL, GUARD
431-22151-03-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHAFT, PIVOT
3R4-22141-00-00
Superseded by 5X6-22141-01-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
90170-16111-00
|
$9.99 | ||
|
Unavailable |
|||
|
#16
WASHER, PLATE
90201-160F6-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
ARM, TENSIONER
2X4-22179-00-00
|
$18.46 | ||
|
Unavailable |
|||
|
#18
GUARD, CHAIN
3R5-22153-00-00
|
$95.99 | ||
|
Unavailable |
|||
|
#19
SUPPORT, CHAIN
2X4-22199-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN HEAD
98580-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT (661)
97313-06050-00
Superseded by 97013-06050-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#27
UNAVAILABLE IN PRICE BOOK (9570
95712-06300-00
|
|||
|
Unavailable |
|||
|
#28
BOLT
97313-08035-00
Superseded by 97013-08035-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#30
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Unavailable |
|||
|
#31
PROTECTOR, CHAIN
3R4-22147-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#35
CASE, CHAIN
4V5-22311-00-00
|
$77.03 | ||
|
Unavailable |
|||
|
#36
SCREW, PAN HEAD
98580-06020-00
|
$7.49 | ||
|
Unavailable |
|||
|
#37
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#38
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Unavailable |
|||
|
#39
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Unavailable |
|||
|
#42
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#43
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
