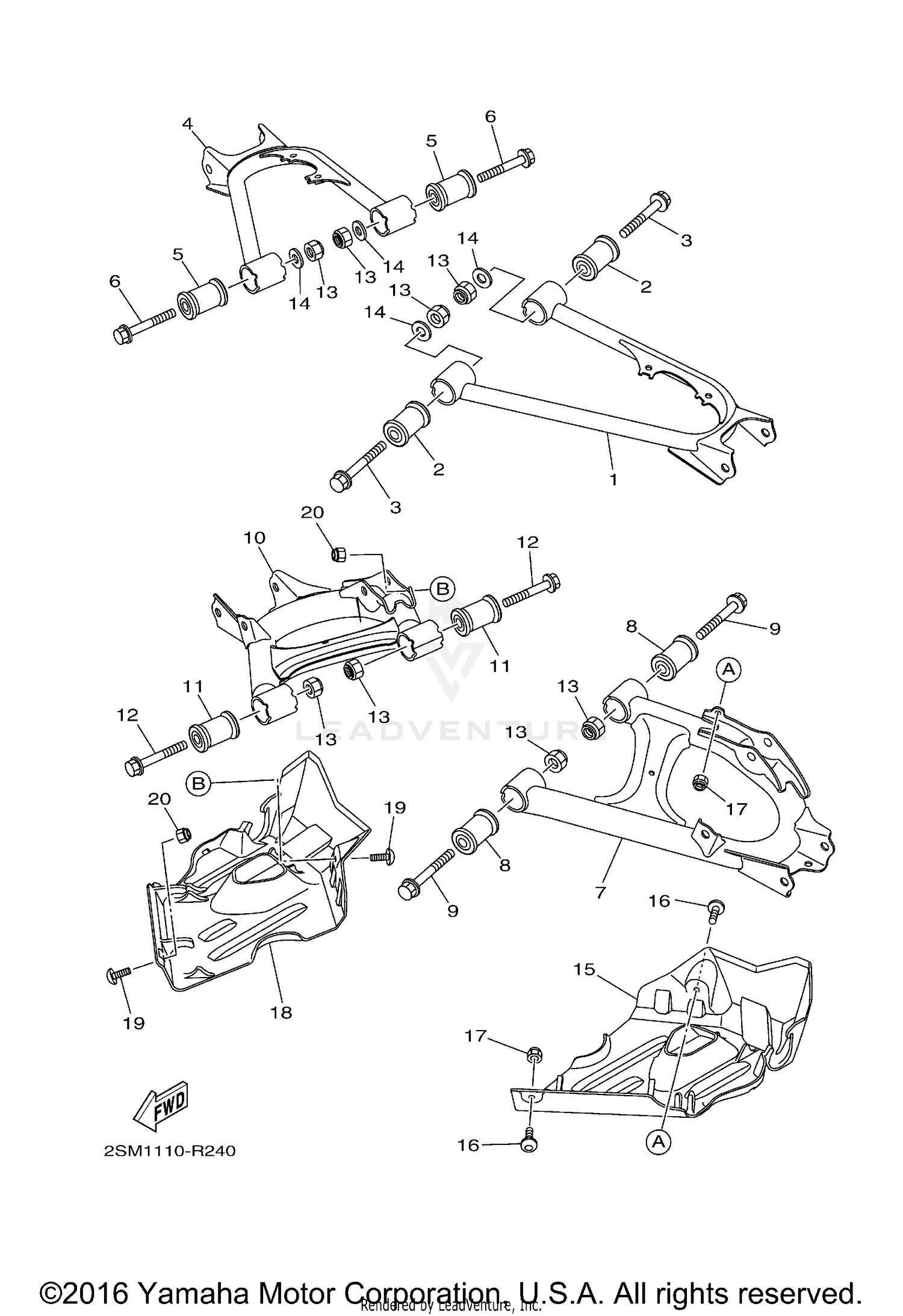

Rear Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ARM, REAR 1
1HP-F2171-00-00
Superseded by 1HP-F2171-01-00
|
$39.99 | ||
|
Unavailable |
|||
|
#2
BUSH
1HP-F3526-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
90105-10011-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
ARM, REAR 2
1HP-F2172-00-00
Superseded by 1HP-F2172-01-00
|
$40.99 | ||
|
Unavailable |
|||
|
#5
BUSH
1HP-F3526-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#6
BOLT, FLANGE
90105-10011-00
|
$11.99 | ||
|
Unavailable |
|||
|
#7
ARM 1
1HP-F217M-00-00
Superseded by 1HP-F217M-01-00
|
$69.99 | ||
|
Unavailable |
|||
|
#8
BUSH
1HP-F3526-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#9
BOLT, FLANGE
90105-10011-00
|
$11.99 | ||
|
Unavailable |
|||
|
#10
ARM 2
1HP-F217N-00-00
Superseded by 1HP-F217N-01-00
|
$69.99 | ||
|
Unavailable |
|||
|
#11
BUSH
1HP-F3526-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#12
BOLT, FLANGE
90105-10011-00
|
$11.99 | ||
|
Unavailable |
|||
|
#13
NUT, SELF-LOCKING
90185-10012-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-10035-00
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, THRUST 1
1HP-F2128-00-00
Superseded by 1HP-F2128-01-00
|
$21.99 | ||
|
Unavailable |
|||
|
#16
BOLT,HEX. SOCKET BUTTON
90111-06814-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, NYLON
95702-06300-00
Superseded by 95707-06300-00
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, THRUST 2
1HP-F2129-00-00
Superseded by 1HP-F2129-01-00
|
$10.99 | ||
|
Unavailable |
|||
|
#19
BOLT,HEX. SOCKET BUTTON
90111-06814-00
|
$3.69 | ||
|
Unavailable |
|||
|
#20
NUT, NYLON
95702-06300-00
Superseded by 95707-06300-00
|
$3.43 | ||
|
Unavailable |
|||
