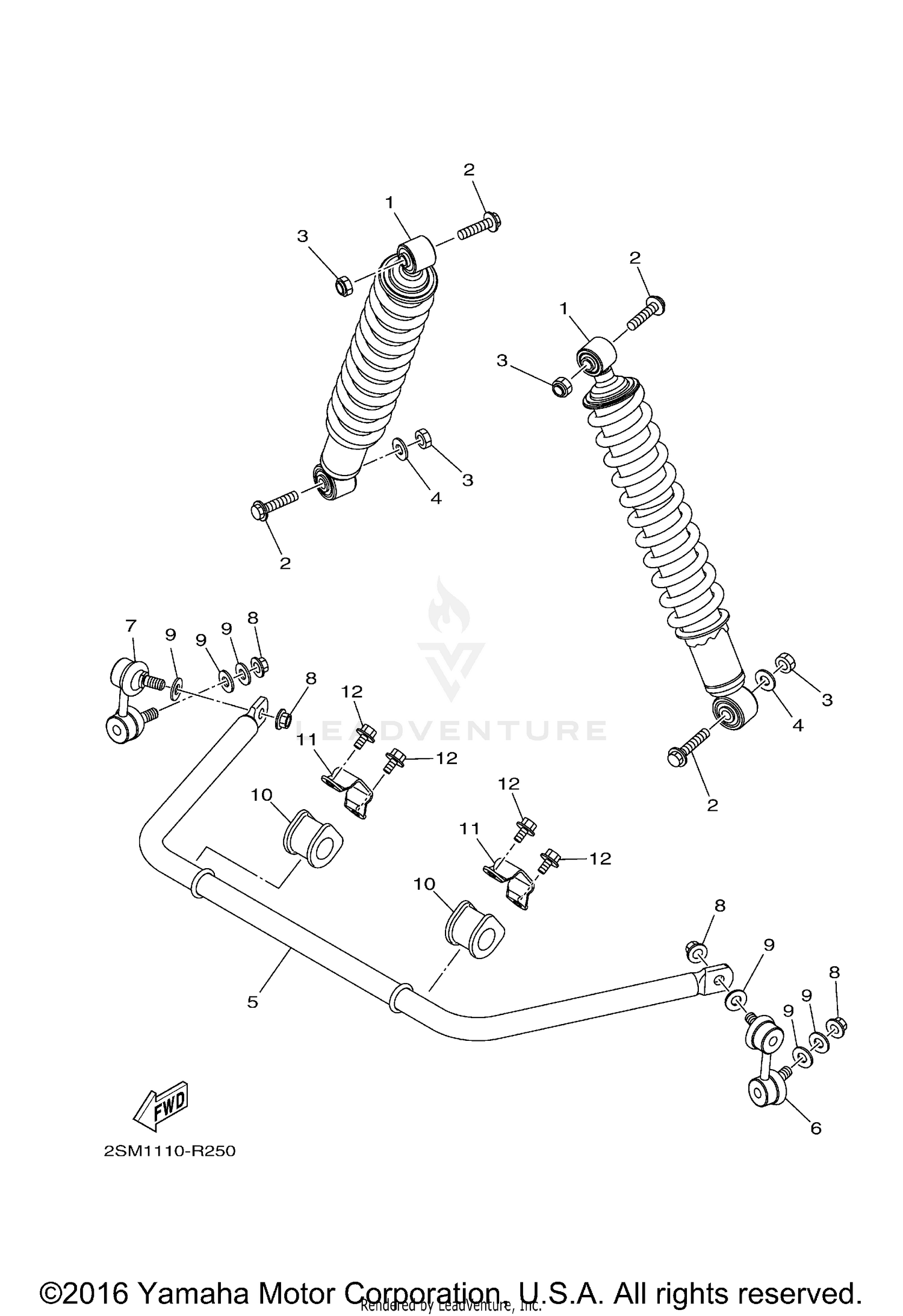

Rear Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK ABSORBER ASSY, REAR
2SM-F2210-10-00
|
$215.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE
90105-10131-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, SELF-LOCKING
90185-10012-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-10035-00
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#5
BAR, STABILIZER
1HP-G7491-00-00
Superseded by 1HP-G7491-01-00
|
$106.99 | ||
|
Unavailable |
|||
|
#6
JOINT, STABILIZER 1
16B-2385L-10-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
JOINT, STABILIZER 2
16B-2385M-10-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, U FLANGE
95602-10200-00
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-10035-00
|
$4.11 | ||
|
Unavailable |
|||
|
#10
BUSH, STABILIZER FRONT
1HP-F386G-00-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, STABILIZER FRONT
1HP-F386H-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95812-08014-00
Superseded by 95817-08014-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
