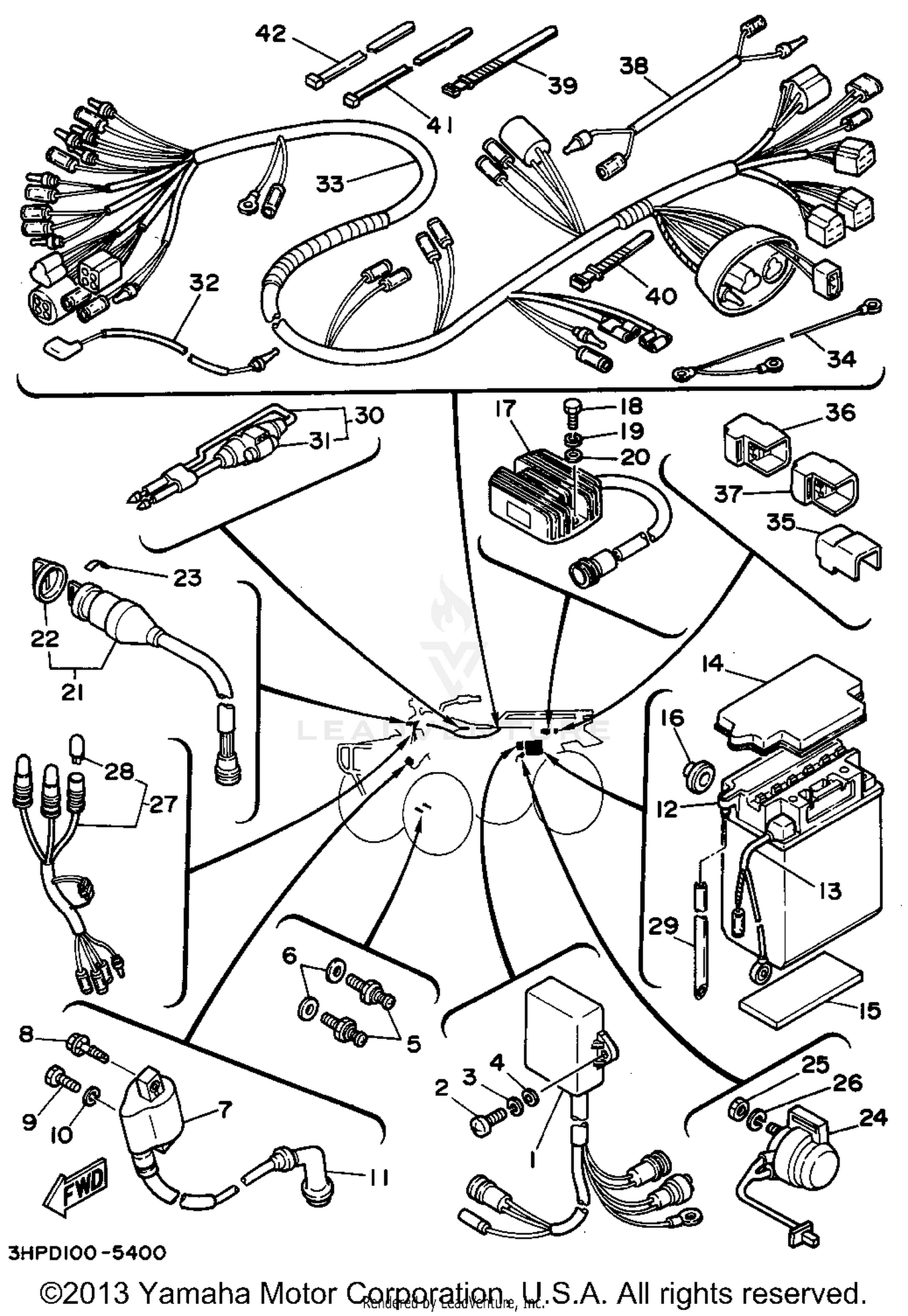

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
C.D.I. UNIT ASSEMBLY
3HN-85540-20-00
Superseded by 3HN-85540-30-00
|
$714.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW,PAN HEAD
98507-06020-00
Superseded by 98517-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
NEUTRAL SWITCH ASSY
3GB-82540-00-00
Superseded by 3GB-82540-01-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET
90430-10171-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
IGNITION COIL ASSY
3GD-82310-10-00
|
$147.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
90109-06723-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
97007-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Unavailable |
|||
|
#11
PLUG CAP ASSY
1UY-82370-20-00
Superseded by 3NS-82370-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CB14-A2 GS BATTERY
BTG-GM14A-Z4-A0
Superseded by CB1-4A200-00-00
|
$62.95 | ||
|
Unavailable |
|||
|
#13
WIRE, PLUS LEAD
1YW-82115-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, BATTERY
24W-82129-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#15
SEAT, BATTERY
5Y1-82122-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PAD, BATTERY
371-82121-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
RECTIFIER & REGULATOR ASSEMBLY
4GB-81960-00-00
|
$295.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
97007-06016-00
Superseded by 97017-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Unavailable |
|||
|
#20
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Unavailable |
|||
|
#21
MAIN SWITCH ASSY
4GB-82510-00-00
Superseded by 4GB-82510-12-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP, KEY
3HN-82579-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
LABEL
29U-83585-10-00
|
$4.25 | ||
|
Unavailable |
|||
|
#24
STARTER RELAY ASSY (MS5D-611)
4KD-81940-00-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
95307-06700-00
Superseded by 95317-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Unavailable |
|||
|
#27
PILOT LIGHT ASSEMBLY
2HT-83530-00-00
|
$59.99 | ||
|
Unavailable |
|||
|
#28
BULB (12V-3.4W T10)
4G1-84744-00-00
Superseded by 4G1-84744-00-XX
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIPE
90445-082F3-00
Superseded by 90445-084J0-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
FUSE HOLDER ASSY
59V-82150-00-00
Superseded by 2NL-82150-00-00
|
$76.99 | ||
|
Unavailable |
|||
|
#31
FUSE 30A
705-82151-00-00
Superseded by 705-82151-01-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#32
WIRE, LEAD
3HN-82541-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
WIRE HARNESS ASSEMBLY
3HP-82590-10-00
|
$358.99 | ||
|
Unavailable |
|||
|
#34
WIRE, LEAD
1YW-82507-00-00
|
$53.99 | ||
|
Unavailable |
|||
|
#35
RELAY ASSY (1UY-92)
1UY-81950-91-00
Superseded by 1UY-81950-92-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
RELAY ASSY (29U-93)
29U-81950-93-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
RELAY ASSY (29U-93)
29U-81950-93-00
|
$74.99 | ||
|
Unavailable |
|||
|
#38
WIRE, LEAD
59V-82541-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#39
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
BAND, SWITCH CORD
437-83936-11-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLAMP
90464-14117-00
Superseded by 90464-15152-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
BAND
90465-13169-00
Superseded by 1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
