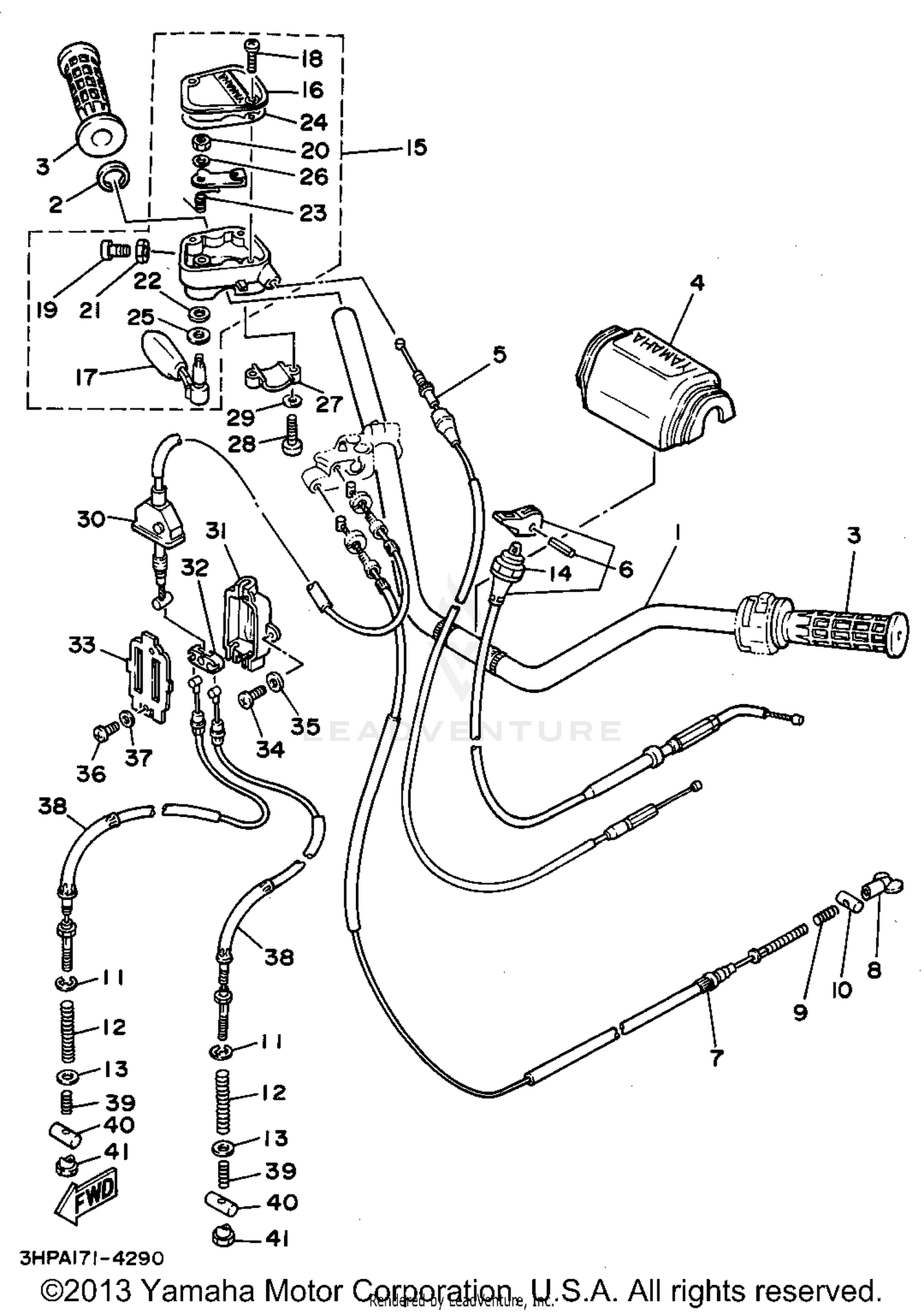

Steering Handle - Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
59V-26111-01-00
|
$57.99 | ||
|
Unavailable |
|||
|
#2
COLLAR
90387-22660-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GRIP
3GB-26241-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PROTECTOR, HANDLEBAR
1YW-26124-01-00
|
$66.99 | ||
|
Unavailable |
|||
|
#5
CABLE, THROTTLE 1
3HP-26311-10-00
|
$35.99 | ||
|
Unavailable |
|||
|
#6
CABLE, STARTER 1
1YW-26331-01-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CABLE, BRAKE
1YW-26341-00-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, ADJUSTING
20E-26343-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, COMPRESSION
90501-10782-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN
90249-12008-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP
99009-06600-00
Superseded by 99001-06600-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, COMPRESSION
90501-123A0-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
90209-06265-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
8G8-26333-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
THROTTLE LEVER ASSY
1NV-26250-01-00
|
$192.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP, GEAR
1NV-2628F-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
LEVER, THROTTLE
1NV-2625G-01-00
Superseded by 1NV-2625G-02-00
|
$60.99 | ||
|
Unavailable |
|||
|
#18
SCREW, PAN HEAD
98516-05012-00
Superseded by 98517-05012-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN HEAD
98506-05020-00
Superseded by 98517-05020-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, U
95612-05100-00
Superseded by 95617-05100-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
95316-05700-00
Superseded by 95317-05700-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
OIL SEAL
93104-09025-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING
1NV-26304-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET
1NV-2628G-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER
1NV-26129-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPECIAL
53L-83909-00-00
|
$4.55 | ||
|
Unavailable |
|||
|
#27
HOLDER, LEVER LOWER 1
4V4-82913-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, PAN HEAD
98507-05020-00
Superseded by 98517-05020-00
|
$4.16 | ||
|
Unavailable |
|||
|
#29
WASHER, SPRING
92907-05100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
CABLE, BRAKE 4
1YW-26373-02-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOUSING, BRAKE LINK
52H-26371-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
JOINT, CABLE
52H-26347-01-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
PLATE
52H-2631G-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW, PAN HEAD
98507-05016-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, PLATE
92907-05600-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW, PAN HEAD
98507-03008-00
Superseded by 98517-03008-00
|
$2.91 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER
92907-03600-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
CABLE, BRAKE
3GH-26361-01-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
SPRING, COMPRESSION
90501-10782-00
|
$7.99 | ||
|
Unavailable |
|||
|
#40
PIN
90249-12008-00
|
$7.99 | ||
|
Unavailable |
|||
|
#41
NUT
90179-06411-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
