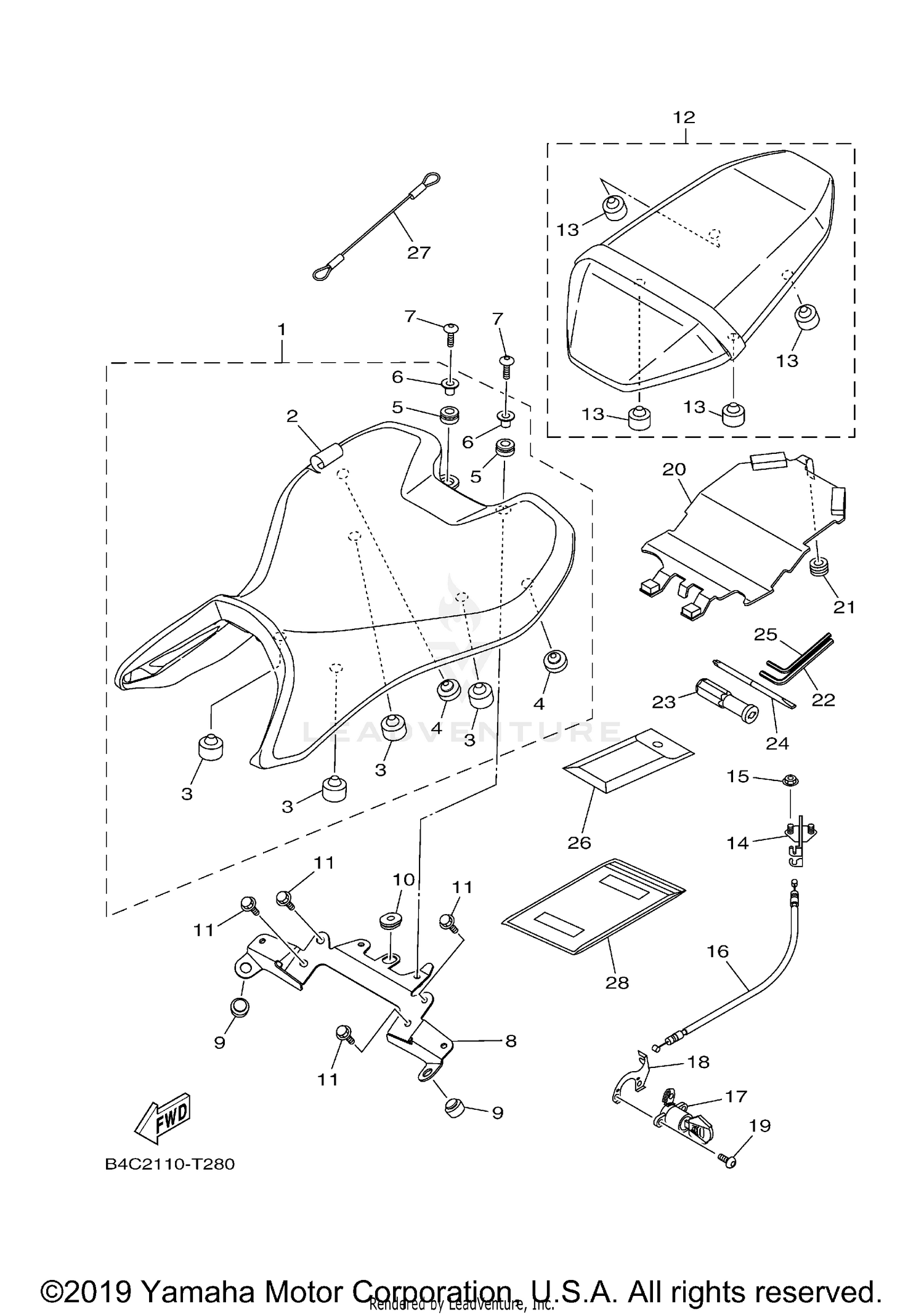

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSY
B4C-24710-00-00
Superseded by B4C-24710-01-00
|
$137.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
. .SEAT COVER COMP.
B4C-2470F-00-00
Superseded by B4C-2470F-01-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
STOPPER, MAIN STAND
371-27114-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PAD, SEAT
22W-24741-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET
90480-14604-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-07391-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HEX. SOCKET BUTTON
90111-06139-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET
B4C-21131-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
STOPPER, MAIN STAND
157-27114-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GROMMET
90480-01558-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE DEEP RECESS
95D32-06010-00
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
TANDEM SEAT ASSY
B4C-24750-00-00
Superseded by B4C-24750-01-00
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
STOPPER, MAIN STAND
278-27114-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAT LOCK ASSY
1WS-24780-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, WITH WASHER
95702-06500-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
CABLE, SEAT LOCK
1WS-2478E-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAT LOCK ASSY
2TV-W2470-00-00
Superseded by 3CK-W2470-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
STAY, LOCK
23P-2117K-00-00
Superseded by 23P-2117K-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
90149-06030-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAT COVER ASSY
B4C-2477A-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
GROMMET
90480-12237-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#22
WRENCH, HEXAGON 8
14B-28164-00-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#23
GRIP, DRIVER
2H7-28151-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
DRIVER
137-28152-00-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#25
WRENCH, HEXAGON 8
23P-28164-00-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#26
TOOL KIT
B4C-28100-00-00
Superseded by B4C-28100-01-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
HANGER, HELMET
2S3-21398-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
POUCH
4KG-28186-10-00
Superseded by 4KG-28186-11-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
