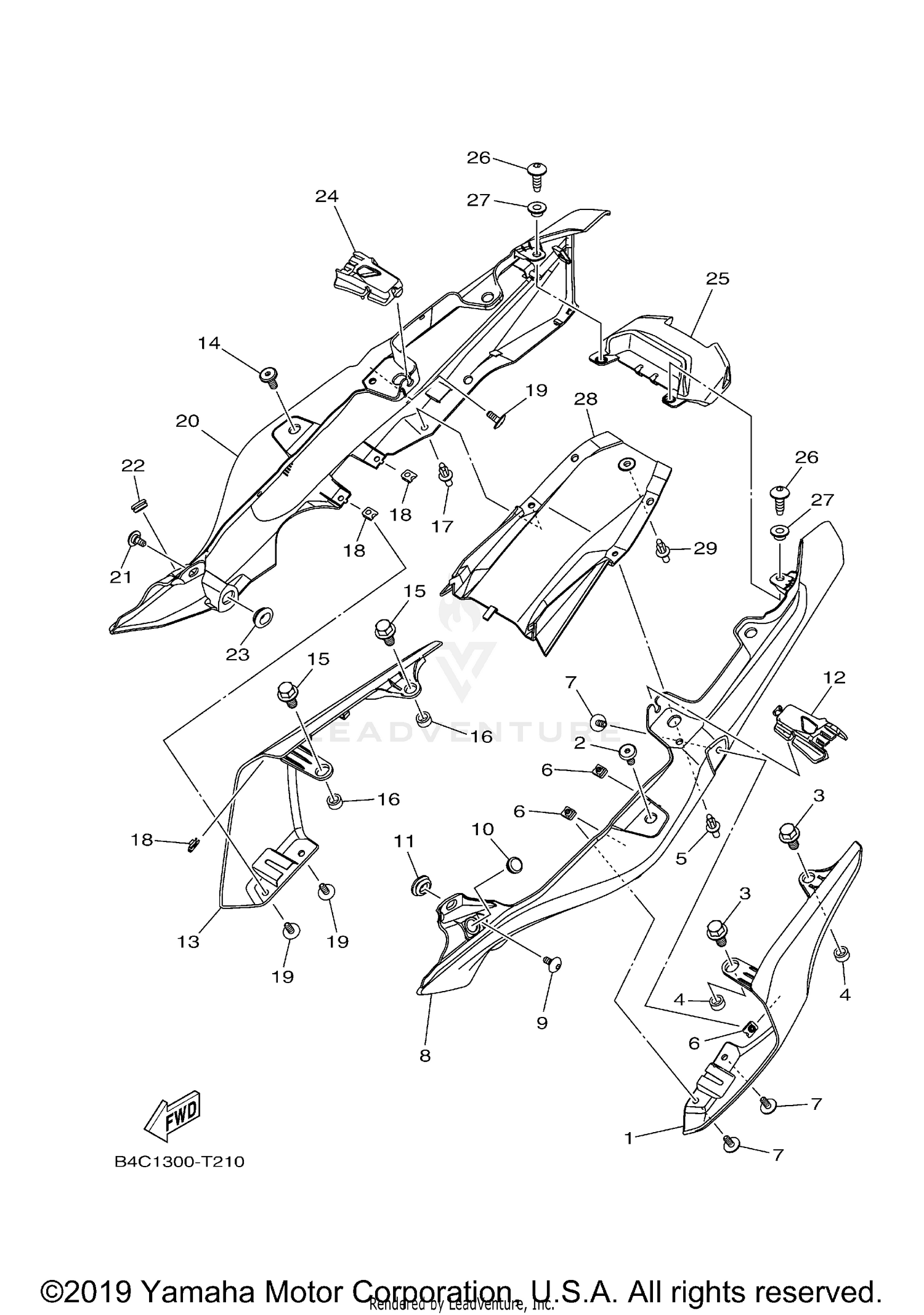

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
B4C-21711-00-P1
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
COVER, SIDE 1
B4C-21711-00-P3
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
COVER, SIDE 1
B4C-21711-00-P4
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
90109-06259-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
90105-08021-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
90387-08088-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
RIVET
90269-06008-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HEXAGON SOCKET HEAD
90111-05003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, SIDE 5
B4C-2171E-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEX. SOCKET BUTTON
90111-05011-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
GROMMET
90480-14100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GROMMET
90480-01559-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
MOLE, SIDE COVER 1
B4C-2171L-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, SIDE 2
B4C-21721-00-P3
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, SIDE 2
B4C-21721-00-P4
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, SIDE 2
B4C-21721-00-P1
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
90109-06259-00
|
$3.10 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE
90105-08021-00
|
$7.49 | ||
|
Unavailable |
|||
|
#16
COLLAR
90387-08088-00
|
$2.05 | ||
|
Unavailable |
|||
|
#17
RIVET
90269-06008-00
|
$8.49 | ||
|
Unavailable |
|||
|
#18
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$7.49 | ||
|
Unavailable |
|||
|
#19
BOLT, HEXAGON SOCKET HEAD
90111-05003-00
|
$7.49 | ||
|
Unavailable |
|||
|
#20
COVER, SIDE 6
B4C-2171X-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, HEX. SOCKET BUTTON
90111-05011-00
|
$4.95 | ||
|
Unavailable |
|||
|
#22
GROMMET
90480-14100-00
|
$7.49 | ||
|
Unavailable |
|||
|
#23
GROMMET
90480-01559-00
|
$4.95 | ||
|
Unavailable |
|||
|
#24
MOLE, SIDE COVER 2
B4C-2171M-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER, TAILLIGHT
B4C-2172X-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, TAPPING
90167-05076-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
90387-05021-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
COVER, REAR FENDER
1WS-21651-00-00
|
$143.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
RIVET
90269-06008-00
|
$8.49 | ||
|
Unavailable |
|||
