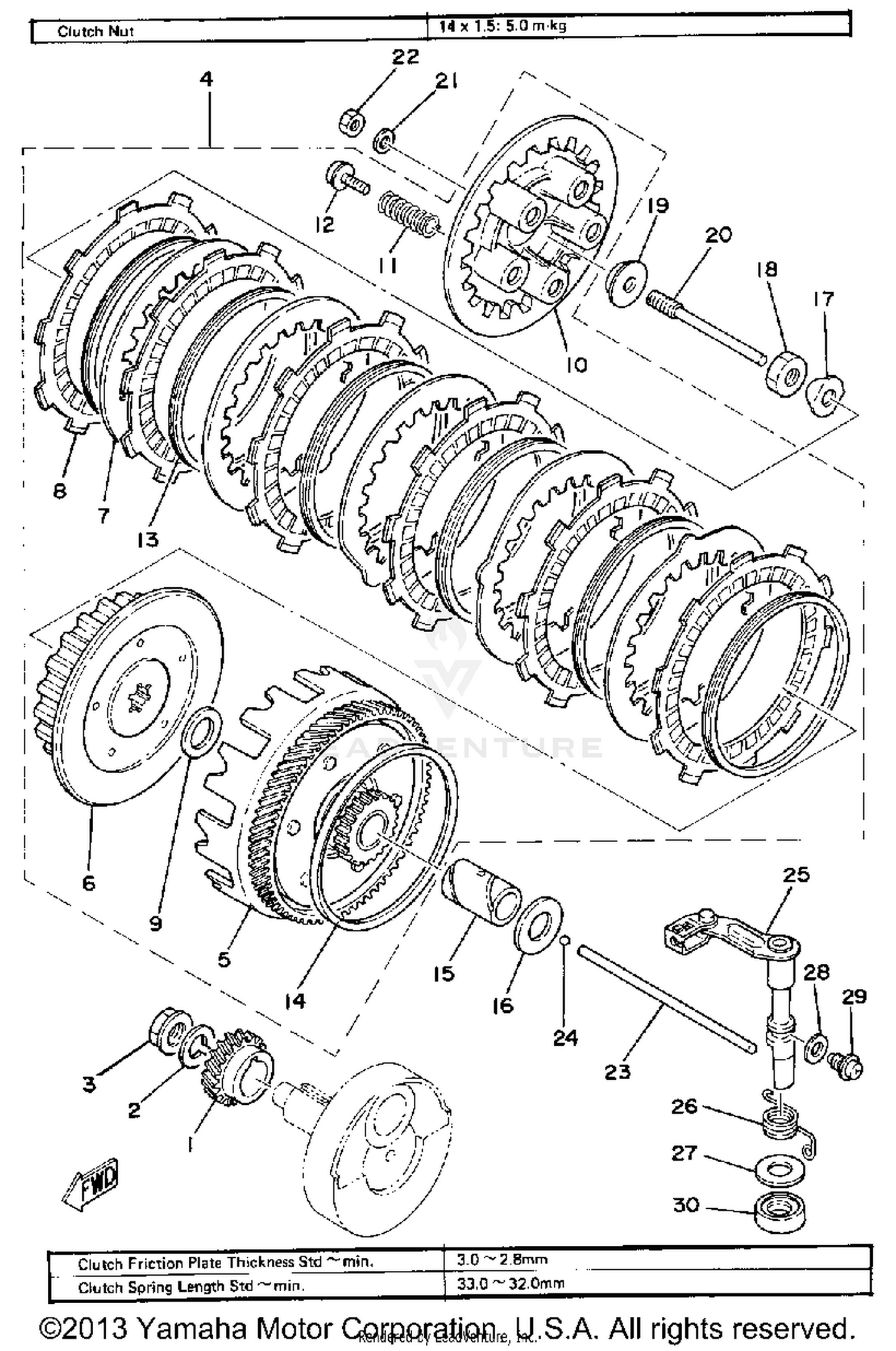

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRI DRIVE
1W1-16111-00-00
|
$69.99 | ||
|
Unavailable |
|||
|
#2
WASHER, SPRING
90204-12007-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
90179-12244-00
Superseded by 90179-12659-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLUTCH ASSEMBLYCLUTCH ASSEMBLY
3J1-16300-00-00
|
$203.99 | ||
|
Unavailable |
|||
|
#5
PRI DRVN GEAR COMP. (71T)
2A7-16150-00-00
|
$182.99 | ||
|
Unavailable |
|||
|
#6
BOSS, CLUTCH
1G8-16371-00-00
|
$59.99 | ||
|
Unavailable |
|||
|
#7
PLATE, CLUTCH 1
2A6-16324-00-00
Superseded by 2A6-16324-10-00
|
$13.99 | ||
|
Unavailable |
|||
|
#8
PLATE, FRICTION
559-16321-01-00
Superseded by 36X-16321-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-17543-00
Superseded by 90201-180P2-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, PRESSURE 1
1W1-16351-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#11
SPRING, COMPRESSION
90501-20474-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, WITH WASHER
90159-05011-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
RING, CUSHION
307-16367-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#14
RING, FRICTION
2A7-16369-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#15
SPACER
90560-17147-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-174E1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, LOCK
90215-14204-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
90170-14171-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, PUSH
30X-16358-00-00
Superseded by 1W1-16358-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
ROD, PUSH 1
1W1-16356-02-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
ROD, PUSH 2
1W1-16357-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#24
BALL
93503-16010-00
Superseded by 93503-16003-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#25
PUSH LEVER ASSEMBLY
1W1-16380-00-00
|
$28.86 | ||
|
Unavailable |
|||
|
#26
SPRING, TORSION
90508-20345-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-14217-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
GASKET
90430-08069-00
Superseded by 90430-08204-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, SPECIAL SHAPE
90149-08108-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
OIL SEAL
93104-14059-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
