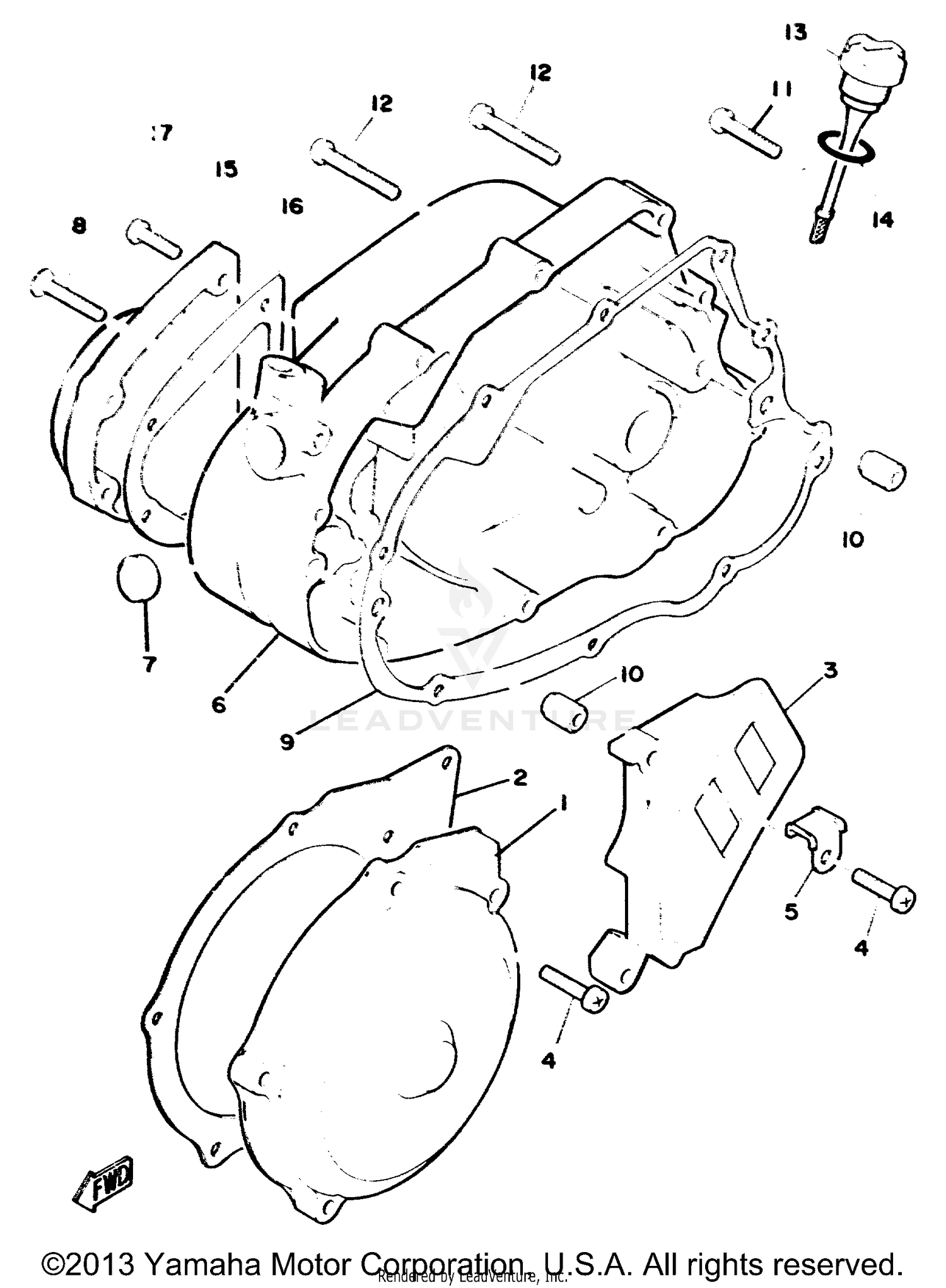

Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE L
1W1-15411-00-00
|
$49.33 | ||
|
Unavailable |
|||
|
#2
GASKET 1
1W1-15455-00-00
Superseded by 1W1-15455-01-00
|
$18.99 | ||
|
Unavailable |
|||
|
#3
COVER, CRANKCASE R
1W1-15421-01-00
|
$46.99 | ||
|
Unavailable |
|||
|
#4
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP 2
2A6-15484-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, CRANKCASE 3
2A6-15431-00-00
|
$166.99 | ||
|
Unavailable |
|||
|
#7
PLUG
90338-19078-00
|
$7.99 | ||
|
Unavailable |
|||
|
#8
SCREW, FLAT HEAD
92601-06030-00
Superseded by 98707-06030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GSKT, CRCS
18G-15451-01-00
Superseded by 18G-15451-03-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98580-06030-00
Superseded by 97885-06030-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD (90501-06040-00
98580-06040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLUG, OIL LEVEL
18G-15362-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING
93210-21190-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, OIL PUMP
2A6-15416-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#16
GASKET, O/PMP CUR1
2A6-15456-00-00
Superseded by 2A6-15456-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Unavailable |
|||
