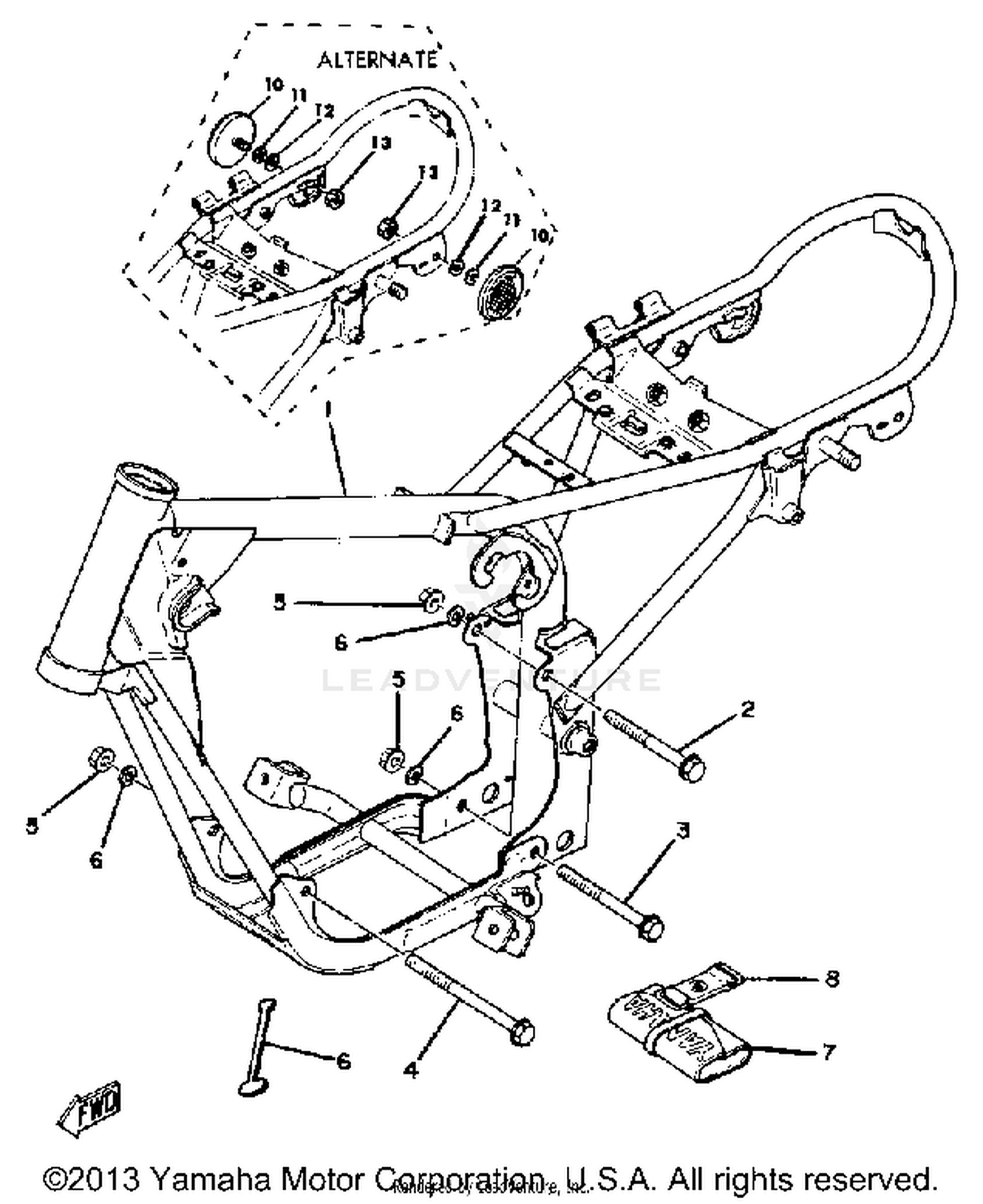

Frame - Tool Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
2A3-21110-00-33
|
$190.99 | ||
|
Unavailable |
|||
|
#2
BOLT, FLANGE
95811-08090-00
Superseded by 95817-08090-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
95811-08095-00
Superseded by 95817-08095-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
95811-08120-00
Superseded by 95817-08120-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, FLANGE
95701-08500-00
Superseded by 95704-08500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
TOOL KIT
2U2-W2810-00-00
|
$79.99 | ||
|
Unavailable |
|||
|
#8
BAND, TOOL
21V-21376-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GAUGE, LEVEL
353-15361-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#10
REFLECTOR, REAR 1
449-85131-02-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
