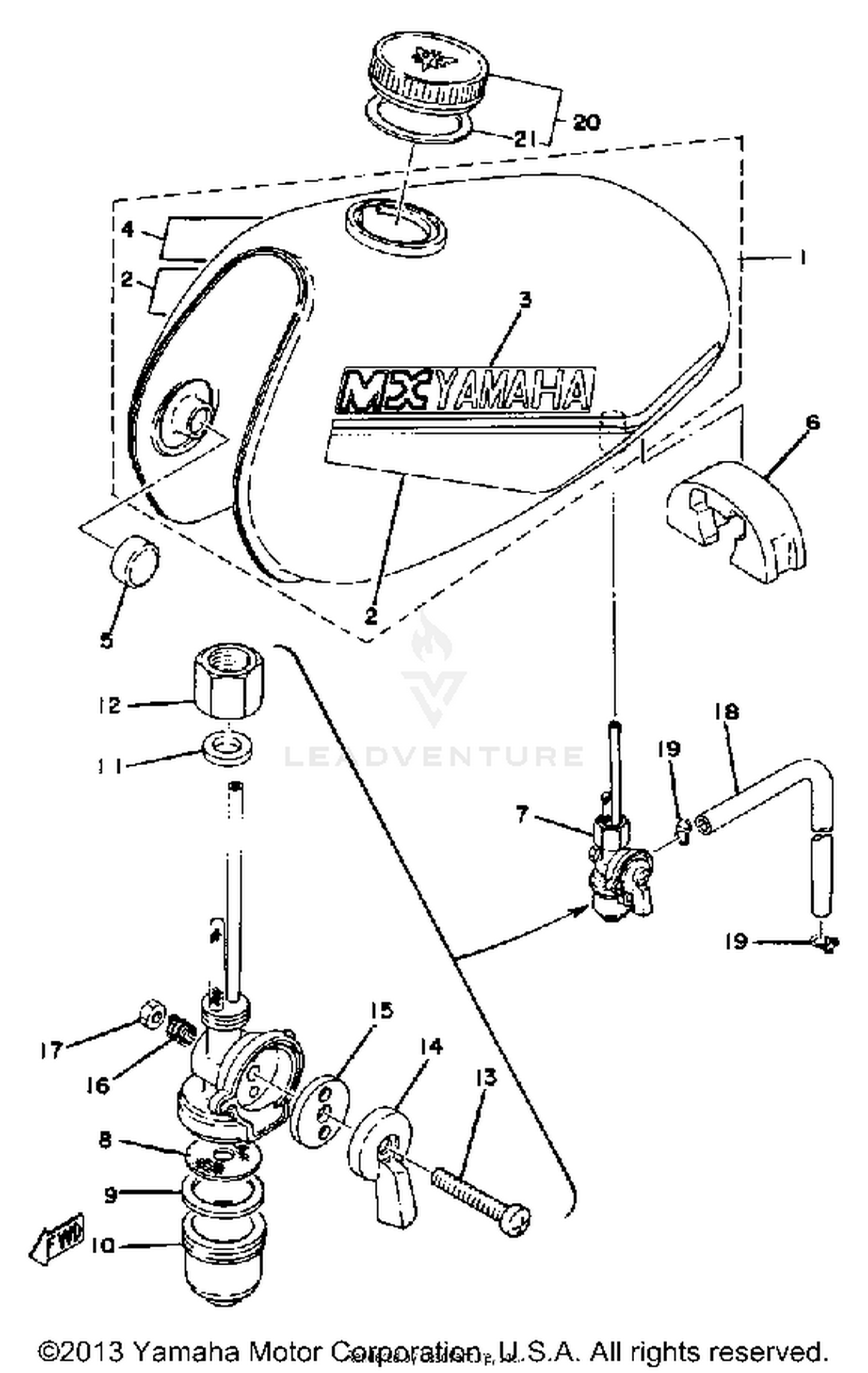

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
367-24110-Y0-W4
|
$306.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET
367-24240-50-00
|
$28.27 | ||
|
Unavailable |
|||
|
#3
GRAPHIC, FUEL TNK 3
367-24246-40-00
|
$10.32 | ||
|
Unavailable |
|||
|
#4
GRAPHIC, FUEL TNK 4
367-24247-40-00
|
$10.32 | ||
|
Unavailable |
|||
|
#5
DAMPER, LOCATING 1
122-24181-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER, LOCATING 2
353-24182-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
FUEL COCK ASSEMBLY 1
367-24500-04-00
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NET, FILTER 2
355-24515-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#9
GASKET
102-24522-01-00
Superseded by 102-24522-02-00
|
$5.49 | ||
|
Unavailable |
|||
|
#10
CUP, FILTER
122-24521-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#11
GASKET
122-24532-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
603-24531-01-00
|
$26.99 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN HEAD
98501-05030-00
Superseded by 98517-05030-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
LEVER, COCK
355-24524-01-00
|
$5.24 | ||
|
Unavailable |
|||
|
#15
VALVE
355-24523-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, WAVE
355-24518-00-00
|
$3.30 | ||
|
Unavailable |
|||
|
#17
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIPE 5
90445-09066-00
Superseded by 5RB-24315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP
90467-08003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAP ASSEMBLY
122-24610-01-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET, CAP
122-24612-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
