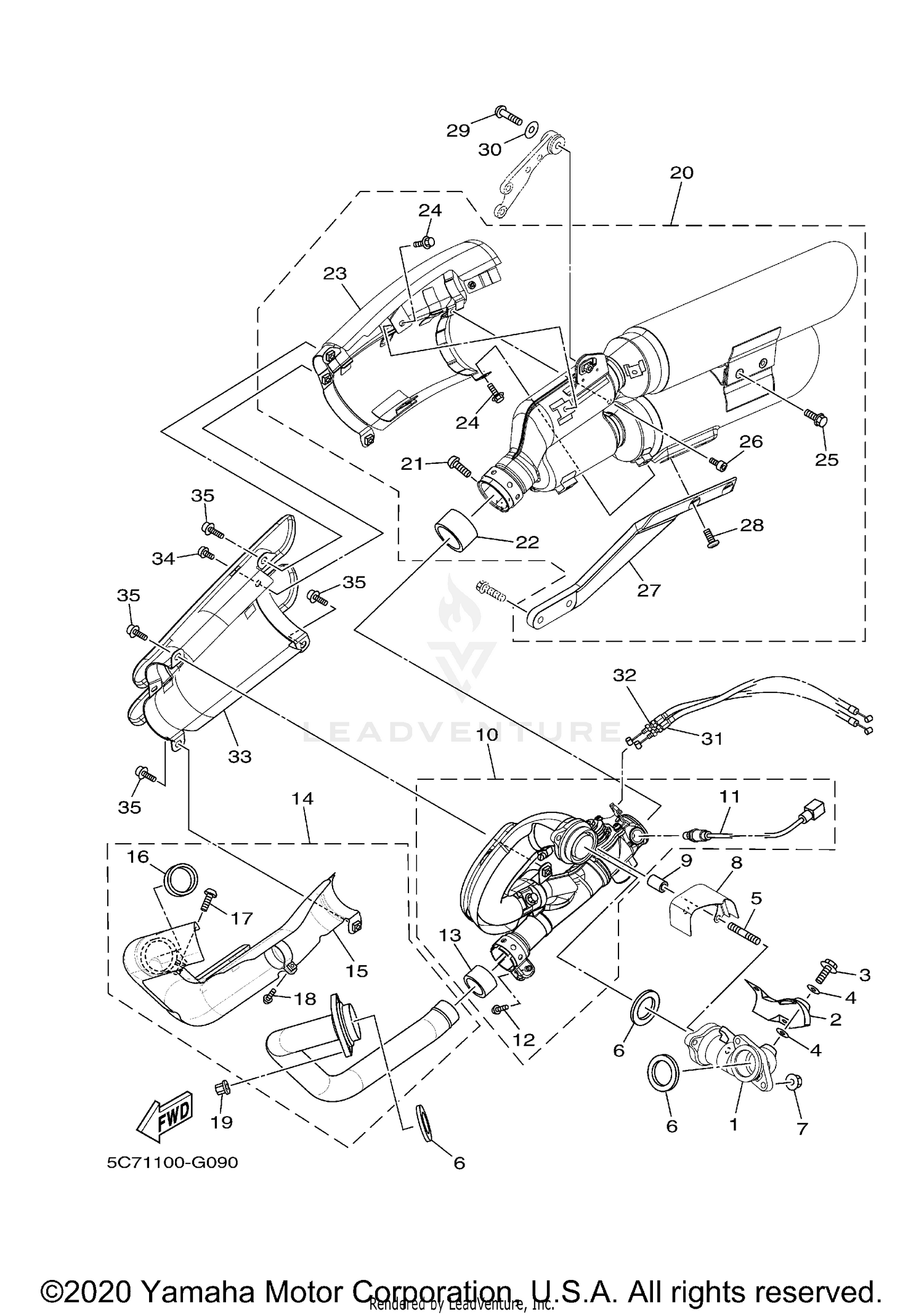

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, EXHAUST 1
1D7-14615-00-00
|
$211.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PROTECTOR, EXHAUST PIPE
1D7-14628-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
95880-06012-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-05015-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, STUD
95617-08630-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, EXHAUST PIPE
3EG-14613-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, SELF-LOCKING
90185-08097-00
Superseded by 90185-08146-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, EXHAUST
1D7-14624-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
90179-08022-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
EXHAUST PIPE ASSY 1
5C7-14610-00-00
Superseded by 5C7-14610-01-00
|
$645.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SENSOR, OXYGEN
5C7-8592A-00-00
|
$247.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, BUTTON HEAD
92014-08035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, SILENCER
5PX-14755-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
EXHAUST PIPE ASSY 2
5C7-14620-00-00
|
$374.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PROTECTOR, MUFFLER 2
5C7-14728-00-00
|
$692.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET, MUFFLER
5C7-14714-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, BUTTON HEAD
92014-08020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, BUTTON HEAD
92014-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
90179-08410-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
MUFFLER ASSY 1
5C7-14710-00-00
|
$1,703.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, BUTTON HEAD
92014-08035-00
|
$7.49 | ||
|
Unavailable |
|||
|
#22
GASKET, MUFFLER
5YU-14714-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PROTECTOR, MUFFLER 3
5C7-14738-00-00
|
$462.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (SMALL HEAD)
95024-06010-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (SMALL HEAD)
95024-08020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, HEXAGON SOCKET HEAD
91314-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
STAY, MUFFLER 2
5C7-14772-00-00
|
$272.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, HEX. SOCKET BUTTON
90111-08029-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, HEXAGON SOCKET HEAD
90110-08221-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
90201-087G2-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#31
CABLE, PULLEY 1
5C7-1133E-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
CABLE, PULLEY 2
5C7-1133F-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
COVER, EXHAUST
5C7-14627-00-00
|
$733.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, HEXAGON SOCKET HEAD
90110-06288-00
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, HEXAGON SOCKET HEAD
90110-06289-00
Superseded by 90110-06301-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
