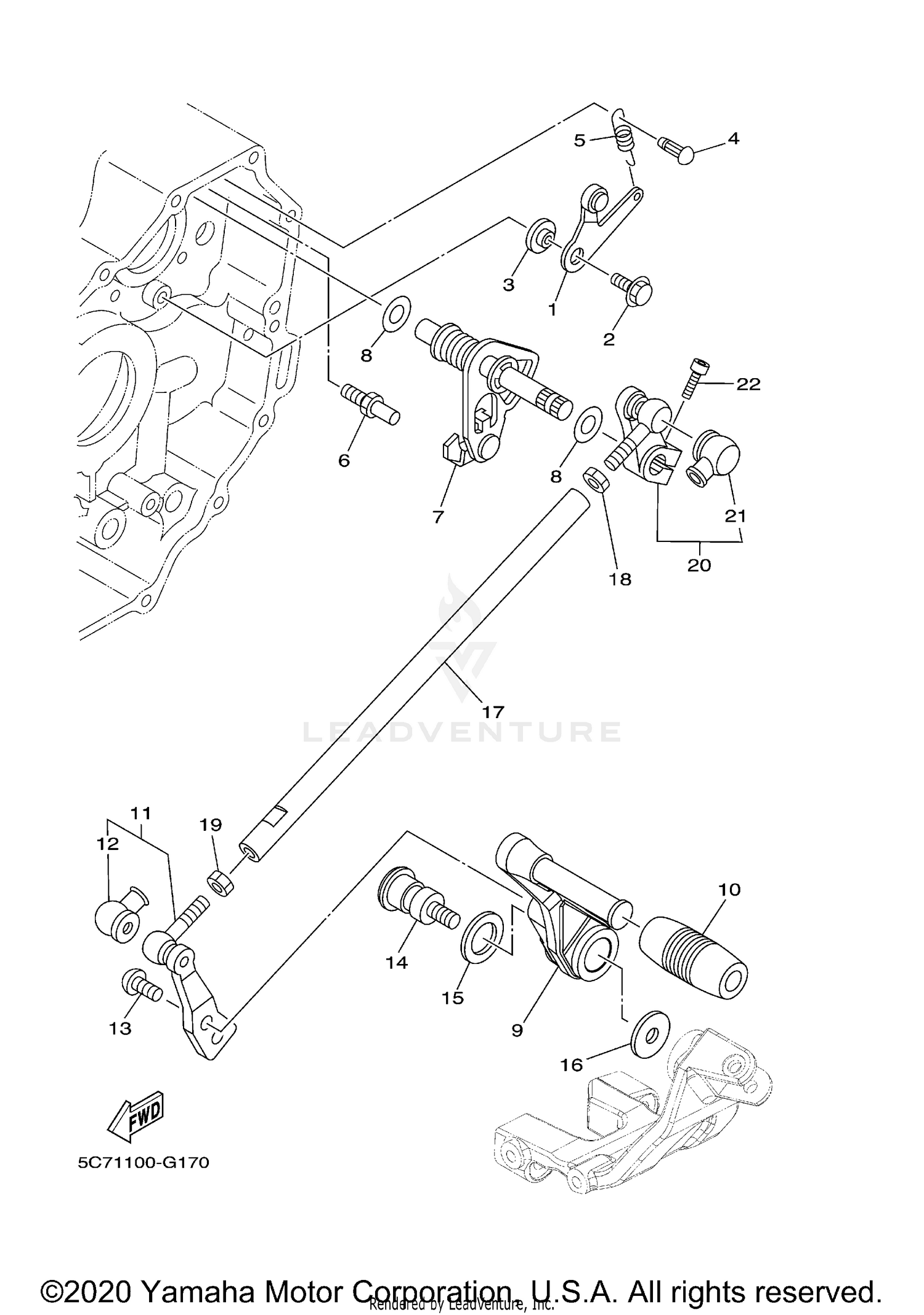

Shift Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STOPPER LEVER ASSY
1D7-18140-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, WITH WASHER
90159-06027-00
Superseded by 90159-06028-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER
4NX-18175-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOOK, SPRING
132-16346-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
HANGER, SPRING
5C7-18144-00-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
STOPPER, SCREW
1D7-18127-00-00
Superseded by 5VK-18127-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHIFT SHAFT ASSY
1D7-18101-00-00
Superseded by 1D7-18101-01-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-127E1-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
PEDAL, SHIFT
5C7-18111-00-00
|
$165.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, SHIFT PEDAL
5VN-18113-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
KNOB, SHIFTER
5C7-18164-00-00
|
$137.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, DUST
2H9-18154-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, BUTTON HEAD
90111-08048-00
Superseded by 92012-08016-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
5C7-27434-00-00
Superseded by 5C7-27434-09-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-18025-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-08061-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROD, SHIFT
5C7-18115-00-00
|
$147.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
95304-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
90170-08358-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIFT LEVER ASSY
5C7-18150-00-00
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER, DUST
2H9-18154-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#22
BOLT, HEXAGON SOCKET HEAD
91314-06020-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
