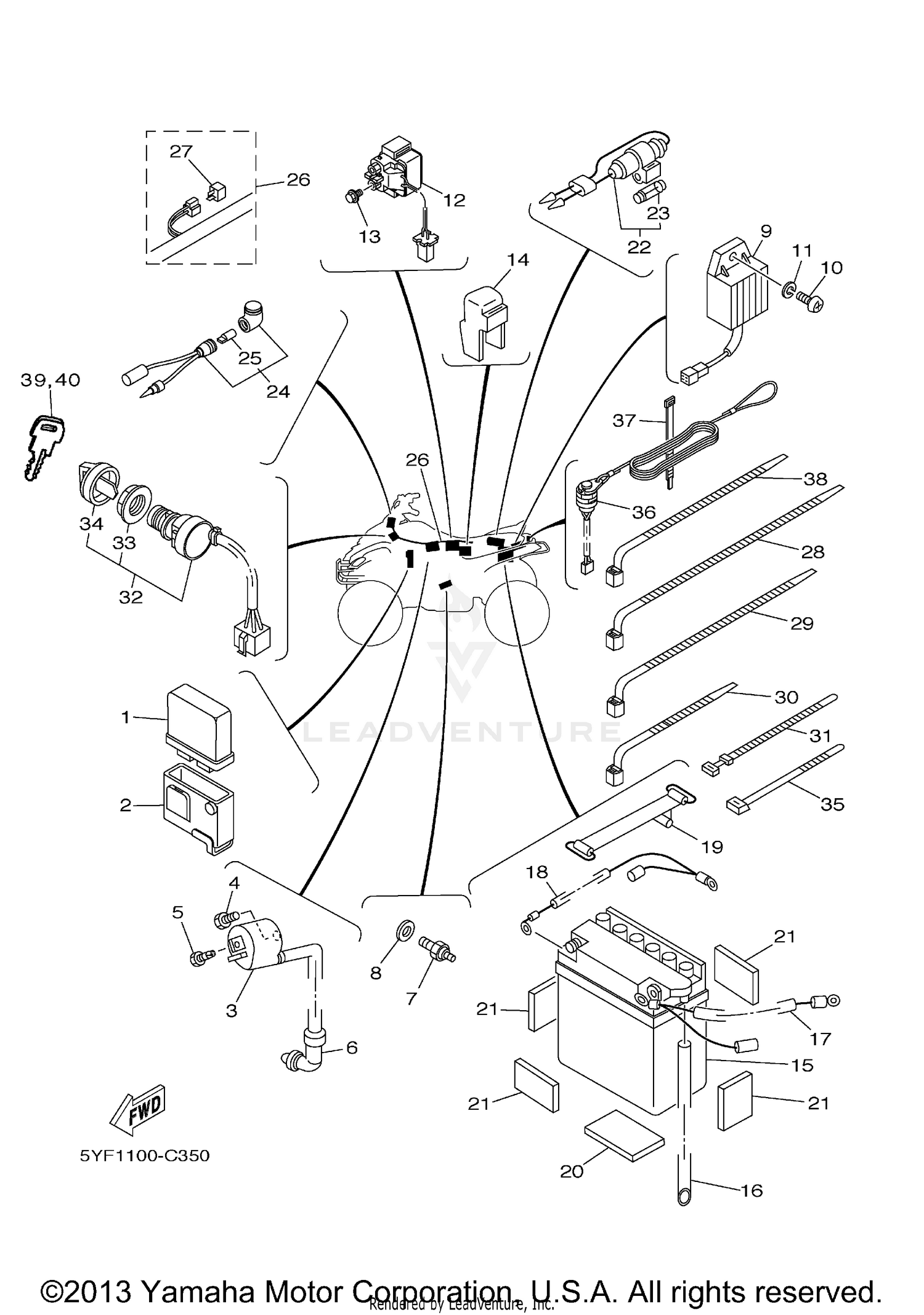

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
C.D.I. UNIT ASSY
5YF-85540-00-00
|
$277.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BAND
5CU-85546-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
IGNITION COIL ASSY
4KJ-82310-10-00
Superseded by 3KJ-82310-13-00
|
$47.99 | ||
|
Unavailable |
|||
|
#4
BOLT, HEXAGON DEEP R
97002-06016-00
Superseded by 97D95-06016-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, HEXAGON
90153-06034-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG CAP ASSY
55X-82370-00-00
Superseded by 4BP-82370-01-00
|
$35.99 | ||
|
Unavailable |
|||
|
#7
NEUTRAL SWITCH ASSY
3GB-82540-01-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
90430-10148-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
RECTIFIER & REGULATOR ASSY
5TH-81960-01-00
|
$178.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
92502-06016-00
Superseded by 98580-06016-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
92902-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
STARTER RELAY ASSY
3MW-81940-01-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95022-06008-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
RELAY ASSY
1RL-81950-92-00
Superseded by 12R-81950-02-00
|
$70.99 | ||
|
Unavailable |
|||
|
#15
BAT 12N7-3B YU
55X-82110-61-00
Superseded by 12N-73B00-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIPE
90445-085E0-00
Superseded by 90445-084J0-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WIRE, PLUS LEAD
55X-82115-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WIRE, MINUS LEAD
3GB-82116-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BAND, BATTERY
4J2-82131-01-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAT, BATTERY
55X-82122-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
DAMPER 1
29W-82123-00-00
Superseded by 1UY-21638-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
FUSE HOLDER ASSY
3GB-82150-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
FUSE
3GB-82151-00-00
Superseded by 5G2-82151-00-00
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#24
PILOT LIGHT ASSY
4KB-83530-00-00
Superseded by 4KB-83530-01-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BULB (12V-1.7W)
5GH-83516-00-00
Superseded by 3FV-83517-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WIRE HARNESS ASSY
5YF-82590-00-00
|
$166.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
DIODE ASSY
3WP-81980-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP, HOSE
90460-15126-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BAND, SWITCH CORD
90464-12045-00
Superseded by 25G-83936-01-00
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#31
BAND, SWITCH CORD
437-83936-01-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
MAIN SWITCH ASSY
4GB-82510-11-00
Superseded by 4GB-82510-12-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, MAIN SWITCH
3HN-82569-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
CAP, KEY
3HN-82579-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLAMP
90465-10098-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#36
ENGINE STOP SWITCH ASSY
5YF-82550-00-00
|
$116.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BAND, SWITCH CORD
3TB-83936-00-00
Superseded by 437-83936-11-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLAMP
90464-15195-00
|
$4.32 | ||
|
Unavailable |
|||
|
#39
KEY BLANK (A-TYPE)
90890-56001-00
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#40
KEY BLANK (B-TYPE)
90890-56002-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
