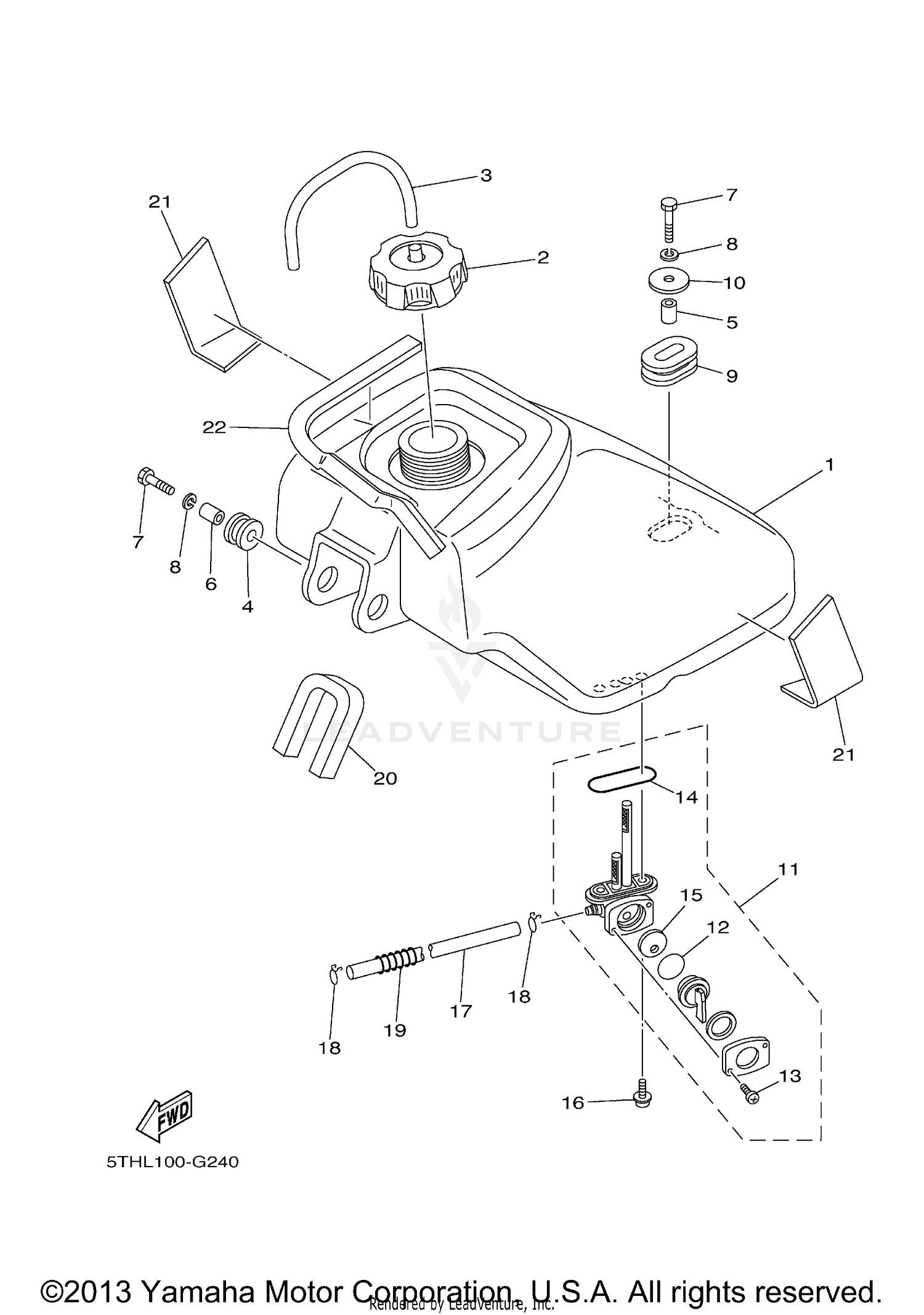

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
2HX-24110-10-00
|
$251.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP ASSY
2FJ-24610-00-00
Superseded by 2FJ-24610-20-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE (L460)
90445-083J4-00
Superseded by 90445-083J5-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GROMMET
90480-18290-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR
90387-07598-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-066J1-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT,HEXAGON
97022-06030-00
Superseded by 97017-06030-00
|
$3.54 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
92902-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
GROMMET
90480-01400-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-06090-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
FUEL COCK ASSY 1
55X-24500-02-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL, COCK
3AJ-24534-01-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
98507-03008-00
Superseded by 98517-03008-00
|
$2.91 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING
4X8-24512-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
VALVE PACKING
3AC-24523-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
90149-06108-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE
90445-10044-00
Superseded by 90445-10829-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP
90467-090A2-00
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING, COMPRESSION
90504-06030-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
DAMPER 1
2HX-24181-00-00
Superseded by 88T-77198-00-00
|
$3.25 | ||
|
Unavailable |
|||
|
#21
SEAT, BATTERY
12R-21747-00-00
Superseded by 5Y1-82122-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
DAMPER, PLATE 1
5TH-2414H-00-00
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
