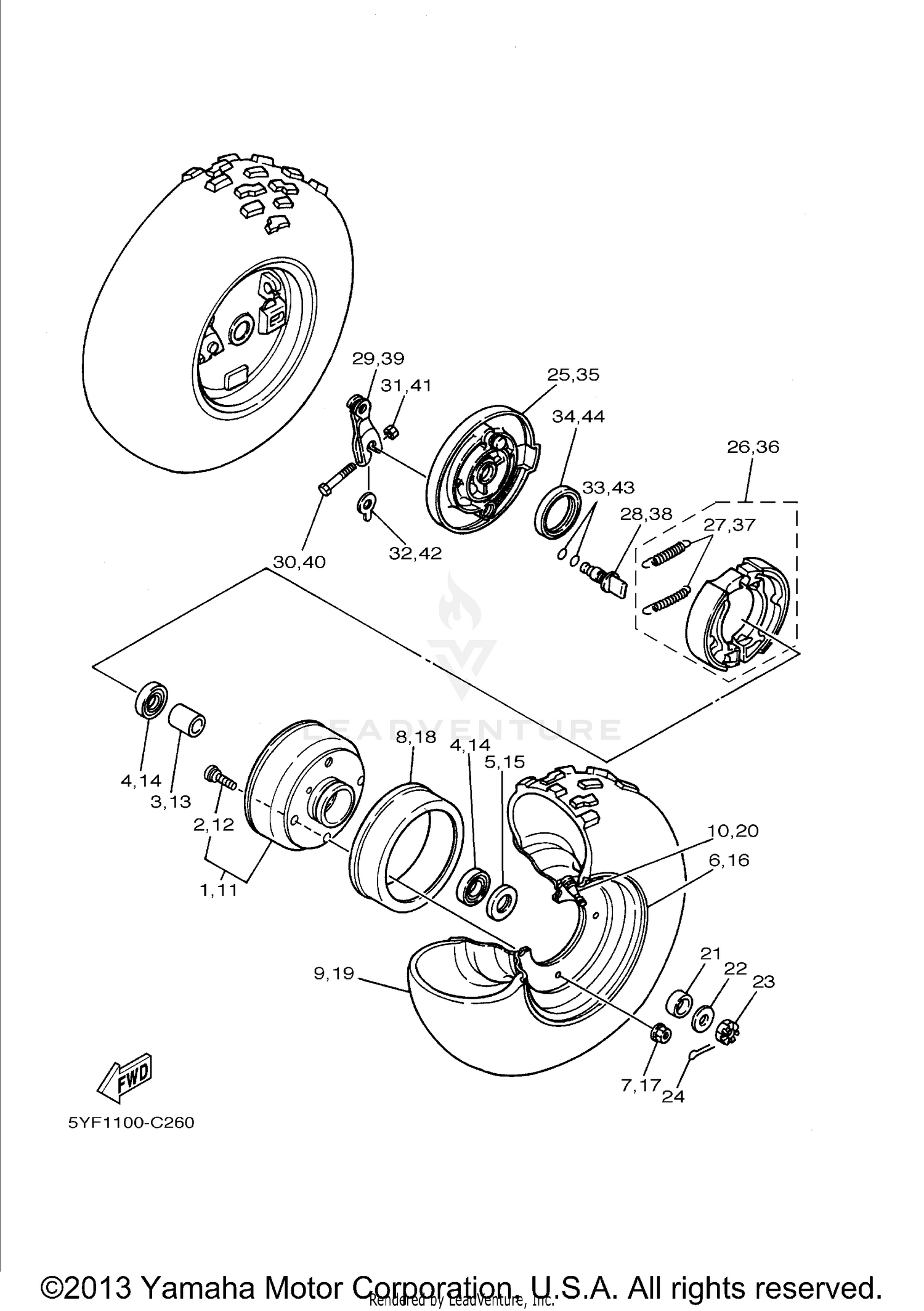

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
2FJ-25111-10-00
|
$150.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, SERRATION
90114-08001-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER, bearing
3FA-25117-00-00
Superseded by 2FJ-25117-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-00308-00
Superseded by 93306-00315-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93102-23275-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WHEEL COMP.
2FJ-25180-00-98
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, WITH WASHER
95702-08500-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING 1
3GB-25185-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
TIRE
94107-07008-00
Superseded by 5YF-2510K-09-00
|
$116.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
VALVE, RIM (TR412)
93900-00022-00
Superseded by 93900-00030-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
HUB, FRONT
2FJ-25111-10-00
|
$150.99 | ||
|
Unavailable |
|||
|
#12
BOLT, SERRATION
90114-08001-00
|
$5.49 | ||
|
Unavailable |
|||
|
#13
SPACER, bearing
3FA-25117-00-00
Superseded by 2FJ-25117-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#14
BEARING
93306-00308-00
Superseded by 93306-00315-00
|
$32.99 | ||
|
Unavailable |
|||
|
#15
OIL SEAL
93102-23275-00
|
$14.49 | ||
|
Unavailable |
|||
|
#16
WHEEL COMP.
2FJ-25180-00-98
|
$83.99 | ||
|
Unavailable |
|||
|
#17
NUT, WITH WASHER
95702-08500-00
|
$1.40 | ||
|
Unavailable |
|||
|
#18
RING 1
3GB-25185-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#19
TIRE
94107-07008-00
Superseded by 5YF-2510K-09-00
|
$116.99 | ||
|
Unavailable |
|||
|
#20
VALVE, RIM (TR412)
93900-00022-00
Superseded by 93900-00030-00
|
$16.49 | ||
|
Unavailable |
|||
|
#21
COLLAR
90387-175R2-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-14586-00
Superseded by 90201-14220-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, CASTLE
90171-14002-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, SPLIT
91401-30025-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE, BRAKE SHOE
2FJ-25121-00-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BRAKE SHOE KIT
4KN-W253E-11-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPRING, TENSION
90506-15260-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CAMSHAFT
3GB-25151-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
LEVER, CAMSHAFT 1
2FJ-25155-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
90101-06046-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, HEXAGON
95302-06600-00
Superseded by 95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#32
PLATE, INDICATOR
52H-2513A-00-00
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#33
O-RING
93210-12327-00
Superseded by 93210-12790-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
OIL SEAL
93102-40367-00
Superseded by 93106-40027-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
PLATE, BRAKE SHOE 2
2FJ-25169-00-00
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BRAKE SHOE KIT
4KN-W253E-11-00
|
$25.99 | ||
|
Unavailable |
|||
|
#37
SPRING, TENSION
90506-15260-00
|
$7.99 | ||
|
Unavailable |
|||
|
#38
CAMSHAFT
3GB-25151-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#39
LEVER, CAMSHAFT 2
2FJ-25156-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT
90101-06046-00
|
$6.99 | ||
|
Unavailable |
|||
|
#41
NUT, HEXAGON
95302-06600-00
Superseded by 95380-06600-00
|
$4.45 | ||
|
Unavailable |
|||
|
#42
PLATE, INDICATOR
52H-2513A-00-00
|
$2.39 | ||
|
Unavailable |
|||
|
#43
O-RING
93210-12327-00
Superseded by 93210-12790-00
|
$6.99 | ||
|
Unavailable |
|||
|
#44
OIL SEAL
93102-40367-00
Superseded by 93106-40027-00
|
$15.49 | ||
|
Unavailable |
|||
