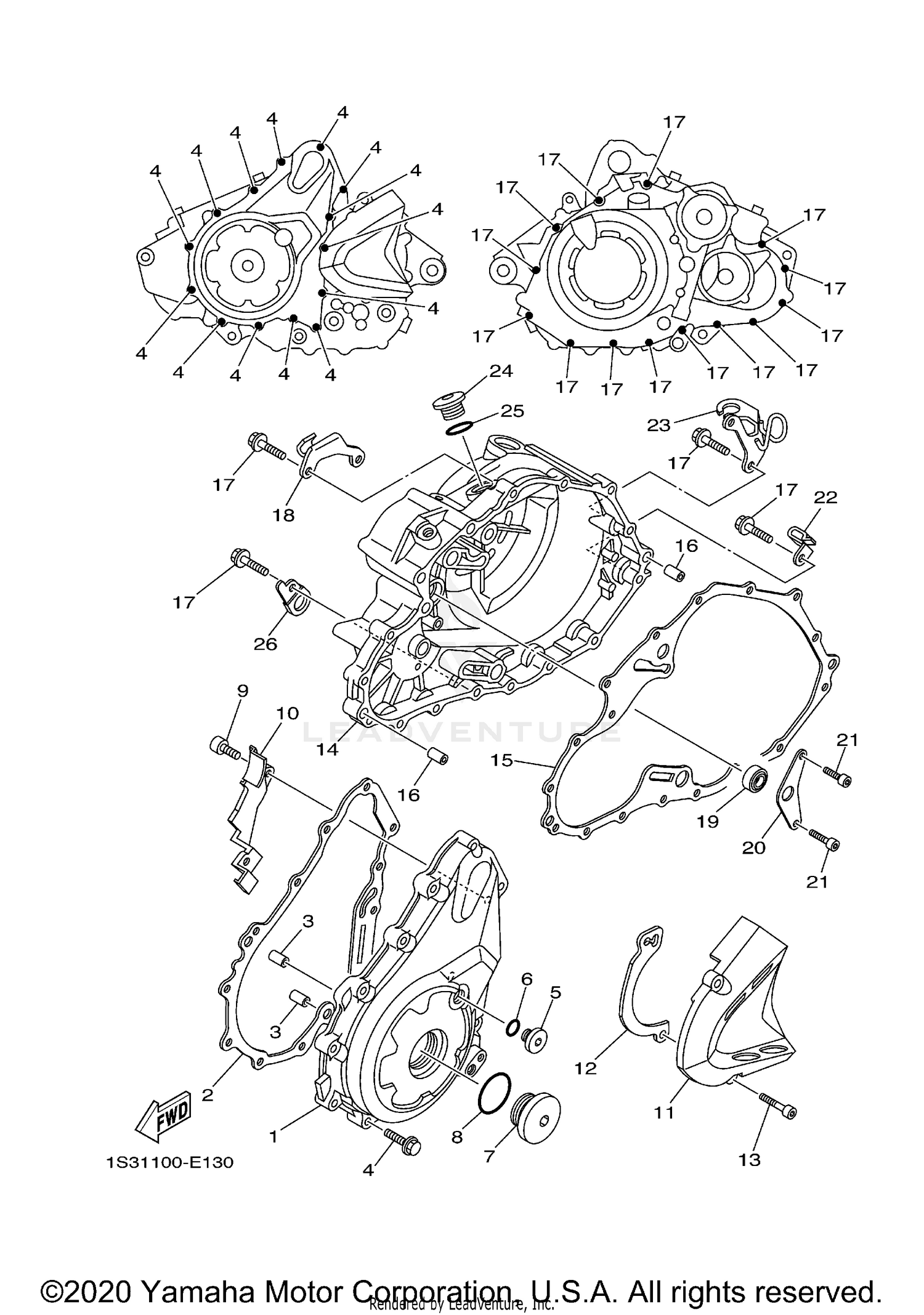

Crankcase Cover 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE 1
1S3-15411-00-00
|
$229.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CRANKCASE COVER 1
1S3-15451-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
95022-06030-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG, STRAIGHT SCREW
90340-14016-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
93210-14369-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG, STRAIGHT SCREW
90340-36004-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING
93210-357A3-00
Superseded by 93210-35804-00
|
$0.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEXAGON SOCKET HEAD
90110-05031-00
Superseded by 91312-05014-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE
1S3-15113-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#11
COVER, CRANKCASE 2
1S3-15421-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUIDE, CHAIN
1S3-17466-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
91312-06025-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, CRANKCASE 3
1S3-15431-00-00
|
$344.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, CRANKCASE COVER 3
1S3-15462-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, DOWEL
99530-10120-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
95022-06030-00
|
$3.50 | ||
|
Unavailable |
|||
|
#18
HOLDER, CLUTCH CABLE
1S3-15441-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL
93101-14164-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOLDER
1S3-15118-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
90110-06182-00
Superseded by 91317-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP
90461-10011-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOLDER
1S3-1546C-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLUG
4H7-15189-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING
93210-207A0-00
Superseded by 93210-20802-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP
90462-08046-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
