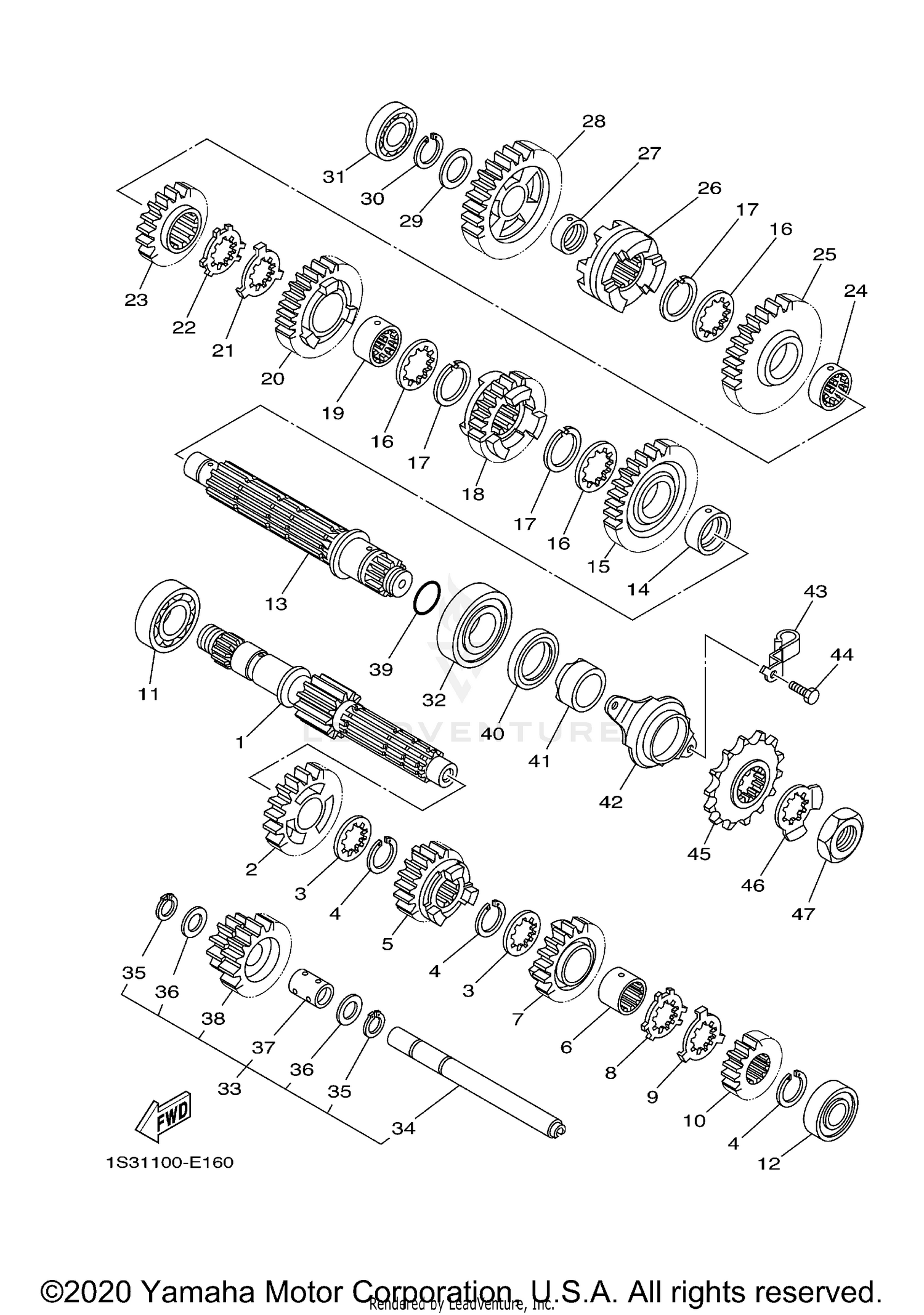

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAIN AXLE ASSY
1S3-17401-00-00
|
$238.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, 5TH PINION (24T)
1S3-17151-00-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER
90209-22008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93440-25084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, 3RD PNION (17T)
1S3-17131-00-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-22006-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, 4TH PINION (22T)
1S3-17141-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, CLAW
90214-22003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, CLAW
90214-22002-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, 2ND PINION (14T)
1S3-17121-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING (B6205)
93306-20501-00
Superseded by 93306-20541-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING
93306-00431-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DRIVE AXLE ASSY
1S3-17402-00-00
|
$234.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-28008-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, 2ND WHEEL (28T)
1S3-17221-00-00
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
90209-26008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
93440-28062-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, 4TH WHEEL (25T)
1S3-17241-00-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-26005-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, 3RD WHEEL (25T)
1PE-17231-00-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, CLAW
90214-26002-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, CLAW
90214-26003-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
GEAR, 5TH WHEEL (22T)
1S3-17251-00-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-26004-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GEAR, 1ST WHEEL (38T)
1S3-17211-00-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLUTCH, DOG
1S3-17285-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
90387-20021-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
GEAR, REVERSE WHEEL 2 (29T)
1S3-17253-00-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE (T=1.0)
90201-20276-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
CIRCLIP
99009-20400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING
93306-00415-00
Superseded by 93306-00423-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BEARING
93306-27803-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
COUNTER AXLE ASSY
1S3-17430-00-00
|
$193.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
AXLE, IDLE
1S3-17432-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
CIRCLIP, OUTER
93440-15012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLATE (T=1.0)
90201-152P4-00
Superseded by 90201-15701-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
COLLAR
90387-1504G-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
GEAR, REVERSE WHEEL1(12T/24T
1S3-17243-00-00
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
O-RING
93210-25001-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
OIL SEAL
93102-35393-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
COLLAR
90387-28009-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
PLATE, COVER
1S3-17471-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
CLAMP
90461-10011-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT
97022-06014-00
Superseded by 97012-06014-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
SPROCKET, DRIVE (14T)
9383G-14231-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
WASHER, LOCK
90215-25003-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
NUT
90179-22011-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
