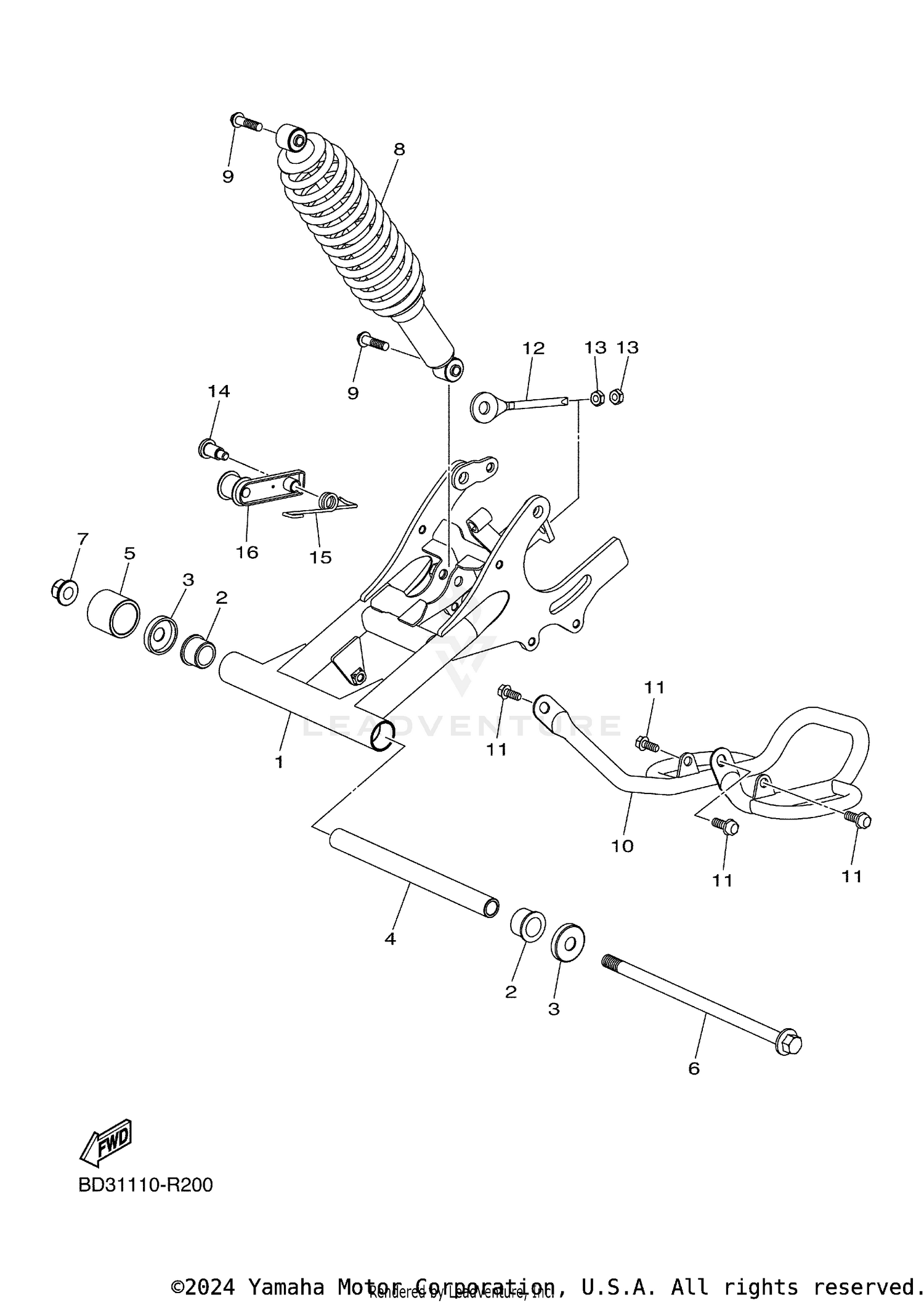

Rear Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
BD3-F2110-00-00
Superseded by BYS-F2110-00-00
|
$287.99 | ||
|
Unavailable |
|||
|
#2
BUSH 1
BD3-F2123-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, THRUST 1
BD3-F2128-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, DISTANCE
BD3-F2126-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAL, GUARD
BD3-F2151-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT 2
BD3-F1722-10-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT 1
BD3-F1535-10-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHOCK ABSORBER ASSY, REAR
BD3-F2210-00-00
|
$297.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
BD3-F4834-10-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUARD 1
BD3-F2361-00-00
Superseded by BD3-F2361-10-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
BD3-F3876-10-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#12
PULLER, CHAIN 1
BD3-F5388-10-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT 2
BD3-F1536-10-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
BD3-F3769-10-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, TENSIONER
BD3-F2169-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET, TENSIONER
BD3-F2183-10-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
