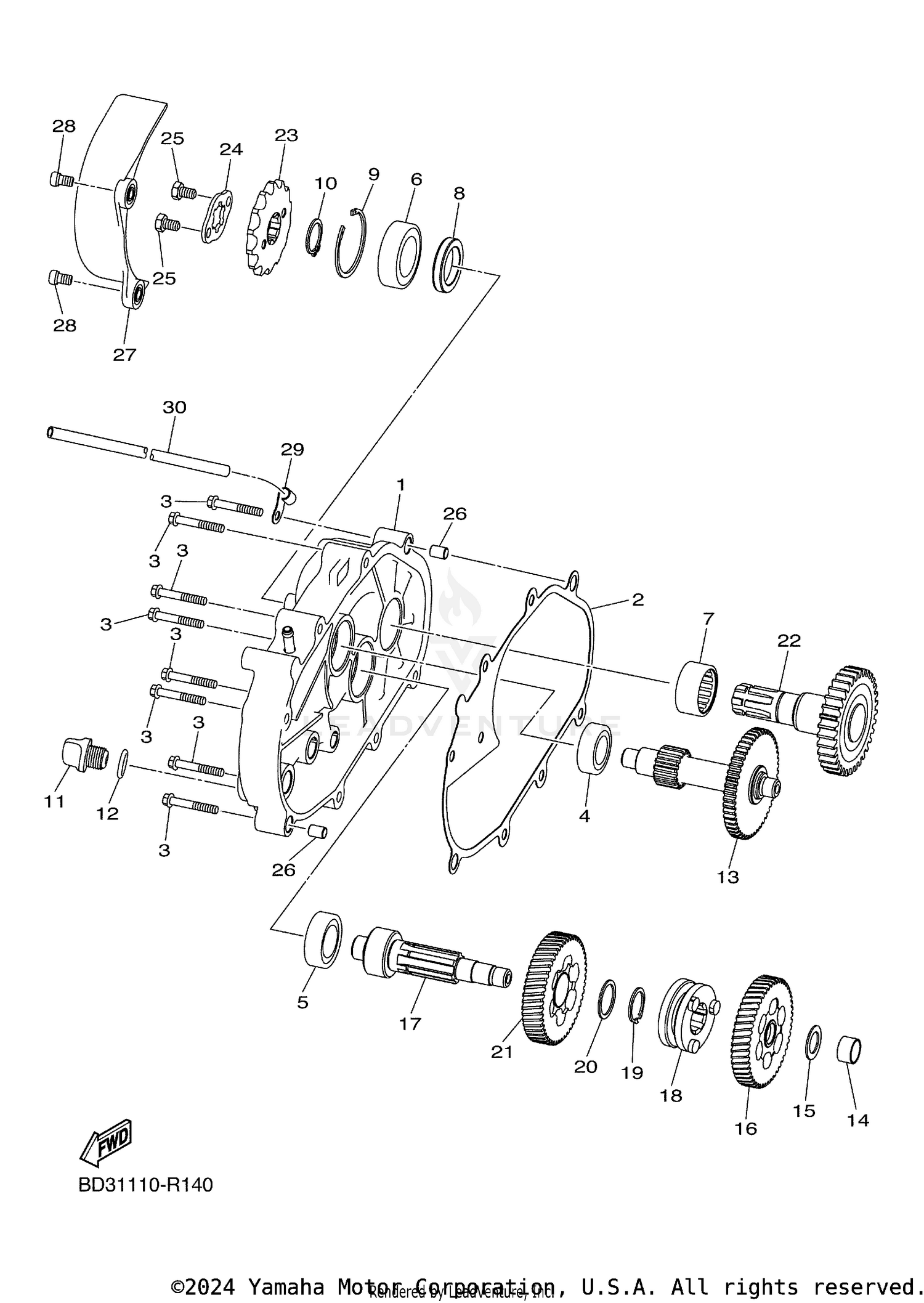

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE COVER ASSY 2
BD3-E5420-10-00
|
$253.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CRANKCASE COVER 2
BD3-E5461-00-00
Superseded by BD3-E5461-10-00
|
$21.99 | ||
|
Unavailable |
|||
|
#3
BOLT
BD3-G1148-10-00
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING 2
BD3-E1429-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
BD3-E4814-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
BD3-E5693-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING
BD3-E7678-00-00
Superseded by BD3-E7678-10-00
|
$86.99 | ||
|
Unavailable |
|||
|
#8
RING, SEAL
BD3-E4005-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP
BD3-E2842-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
BD3-E662A-00-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG, OIL
BD3-E5363-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
BD3-E4561-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COUNTER AXLE ASSY
BD3-E7430-00-00
|
$212.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
BD3-E1478-00-00
Superseded by BYS-E1478-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#15
WASHER
BD3-E3578-00-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, PRIMARY DRIVEN
BD3-E6151-00-00
|
$155.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
AXLE, DRIVE
BD3-E7421-00-00
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLUTCH, DOG
BD3-E7285-00-00
|
$147.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP 1
BD3-E551A-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
BD3-E3995-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GEAR, REVERSE WHEEL 2
BD3-E7253-00-00
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
DRIVE PINION ASSY
BD3-E7520-00-00
|
$220.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPROCKET, DRIVE
BD3-E7451-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE
BD3-E7446-10-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, STOPPER
BD3-E2299-10-00
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, DOWEL
BD3-E7498-00-00
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER, CHAIN CASE
BD3-E5418-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW
BD3-E4429-10-00
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#29
RETAINER
BD3-E5689-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOSE, BREATHER 1
BD3-E531A-00-00
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
