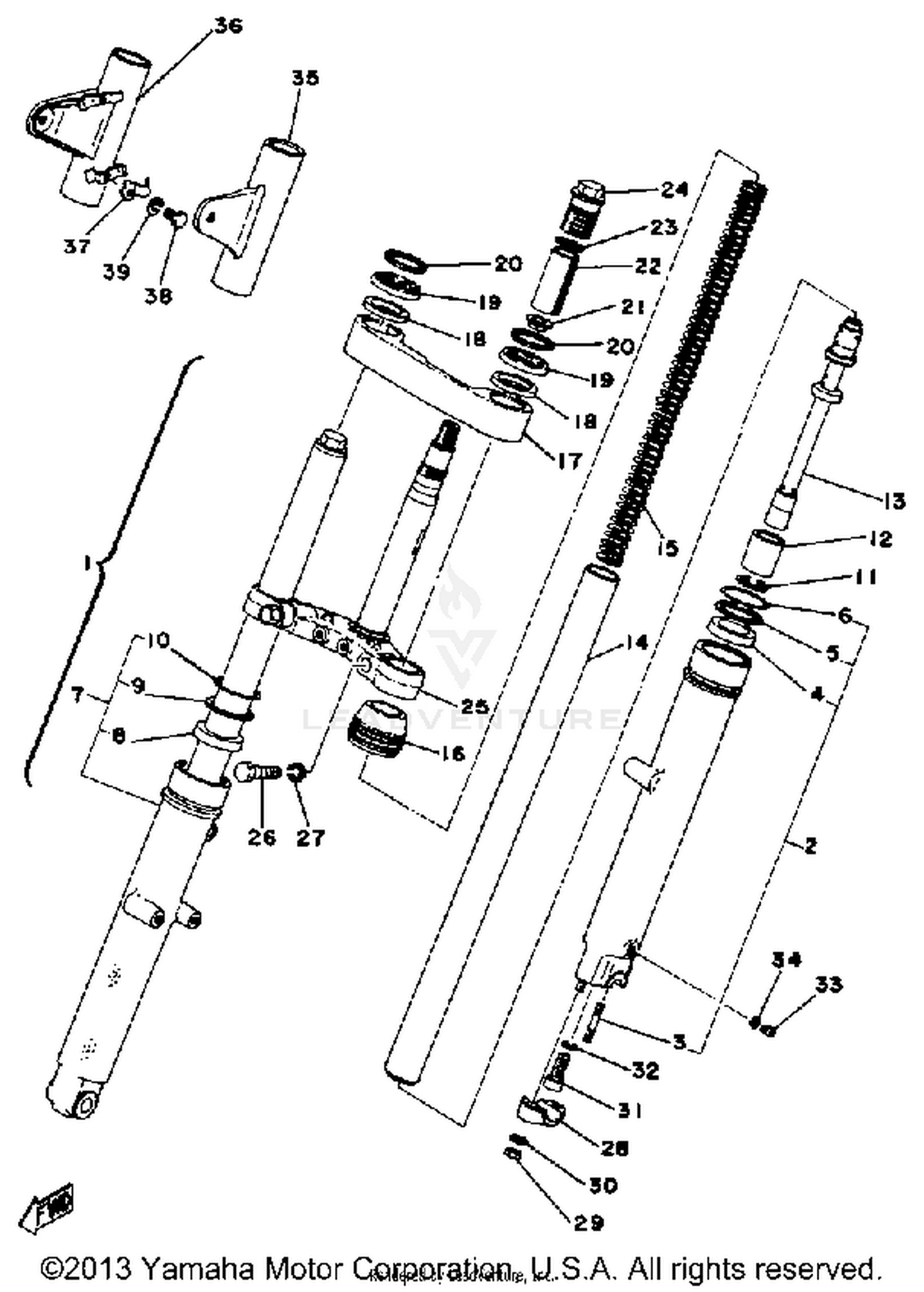

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
1A0-23101-01-00
|
$288.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
1A0-23126-01-00
|
$118.99 | ||
|
Unavailable |
|||
|
#3
BOLT, STUD
90116-08261-00
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
278-23145-51-00
Superseded by 584-23145-50-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, OIL SEAL
214-23146-00-00
|
$7.48 | ||
|
Unavailable |
|||
|
#6
CLIP, OIL SEAL
214-23156-00-00
|
$6.68 | ||
|
Unavailable |
|||
|
#7
TUBE, OUTER 2
1A0-23136-01-00
|
$123.99 | ||
|
Unavailable |
|||
|
#8
OIL SEAL
278-23145-51-00
Superseded by 584-23145-50-00
|
$62.99 | ||
|
Unavailable |
|||
|
#9
WASHER, OIL SEAL
214-23146-00-00
|
$7.48 | ||
|
Unavailable |
|||
|
#10
CLIP, OIL SEAL
214-23156-00-00
|
$6.68 | ||
|
Unavailable |
|||
|
#11
CIRCLIP, INNER
93450-30033-00
|
$5.49 | ||
|
Unavailable |
|||
|
#12
PISTON, FRONT FORK
434-23171-00-00
|
$10.18 | ||
|
Unavailable |
|||
|
#13
CYLINDER, FRTFRK
1A0-23170-01-00
|
$76.54 | ||
|
Unavailable |
|||
|
#14
TUBE, INNER 1
1A0-23124-01-00
|
$155.99 | ||
|
Unavailable |
|||
|
#15
SPRING, FRONT FORK (1A0-23141
1A1-23141-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#16
SEAL, DUST
584-23144-50-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, OUTER 1
1A0-23122-00-00
|
$15.90 | ||
|
Unavailable |
|||
|
#18
GASKET (LAMP STAY)
291-23163-61-00
|
$7.99 | ||
|
Unavailable |
|||
|
#19
GUIDE, COVER LOWER
2R8-23116-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#20
GUIDE, COVER UPPER
2R8-23115-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#21
SEAT, SPRING UPPER
256-23142-60-00
|
$21.99 | ||
|
Unavailable |
|||
|
#22
SPACER
214-23118-00-00
|
$5.24 | ||
|
Unavailable |
|||
|
#23
GASKET
214-23114-00-00
|
$6.48 | ||
|
Unavailable |
|||
|
#24
BOLT, CAP
366-23111-60-00
|
$39.99 | ||
|
Unavailable |
|||
|
#25
UNDER BRACKET
1A2-23340-30-33
|
$174.99 | ||
|
Unavailable |
|||
|
#26
BOLT 1
306-23346-60-00
|
$9.49 | ||
|
Unavailable |
|||
|
#27
WASHER, SPRING
92901-12100-00
Superseded by 92990-12100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOLDER, AXLE
306-23167-60-00
|
$12.92 | ||
|
Unavailable |
|||
|
#29
NUT, SELF-LOCKING
90185-08089-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
GASKET
509-23158-L0-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
COVER, UPPER 1
1A0-23121-01-33
|
$65.99 | ||
|
Unavailable |
|||
|
#36
COVER, UPPER 2
1A0-23131-01-33
|
$63.99 | ||
|
Unavailable |
|||
|
#37
STAY, LIGHT GUARD
1A0-23164-00-00
|
$6.04 | ||
|
Unavailable |
|||
|
#38
BOLT
97013-06012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
