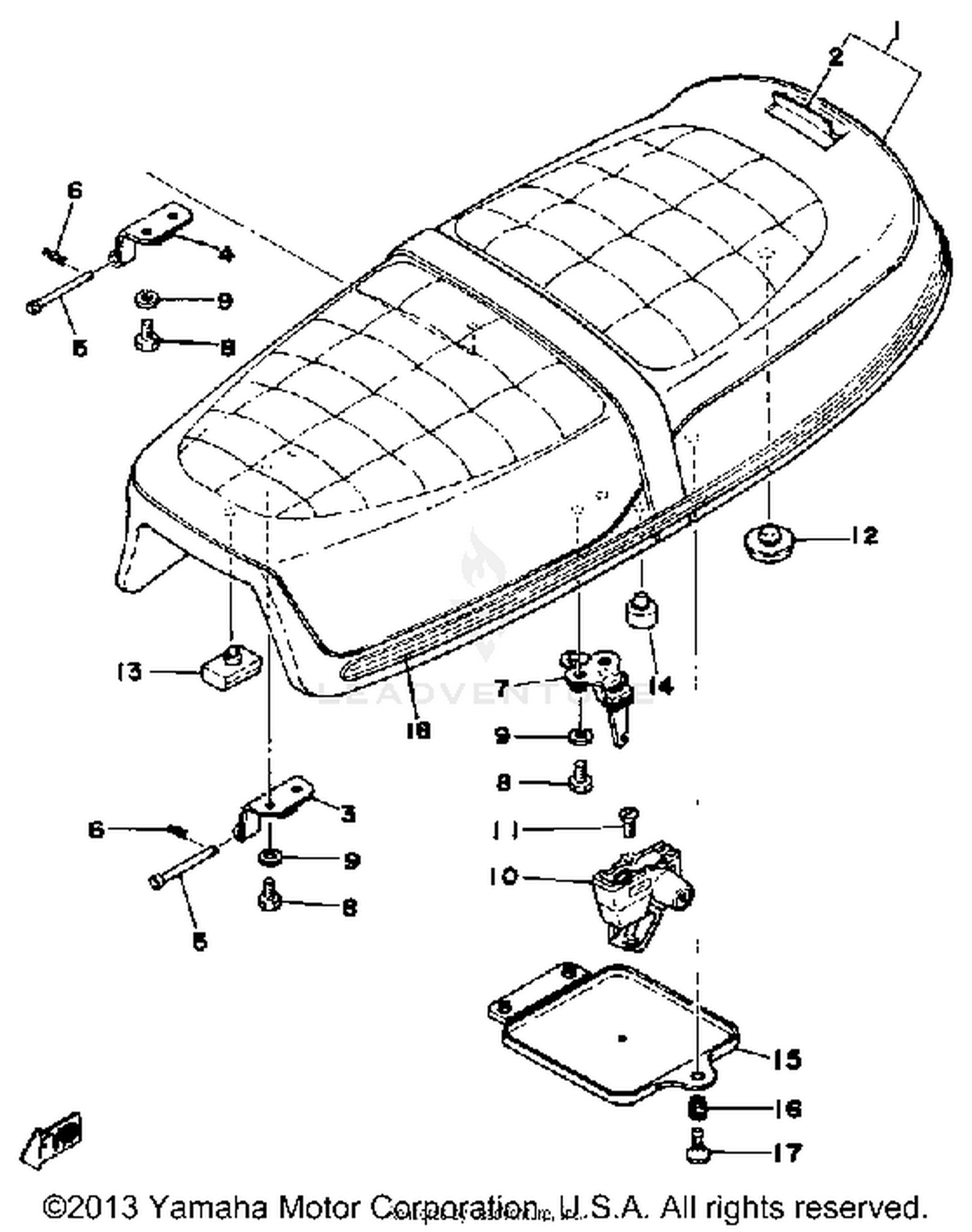

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEMI-DBL-SEAT ASSEMBLY
1A0-W2473-10-00
|
$208.99 | ||
|
Unavailable |
|||
|
#2
COVER, DOUBLE SEAT
1A0-24731-01-00
|
$48.99 | ||
|
Unavailable |
|||
|
#3
HINGE, SEAT
248-24726-00-33
|
$14.49 | ||
|
Unavailable |
|||
|
#4
HINGE, SEAT
1A0-24726-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#5
PIN, CLEVIS
91701-05055-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP
90468-10050-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, SEAT
371-24728-02-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
97013-06012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAT LOCK ASSEMBLY
584-24705-00-00
|
$188.99 | ||
|
Unavailable |
|||
|
#11
SCREW, FLAT HEAD
98706-06012-00
Superseded by 98707-06012-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PAD, SEAT
1L9-24741-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER, SEAT
214-24724-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
STOPPER, MAIN STAND
278-27114-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
LID
2R6-28185-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#16
GROMMET (341-28187-00)
90480-06007-00
|
$7.99 | ||
|
Unavailable |
|||
|
#17
PLUNGER
341-28188-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#18
RD400 SEATMOLD SET
1A0-24700-99-00
|
$6.88 | ||
|
Unavailable |
|||
