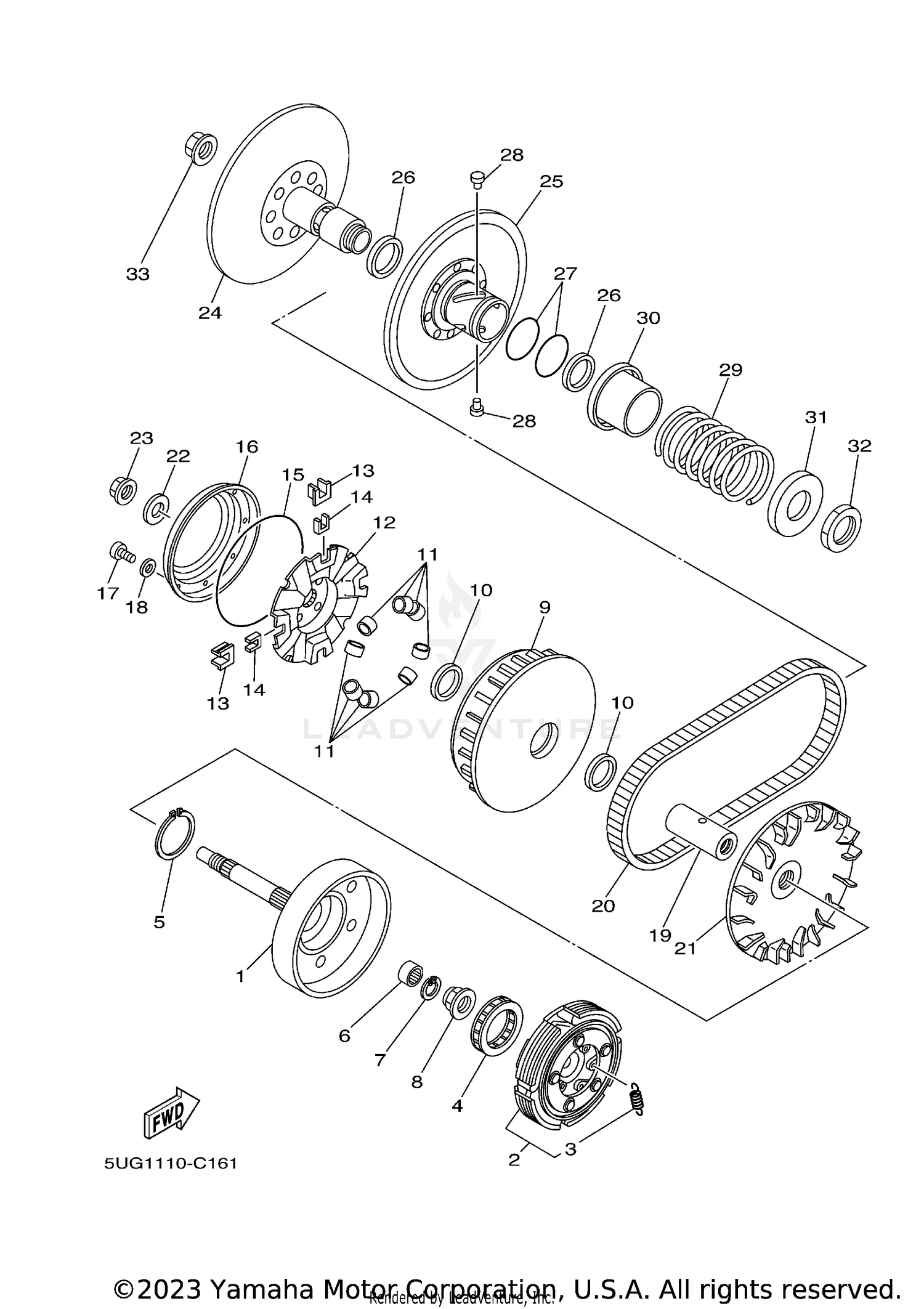

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH HOUSING COMP.
5KM-16611-10-00
|
$407.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLUTCH CARRIER ASSY
5KM-16620-00-00
|
$502.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, CLUTCH WEIGHT 1
5KM-16626-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING, ONE WAY
4SH-16664-00-00
|
$148.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93410-46079-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93315-21813-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP, INNER
93450-24062-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
90179-22005-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PRIMARY SLIDING SHEAVE COMP.
5UG-17620-00-00
|
$310.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL
93101-35001-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WEIGHT
5KM-17632-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAM
5KM-17623-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SLIDER
4WV-17653-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER 1
4WV-17654-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
93211-594A4-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
STOPPER
4WV-17639-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW,PANHEAD
90157-04088-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-047R9-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
5KM-17645-00-00
|
$107.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
V-BELT
5KM-17641-00-00
Superseded by 5KM-17641-01-00
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SHEAVE, PRIMARY FIXED
5KM-17611-00-00
|
$206.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-190T7-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
90179-16001-00
Superseded by 90179-16005-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SECONDARY FIXED SHEAVE COMP.
4WV-17660-10-00
|
$367.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SECONDARY SLIDING SHEAVE
4WV-17670-00-00
|
$263.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
OIL SEAL
93104-41119-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING
93210-44545-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN, GUIDE
4CW-17664-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPRING, COMPRESSION
90501-65001-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SEAT, SECONDARY SPRING
4WV-17684-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SEAT, SPRING
4WV-17644-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT
90170-36279-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT
90179-16001-00
Superseded by 90179-16005-00
|
$10.49 | ||
|
Unavailable |
|||
