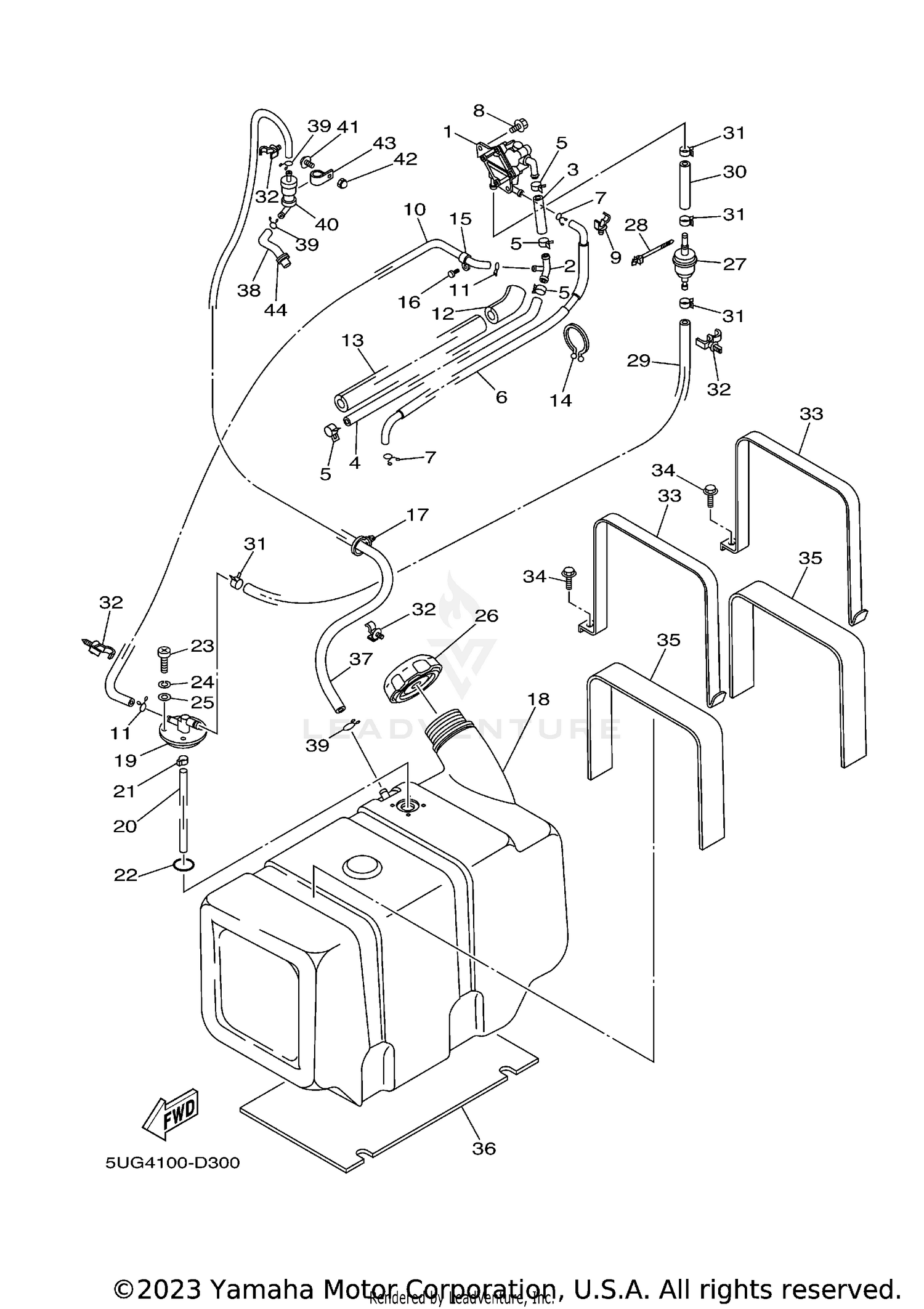

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL PUMP ASSY
5UG-13910-00-00
Superseded by 5UG-13910-01-00
|
$117.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WAY 3
90413-09001-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE
5UG-14294-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE, FUEL
5UG-14295-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP
90467-12053-00
Superseded by 90467-11044-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE, AIR
5UG-E3895-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95027-06016-00
Superseded by 90105-06696-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP
90464-12830-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE
5UG-14298-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Unavailable |
|||
|
#12
INSULATOR
5UG-14271-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
INSULATOR
5UG-14271-50-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
90464-23041-00
Superseded by 90464-25267-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
90464-11803-00
|
$1.15 | ||
|
Unavailable |
|||
|
#16
PLUG
90338-05834-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP
90464-25826-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#18
TANK, FUEL
5UG-F4111-01-00
|
$432.99 | ||
|
Unavailable |
|||
|
#19
PIPE, JOINT
5UG-24461-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIPE
JN3-F4313-00-00
Superseded by 5UG-E4298-10-00
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP
90467-07815-00
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING
93210-228C4-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN HEAD WITH WASHER
98507-05014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPRING
92907-05100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
CAP ASSY
5UG-24610-00-00
Superseded by BVG-24610-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#27
FILTER ASSY
JN6-F4560-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP
90464-38800-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIPE, FUEL 1
5UG-F4311-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIPE 3
5UG-F4313-00-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLIP
90467-12053-00
Superseded by 90467-11044-00
|
$7.49 | ||
|
Unavailable |
|||
|
#32
CLAMP
90464-12830-00
|
$1.40 | ||
|
Unavailable |
|||
|
#33
STAY, FUEL TANK 1
5UG-F4157-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE
90105-08878-00
Superseded by 90105-088B0-00
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
DAMPER, PLATE 1
5UG-F414H-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
DAMPER, PLATE 2
5UG-F414J-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIPE 2
5UG-24312-00-00
Superseded by 5UG-F4312-00-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#38
PIPE 4
5UG-24313-00-00
Superseded by 5UG-F4314-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Unavailable |
|||
|
#40
ROLL OVER VALVE ASSY
5RB-24180-00-00
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
SCREW, BIND
98907-05010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
NUT, CROWN
90176-05054-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
CLAMP
90461-15139-00
Superseded by 90464-15014-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#44
GROMMET
90480-15058-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
