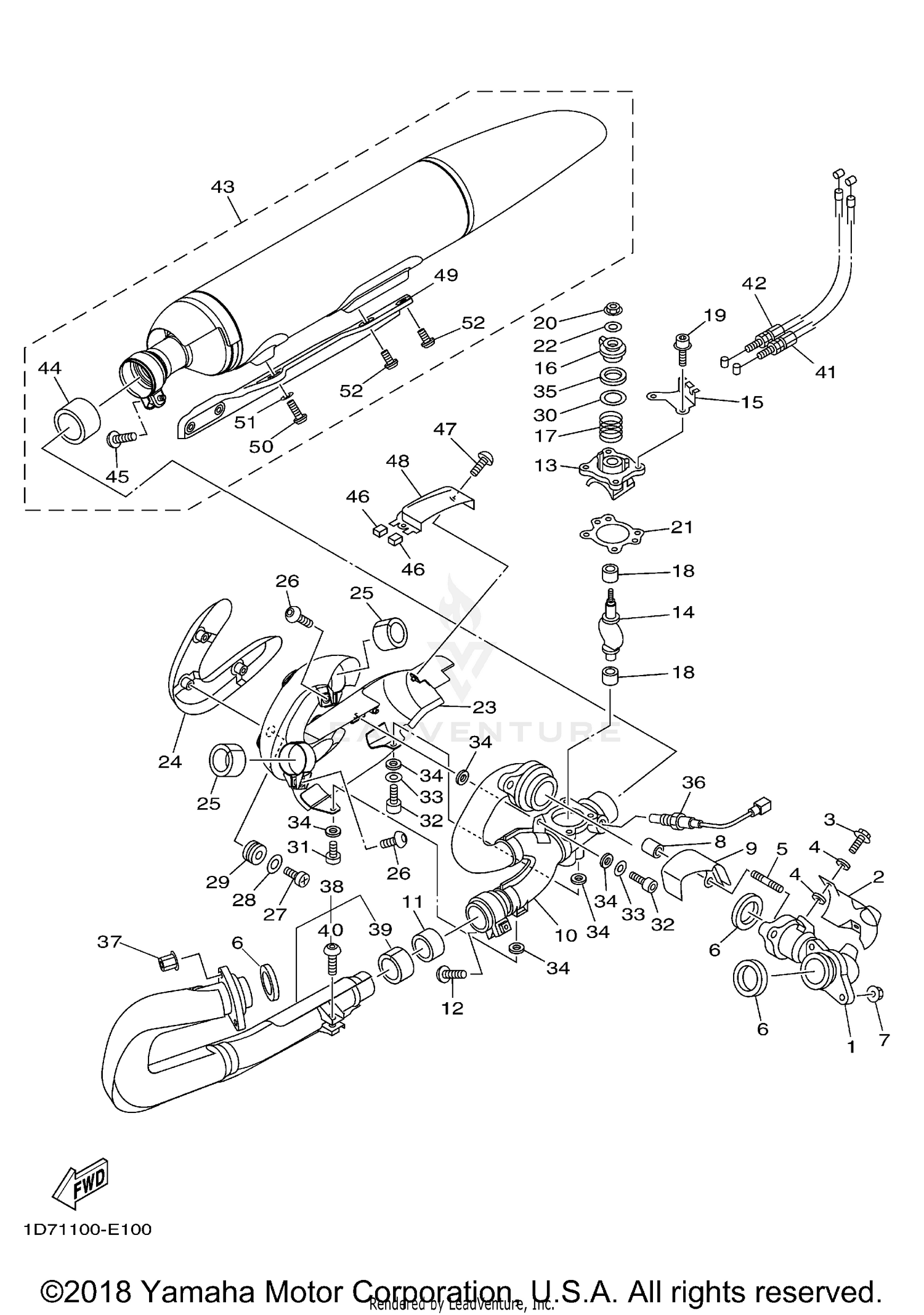

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, EXHAUST 1
1D7-14615-00-00
|
$220.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PROTECTOR, EXHAUST PIPE
1D7-14628-00-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
95880-06012-00
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-05015-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, STUD
95617-08630-00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, EXHAUST PIPE
3EG-14613-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, SELF-LOCKING
90185-08097-00
Superseded by 90185-08146-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
90179-08442-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, EXHAUST
1D7-14624-00-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
EXHAUST PIPE COMP.
1D7-14602-00-00
|
$400.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, SILENCER
5YU-14755-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, BUTTON HEAD
92014-08035-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOUSING
1D7-14811-00-00
Superseded by 1D7-14811-01-00
|
$141.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
ARM, SHAFT (VALVE)
1D7-14821-00-00
|
$192.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET
1D7-14849-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PULLEY
1D7-14865-00-00
Superseded by 1D7-14865-01-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING
1D7-14856-00-00
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
5VY-14638-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEXAGON SOCKET HEAD
90110-06025-00
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
90179-06M28-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET 3
1D7-14643-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLAIN
92990-06200-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#23
PROTECTOR, MUFFLER 1
1D7-14718-01-00
|
$418.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PROTECTOR, MUFFLER 2
1D7-14728-00-00
|
$271.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET, MUFFLER
1D7-14714-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, BUTTON HEAD
92014-08020-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, BIND
98904-06012-00
Superseded by 98980-06012-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-06081-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
GROMMET
90480-17001-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
VALVE, PLATE
5VY-14674-00-00
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, BIND
98904-06012-00
Superseded by 98980-06012-00
|
$7.99 | ||
|
Unavailable |
|||
|
#32
BOLT, HEXAGON SOCKET HEAD
91314-06016-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLAIN
92990-06200-00
|
$3.70 | ||
|
Unavailable |
|||
|
#34
WASHER, PLATE
90201-05015-00
|
$7.99 | ||
|
Unavailable |
|||
|
#35
COLLAR 2
5VY-14648-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
SENSOR, OXYGEN
1D7-8592A-00-00
|
$294.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
NUT
90179-08410-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
EXHAUST PIPE ASSY 2
1D7-14620-00-00
|
$544.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
GASKET, MUFFLER
1D7-14714-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#40
BOLT, BUTTON HEAD
92014-08020-00
|
$7.99 | ||
|
Unavailable |
|||
|
#41
CABLE, PULLEY 1
1D7-1133E-00-00
Superseded by 1D7-1133E-01-00
|
$72.99 | ||
|
Unavailable |
|||
|
#42
CABLE, PULLEY 2
1D7-1133F-00-00
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
MUFFLER ASSY 1
1D7-14710-00-00
Superseded by 1D7-14710-01-00
|
$1,147.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
GASKET, MUFFLER
5YU-14714-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT, BUTTON HEAD
92014-08035-00
|
$7.99 | ||
|
Unavailable |
|||
|
#46
DAMPER, LOCATING 1
3MA-24181-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
BOLT, BUTTON HEAD
92014-06010-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
PROTECTOR, EXHAUST
1D7-14826-00-00
|
$147.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
MUFFLER STAY SUB-KUMI
1D7-21440-00-00
|
$368.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
BOLT HEX SOCKET BUTTON
90111-080030-00
|
|||
|
Unavailable |
|||
|
#51
WASHER, PLATE
90201-08048-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
BOLT HEX SOCKET BUTTON
90111-080029-00
|
|||
|
Unavailable |
|||
