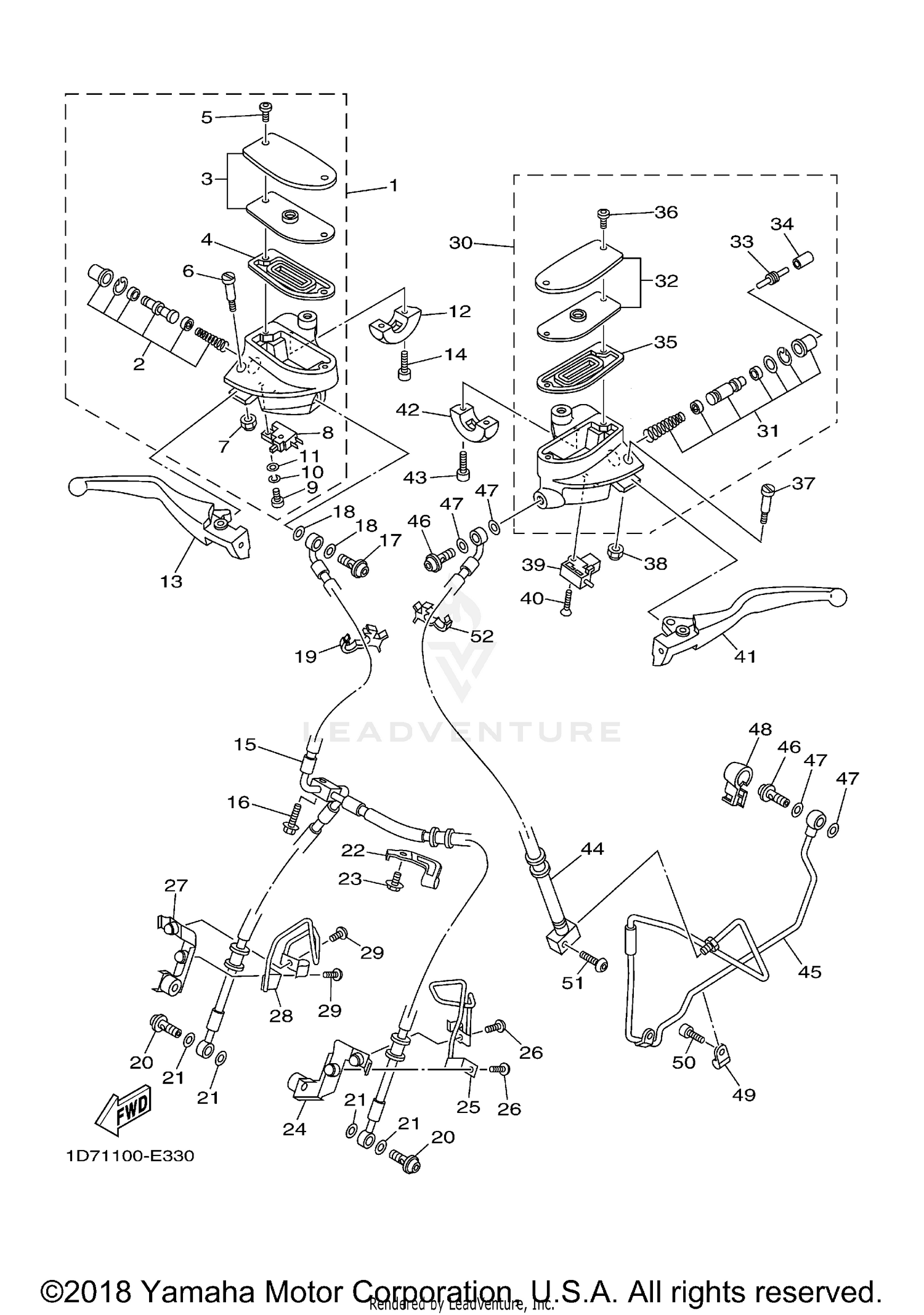

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB ASSY
1D7-W2587-00-00
|
$981.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
5PX-W0041-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
RESERVOIR CAP SET
1D7-W2585-00-00
|
$270.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
DIAPHRAGM, RESERVOIR
1D7-25854-01-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
1D7-2589H-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, LEVER
1D7-2589F-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, U
95604-06100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FRONT STOP SWITCH ASSY
4HM-83980-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW,PANHEAD
98502-04012-00
Superseded by 98517-04012-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92907-04100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
92907-04600-00
|
$1.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER
1D7-26467-00-00
|
$248.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEVER 2
1D7-83922-00-00
|
$272.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEXAGON SOCKET HEAD
91314-06025-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE, BRAKE 1
1D7-25872-00-00
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-06096-00
Superseded by 90105-06791-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, UNION
90401-10172-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET
90430-10005-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP
90464-15192-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, UNION
90401-10172-00
|
$5.49 | ||
|
Unavailable |
|||
|
#21
GASKET
90430-10005-00
|
$8.99 | ||
|
Unavailable |
|||
|
#22
HOLDER, BRAKE HOSE 2
1D7-25876-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
90105-06020-00
Superseded by 95817-06014-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOLDER, BRAKE HOSE 1
1D7-25875-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
STAY
1D7-25192-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, HEX. SOCKET BUTTON
90111-06016-00
Superseded by 90111-06031-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOLDER, BRAKE HOSE
1D7-25886-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
STAY 2
1D7-2519F-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, HEX. SOCKET BUTTON
90111-06016-00
Superseded by 90111-06031-00
|
$7.99 | ||
|
Unavailable |
|||
|
#30
MASTER CYLINDER SUB ASSY
1D7-W2645-00-00
|
$981.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
CYLINDER KIT, MASTER (CLUTCH
1D7-W0099-00-00
Superseded by 5JW-W0099-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
RESERVOIR CAP SET
1D7-W2585-50-00
|
$292.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
ROD, PUSH
1D7-26464-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BUSH
3GM-26455-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
DIAPHRAGM, RESERVOIR
1D7-25854-11-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW
1D7-2589H-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#37
BOLT, LEVER
1D7-2589F-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#38
NUT, U
95604-06100-00
|
$7.99 | ||
|
Unavailable |
|||
|
#39
SWITCH
3YX-82917-01-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
SCREW, COUNTERSUNK
90151-03002-00
Superseded by 90151-03003-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
LEVER 1
1D7-83912-00-00
|
$324.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
HOLDER
1D7-26467-50-00
|
$248.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, HEXAGON SOCKET HEAD
91314-06025-00
|
$7.99 | ||
|
Unavailable |
|||
|
#44
HOSE, CLUTCH 1
1D7-26472-00-00
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
HOSE, CLUTCH 2
1D7-26473-00-00
|
$148.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT, UNION
90401-10172-00
|
$5.49 | ||
|
Unavailable |
|||
|
#47
GASKET
90430-10005-00
|
$8.99 | ||
|
Unavailable |
|||
|
#48
COVER
1D7-26477-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
HOLDER
1D7-26475-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
BOLT, HEXAGON SOCKET HEAD
91314-06014-00
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#51
BOLT, HEX. SOCKET BUTTON
90111-06010-00
Superseded by 90111-06146-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#52
CLAMP
90464-15192-00
|
$7.99 | ||
|
Unavailable |
|||
