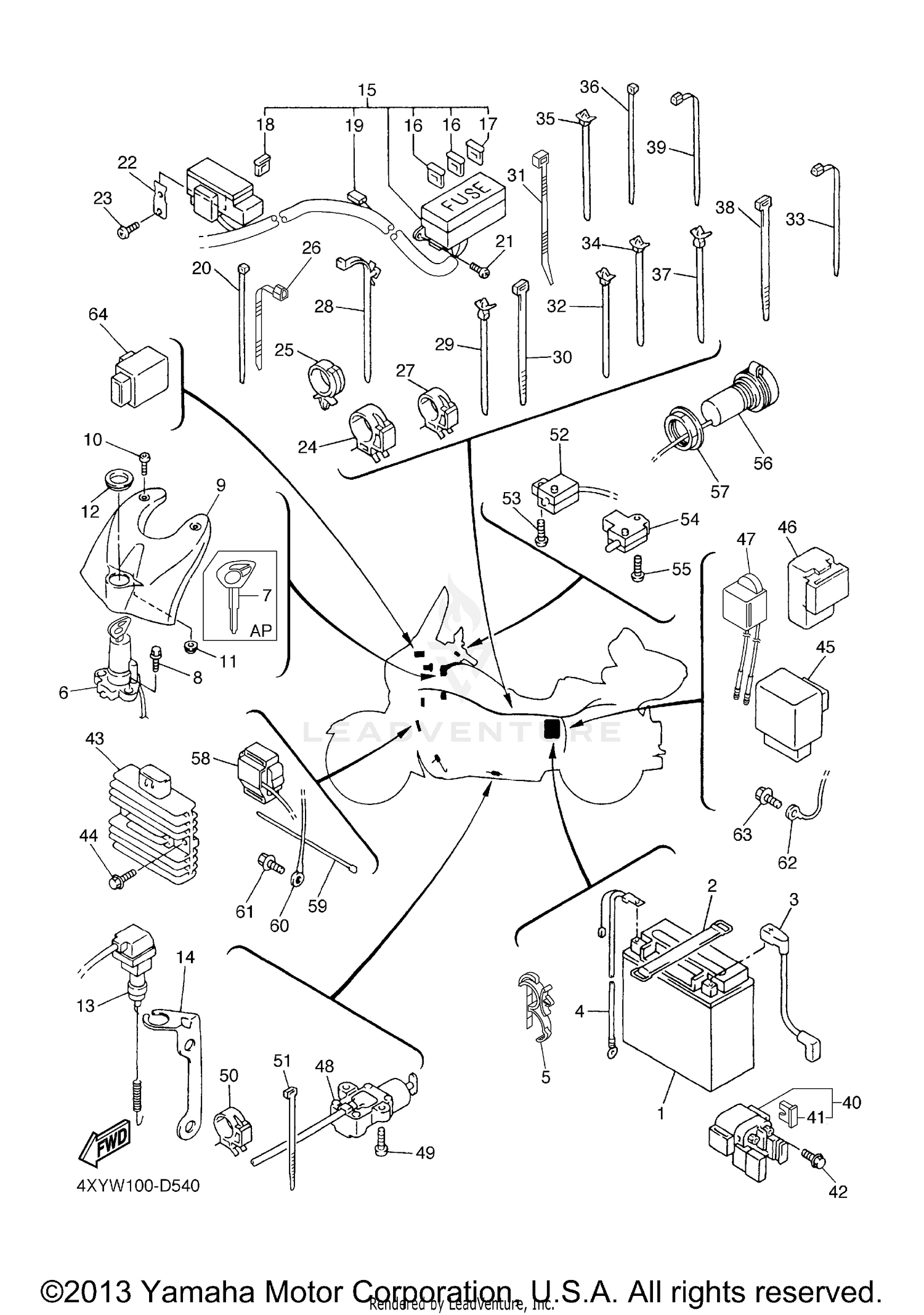

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
YTX20LBS YUASA BATT
BTY-YTX20-LB-S0
Superseded by YTX-20LBS-00-00
|
$165.99 | ||
|
Unavailable |
|||
|
#2
BAND, BATTERY
120-82131-00-00
Superseded by 7H3-82131-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WIRE, PLUS LEAD
4NK-82115-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WIRE, MINUS LEAD
1D6-82116-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP
90464-18246-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
MAIN SWITCH STEERING LOCK
4XY-82501-10-00
Superseded by 4XY-82501-21-00
|
$248.99 | ||
|
Unavailable |
|||
|
#7
BLANK KEY
5PX-82511-09-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
90109-080G5-00
Superseded by 90109-08196-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, SWITCH
4XY-8291G-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
90149-06264-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GROMMET
90480-01558-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET
4XY-82545-00-00
Superseded by 4XY-82545-01-00
|
$15.49 | ||
|
Unavailable |
|||
|
#13
STOP SWITCH ASSY
4XY-82530-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
STAY, STOP SWITCH
4XY-82539-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WIRE HARNESS ASSY
4XY-82590-10-00
|
$370.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
FUSE (10A-BL)
42X-82151-00-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
FUSE (15A-BL)
36Y-82151-00-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#18
FUSE (5A-BL)
1NL-82151-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
DIODE ASSY
3WP-81980-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP
90464-16061-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, BIND
98907-06012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
STAY, RELAY
4XY-81953-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP
90464-25217-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP
90464-07209-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP
90464-15195-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLAMP
90464-20191-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP
90464-20213-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLAMP
90464-12036-00
Superseded by 90464-10112-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BAND
1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLAMP
90464-35132-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLAMP
90464-12089-00
Superseded by 90464-10112-00
|
$7.49 | ||
|
Unavailable |
|||
|
#33
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.15 | ||
|
Unavailable |
|||
|
#34
CLAMP
90464-10112-00
|
$7.49 | ||
|
Unavailable |
|||
|
#35
CLAMP
90464-12036-00
Superseded by 90464-10112-00
|
$7.49 | ||
|
Unavailable |
|||
|
#36
CLAMP
90464-16061-00
|
$7.49 | ||
|
Unavailable |
|||
|
#37
CLAMP
90464-12036-00
Superseded by 90464-10112-00
|
$7.49 | ||
|
Unavailable |
|||
|
#38
BAND
1UA-82591-00-00
|
$4.60 | ||
|
Unavailable |
|||
|
#39
CLAMP
90464-13077-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
STARTER RELAY ASSY (RC19-005)
4BH-81940-02-00
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
FUSE (30A-BL)
1AE-82151-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, FLANGE
95027-06008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
RECTIFIER & REGULATOR ASSY
4XY-81960-00-00
|
$172.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT, FLANGE
95807-06020-00
Superseded by 95817-06020-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#45
RELAY ASSY
5EA-81950-00-00
Superseded by 5EA-81950-01-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
RELAY ASSY (1UY-92)
1UY-81950-92-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
THERMO SWITCH ASSY
5FU-82560-20-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
SWITCH, SIDE STAND
3LD-82566-50-00
Superseded by 3LD-82566-51-00
|
$47.99 | ||
|
Unavailable |
|||
|
#49
SCREW, PAN HEAD
90157-05079-00
Superseded by 98507-05014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
CLAMP
90464-10190-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
BAND
1UA-82591-00-00
|
$4.60 | ||
|
Unavailable |
|||
|
#52
FRONT STOP SWITCH ASSY
4XY-83980-10-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
SCREW, BIND
98907-04014-00
|
$0.35 | ||
|
Available to order. Add to View Price |
|||
|
#54
SWITCH
4XY-82917-00-00
|
$145.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
SCREW, BIND
98907-04025-00
|
$0.25 | ||
|
Available to order. Add to View Price |
|||
|
#56
TERMINAL COMP.
4XY-8254B-00-00
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
NUT
4XY-82114-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
SENSOR, LEAN ANGLE
4BH-82576-01-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
CLAMP
90464-16061-00
|
$7.49 | ||
|
Unavailable |
|||
|
#60
WIRE, EARTH LEAD
4XY-8232Y-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
BOLT,FLANGE
95807-06010-00
Superseded by 95817-06010-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#62
WIRE, EARTH LEAD
4XY-82519-01-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
BOLT,FLANGE
95807-06010-00
Superseded by 95817-06010-00
|
$4.45 | ||
|
Unavailable |
|||
|
#64
RELAY ASSY (4XY-00)
4XY-81950-00-00
|
$107.99 | ||
|
Available to order. Add to View Price |
|||
