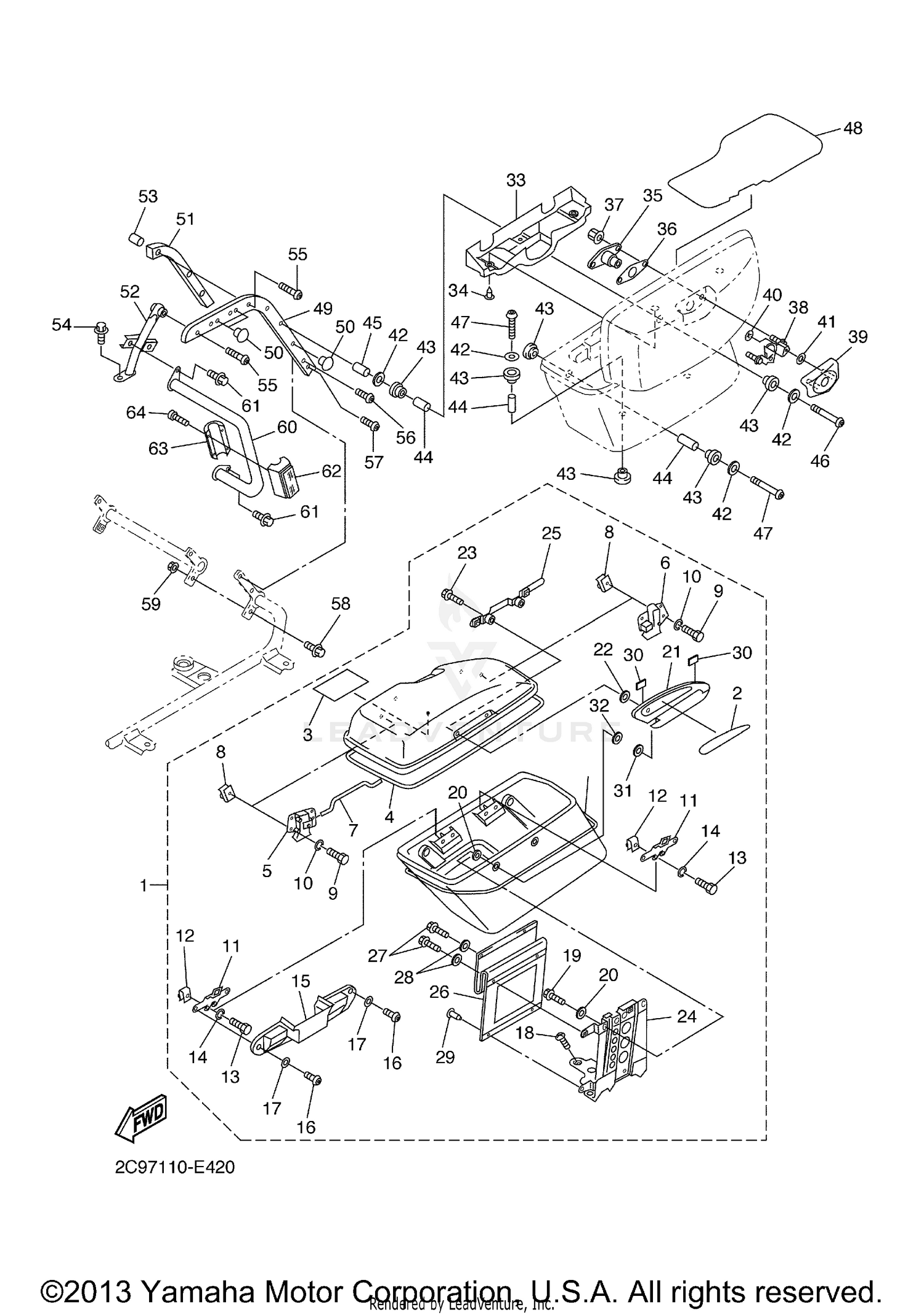

Saddlebag 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SADDLEBAG COMP, 1
2C9-Y2843-00-P0
|
$1,300.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ORNAMENT 1
4XY-2847A-80-00
|
$87.03 | ||
|
Available to order. Add to View Price |
|||
|
#3
LABEL, CAUTION
4XY-28446-01-00
Superseded by 4XY-28446-02-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL 1
4XY-28428-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOOK 3
4XY-28494-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOOK 4
4XY-28495-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
LEVER
4XY-2841A-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, SPRING
90183-05024-00
Superseded by 90183-051A0-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEXAGON
97007-05012-00
Superseded by 97017-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOOK 2
4XY-28498-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, SPRING
90183-05024-00
Superseded by 90183-051A0-00
|
$3.60 | ||
|
Unavailable |
|||
|
#13
BOLT
97007-05016-00
Superseded by 97017-05016-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Unavailable |
|||
|
#15
COVER 3
4XY-2843J-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, BUTTON HEAD
92017-05008-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Unavailable |
|||
|
#18
SCREW, TAPPING
97707-50020-00
Superseded by 90167-05078-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, BUTTON HEAD
92017-05014-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-054K4-00
Superseded by 90201-05556-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
HINGE 1
4XY-28444-10-00
|
$245.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90202-08125-00
Superseded by 90202-10120-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, BUTTON HEAD
92017-05020-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#24
REINFORCEMENT 1
4XY-28427-00-00
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE 5
4XY-2847H-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
STOPPER, OPEN
4XY-2845B-00-00
|
$163.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, BUTTON HEAD
92017-05014-00
|
$4.00 | ||
|
Unavailable |
|||
|
#28
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Unavailable |
|||
|
#29
RIVET
90269-05039-00
Superseded by 90269-05055-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
PLATE, RUBBER 4
4XY-28499-00-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLATE
90201-08326-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
SEAL 2
4XY-28429-00-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#33
COVER LOCK ASSY 2
4XY-2849K-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
RIVET
90269-06081-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
LOCK ASSY 3
4XY-W2843-00-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
PLATE, RUBBER 5
4XY-2845J-00-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#37
NUT, U FLANGE
95607-05200-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
PLATE 6
4XY-2849H-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
COVER 5
4XY-2842A-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT, SPRING
90183-04005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
DAMPER
4KJ-28371-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER, PLATE
90201-065G8-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
GROMMET
90480-20447-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
COLLAR
90387-084R5-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
COLLAR
90387-0811N-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT, BUTTON HEAD
92017-06055-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#47
BOLT, BUTTON HEAD
92017-06035-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#48
SEAT 2
4XY-2848K-00-00
Superseded by 4XY-2848K-01-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
FRAME, SADDLEBAG 1
4XY-28473-00-00
|
$229.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
PLUG
90338-07259-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#51
DAMPER 1
1D6-28415-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
STAY, FRONT GUARD 1
4YE-28413-02-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
COLLAR
90387-0811N-00
|
$16.99 | ||
|
Unavailable |
|||
|
#54
BOLT, FLANGE
95807-08014-00
Superseded by 95817-08014-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
BOLT, BUTTON HEAD
90111-08021-00
Superseded by 92014-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#56
BOLT, BUTTON HEAD
92014-08016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#57
BOLT, BUTTON HEAD
92014-08020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#58
BOLT,FLANGE (JN5)
95827-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#59
NUT
95307-08800-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#60
GUARD, SADDLEBAG 1
4XY-2841K-00-00
|
$261.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
BOLT, FLANGE
95814-08016-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#62
REFLECTOR, REAR 1
4YE-85131-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
BRACKET, REFLECTOR 1
4YE-85132-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
SCREW, TAPPING
97707-30514-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
