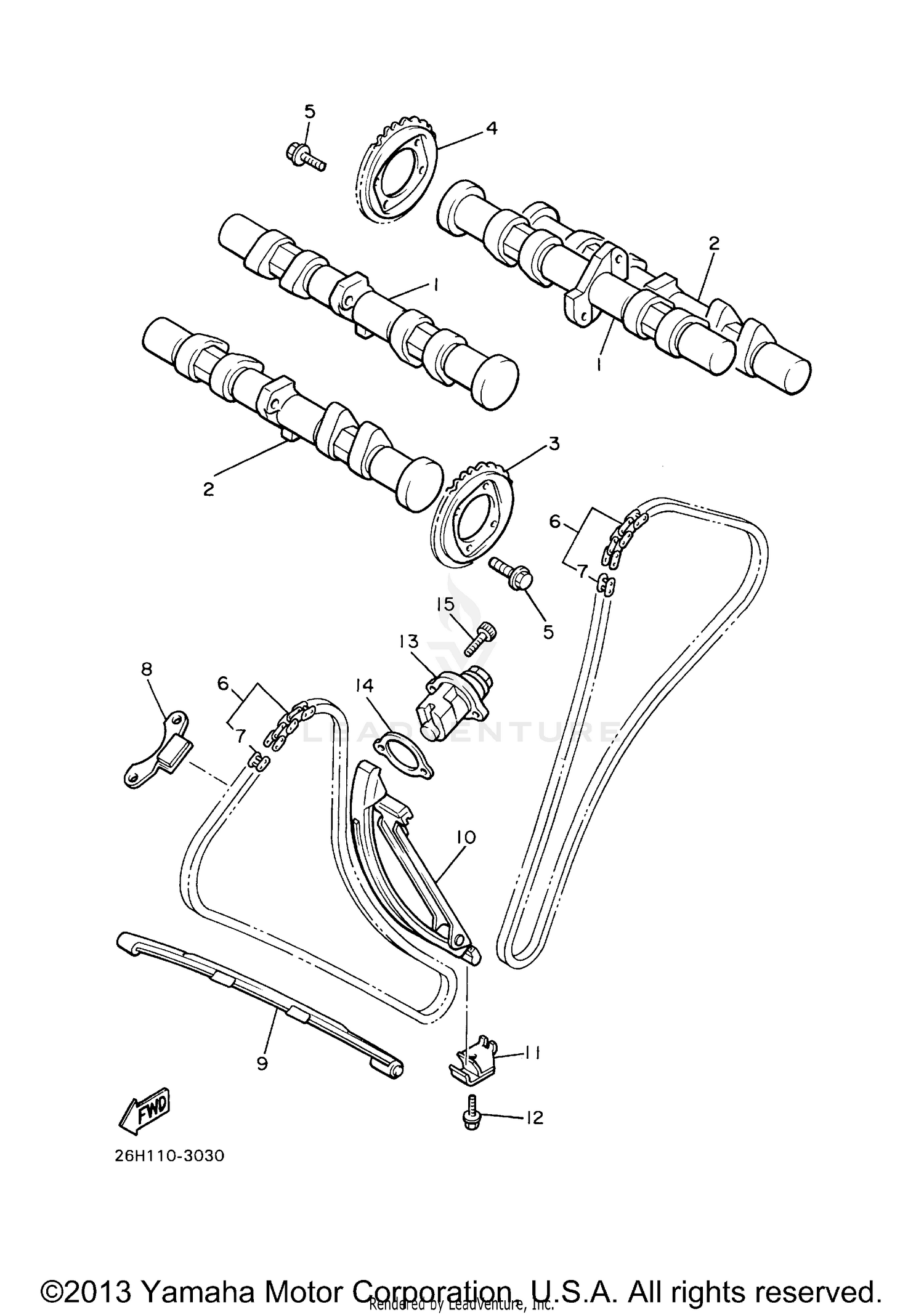

Camshaft Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT 1
2WT-12171-00-00
|
$238.99 | ||
|
Unavailable |
|||
|
#2
CAMSHAFT 2
1NL-12181-00-00
|
$305.99 | ||
|
Unavailable |
|||
|
#3
SPROCKET, CAM CHAIN
26H-12177-01-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPROCKET, CAM CHAIN
26H-12176-02-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
90105-07342-00
Superseded by 90105-07004-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CHAIN (D.I.D 219FTS118LL)
94590-44118-00
Superseded by 9Y58A-81117-00
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CHAIN (D.I.D 219FTS118LL)
9Y580-81117-00
Superseded by 9Y58A-81117-00
|
$94.99 | ||
|
Unavailable |
|||
|
#8
GUIDE, STOPPER 2
26H-12241-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER, CHAIN 1
26H-12251-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER, CHAIN 2
26H-12252-00-00
|
$161.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, GUIDE STOPPER 1
26H-12233-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95817-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
TENSIONER ASSY, CAM CHAIN
26H-12210-03-00
|
$210.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, TENSIONER CASE
3JP-12213-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
