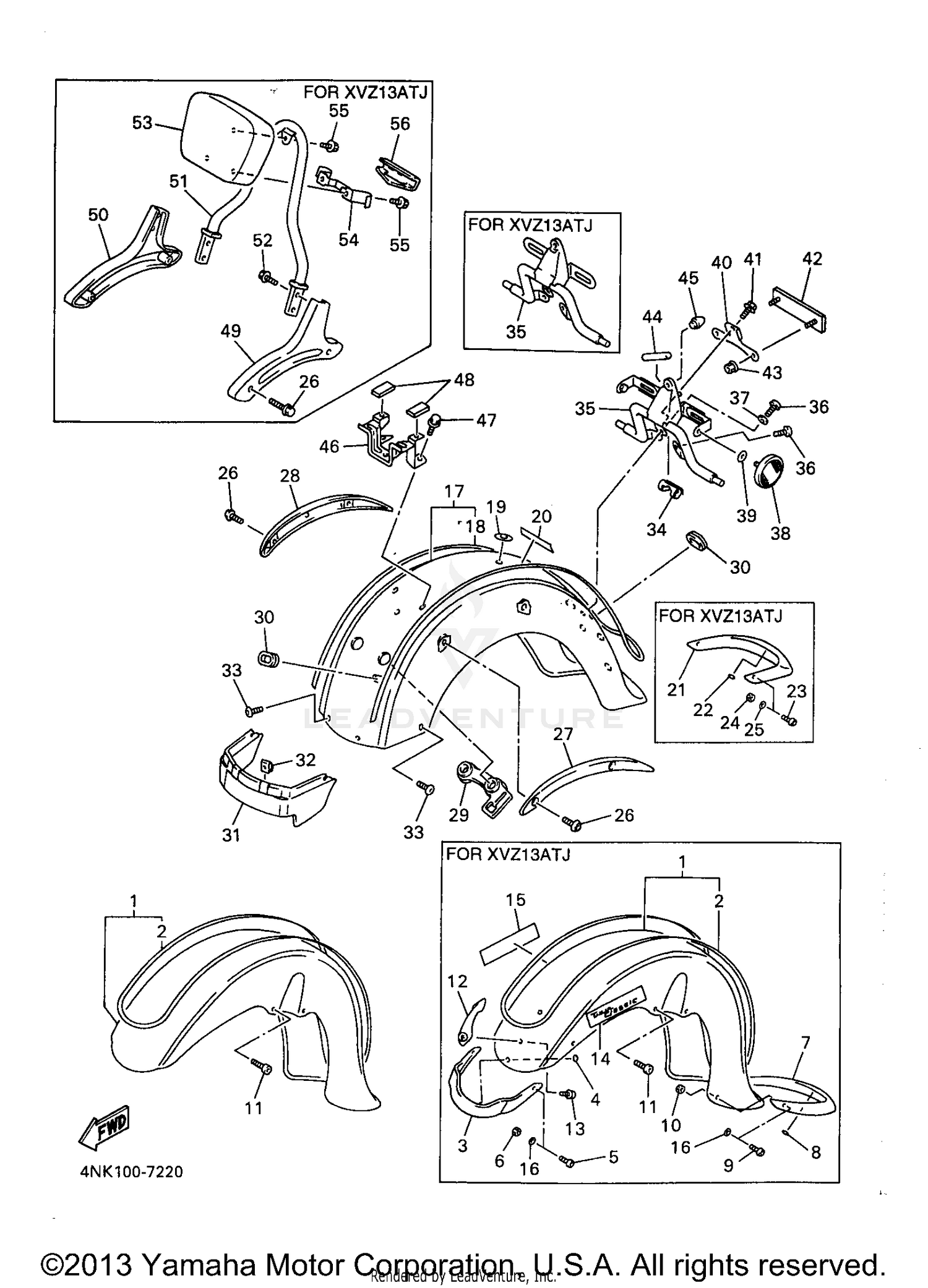

Fender Diagram

Item MSRP Qty
#1 FRONT FENDER ASSEMBLY
4NK-Y2150-50-2X
 $787.99
Unavailable
# FRONT FENDER ASSEMBLY
4NK-Y2150-40-3X
 $746.99
Unavailable
# FRONT FENDER ASSEMBLY
4NK-Y2150-60-JW
 $815.99
Unavailable
# FRONT FENDER ASSEMBLY
4NL-Y2150-60-2X
 $690.99
Unavailable
# FRONT FENDER ASSEMBLY
4NL-Y2150-70-3X
 $854.99
Available to order.
Add to View Price
#2 GRAPHIC SET, FRONT FENDER
4NK-21570-11-00
 $174.99
Unavailable
# GRAPHIC SET, FRONT FENDER
4NK-21570-01-00
 $219.99
Unavailable
# GRAPHIC SET, FRONT FENDER
4NK-21570-30-00
 $147.99
Unavailable
# GRAPHIC SET, FRONT FENDER
4NL-21570-20-00
 $119.99
Unavailable
# GRAPHIC SET, FRONT FENDER
4NL-21570-10-00
 $236.99
Unavailable
#3 FLAP 2
4NL-21561-10-00
Superseded by 4NL-21561-11-00
 $352.99
Available to order.
Add to View Price
#4 NUT, SPRING
90183-06008-00
 $7.49
Available to order.
Add to View Price
#5 BOLT, BUTTON HEAD
92014-05010-00
 $7.49
Available to order.
Add to View Price
#6 NUT
95380-05600-00
 $7.49
Available to order.
Add to View Price
#7 FLAP, FRONT FENDER
4NL-21521-10-00
 $201.99
Available to order.
Add to View Price
#8 NUT, SPRING
90183-06008-00
 $7.49
Unavailable
#9 BOLT, BUTTON HEAD
92014-05010-00
 $7.49
Unavailable
#10 NUT
95380-05600-00
 $7.49
Unavailable
#11 BOLT, HEXAGON SOCKET HEAD
91314-08025-00
 $7.49
Available to order.
Add to View Price
#12 MASCOT
4NL-21577-00-00
 $67.99
Available to order.
Add to View Price
#13 SCREW,PAN
90159-06107-00
Superseded by 98517-06012-00
 $3.55
Available to order.
Add to View Price
#14 EMBLEM 3
4NL-2152A-10-00
 $93.99
Unavailable
#15 EMBLEM
4NL-21578-10-00
 $102.99
Unavailable
#16 SEAL 1
4NL-21575-10-00
 $6.49
Available to order.
Add to View Price
#17 REAR FENDER C0MP.
4NK-Y2161-A0-JW
 $1,036.99
Unavailable
# REAR FENDER C0MP.
4NK-Y2161-60-4X
 $1,142.99
Unavailable
# REAR FENDER C0MP.
4NK-Y2161-70-5X
 $721.99
Unavailable
# REAR FENDER C0MP.
4NL-Y2161-00-0X
 $1,064.99
Unavailable
# REAR FENDER C0MP.
4NL-Y2161-10-6X
 $843.99
Unavailable
#18 GRAPHIC SET, REAR FENDER
4NK-2165A-11-00
 $167.99
Unavailable
# GRAPHIC SET, REAR FENDER
4NK-2165A-01-00
 $224.99
Unavailable
# GRAPHIC SET, REAR FENDER
4NL-2165A-10-00
 $217.99
Unavailable
# GRAPHIC SET, REAR FENDER
4NK-2165A-30-00
 $164.99
Unavailable
# GRAPHIC SET, REAR FENDER
4NL-2165A-20-00
 $159.99
Unavailable
#19 SEAL 2
4NK-21735-00-00
 $6.49
Available to order.
Add to View Price
#20 EMBLEM, YAMAHA
99236-00080-00
Superseded by 99246-00080-00
 $18.99
Available to order.
Add to View Price
# EMBLEM, YAMAHA
99237-00080-00
Superseded by 99247-00080-00
 $14.99
Available to order.
Add to View Price
# EMBLEM, YAMAHA
99231-00080-00
Superseded by 99241-00080-00
 $12.99
Available to order.
Add to View Price
#21 FLAP
4NL-21621-10-00
 $227.99
Available to order.
Add to View Price
#22 NUT, SPRING
90183-06008-00
 $7.49
Unavailable
#23 BOLT, BUTTON HEAD
92014-05010-00
 $7.49
Unavailable
#24 NUT
95380-05600-00
 $7.49
Unavailable
#25 SEAL 1
4NL-21575-10-00
 $6.49
Unavailable
#26 BOLT, BUTTON HEAD
92014-08025-00
 $6.49
Available to order.
Add to View Price
# BOLT, WITH WASHER
90119-08023-00
Superseded by 97527-08516-00
 $2.00
Available to order.
Add to View Price
#27 STAY 1
4NK-2164F-00-00
 $156.99
Unavailable
#28 STAY 2
4NK-2164G-00-00
 $156.93
Unavailable
#29 DAMPER
4NK-21649-00-00
 $25.99
Available to order.
Add to View Price
#30 GROMMET
90480-15061-00
 $7.49
Available to order.
Add to View Price
#31 FLAP
4NK-21621-00-FE
 $77.99
Unavailable
# FLAP
4NK-21621-00-JW
 $77.99
Unavailable
# FLAP
4NK-21621-00-TY
 $77.99
Unavailable
# FLAP
4NK-21621-00-Y5
 $82.99
Unavailable
# FLAP
4NK-21621-00-3G
Unavailable
#32 NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
 $6.49
Available to order.
Add to View Price
#33 BOLT, HEXAGON SOCKET HEAD
90110-06200-00
 $7.49
Available to order.
Add to View Price
#34 PLUG, BLIND
4NK-83345-00-00
 $28.99
Available to order.
Add to View Price
#35 STAY, 9
4NK-2317W-00-00
 $325.99
Unavailable
# STAY, 9
4NL-2317W-00-00
 $278.99
Unavailable
#36 BOLT, BUTTON HEAD
92014-06012-00
 $3.10
Available to order.
Add to View Price
#37 WASHER, PLATE
90201-06043-00
 $6.49
Available to order.
Add to View Price
#38 REFLECTOR, REAR 1
449-85131-02-00
 $28.99
Available to order.
Add to View Price
#39 WASHER, PLATE
90201-05033-00
 $9.49
Available to order.
Add to View Price
#40 BRACKET, REFLECTOR
4NK-21641-00-00
 $11.49
Unavailable
#41 BOLT, FLANGE (SMALL HEAD)
95024-06010-00
 $4.35
Available to order.
Add to View Price
#42 REAR REFLECTOR ASSY
1FK-85130-00-00
 $32.99
Available to order.
Add to View Price
#43 NUT, FLANGE
95707-05500-00
 $7.49
Available to order.
Add to View Price
#44 HOSE
90446-07114-00
 $6.49
Available to order.
Add to View Price
#45 DAMPER 2
5A8-21639-00-00
 $8.49
Available to order.
Add to View Price
#46 BRACKET, SEAT LEVER 1
4NK-2475H-00-00
 $70.99
Available to order.
Add to View Price
#47 BOLT, FLANGE
95027-06012-00
 $3.65
Available to order.
Add to View Price
#48 DAMPER, SEAT
509-24724-00-00
 $10.49
Available to order.
Add to View Price
#49 GRIP 1
4NL-F164A-00-00
 $123.59
Unavailable
#50 GRIP 2
4NL-F164E-00-00
 $123.59
Unavailable
#51 STAY 1
4NL-F164F-10-00
 $185.26
Unavailable
#52 BOLT, FLANGE (SMALL HEAD)
95024-08016-00
 $8.49
Available to order.
Add to View Price
#53 BACK REST ASSEMBLY
4NL-2840F-10-00
 $523.99
Unavailable
#54 STAY 2
4NL-F164G-00-00
 $33.84
Unavailable
#55 BOLT, FLANGE (SMALL HEAD)
95024-06010-00
 $4.35
Unavailable
#56 EMBLEM
4NL-24786-00-00
 $50.13
Unavailable
