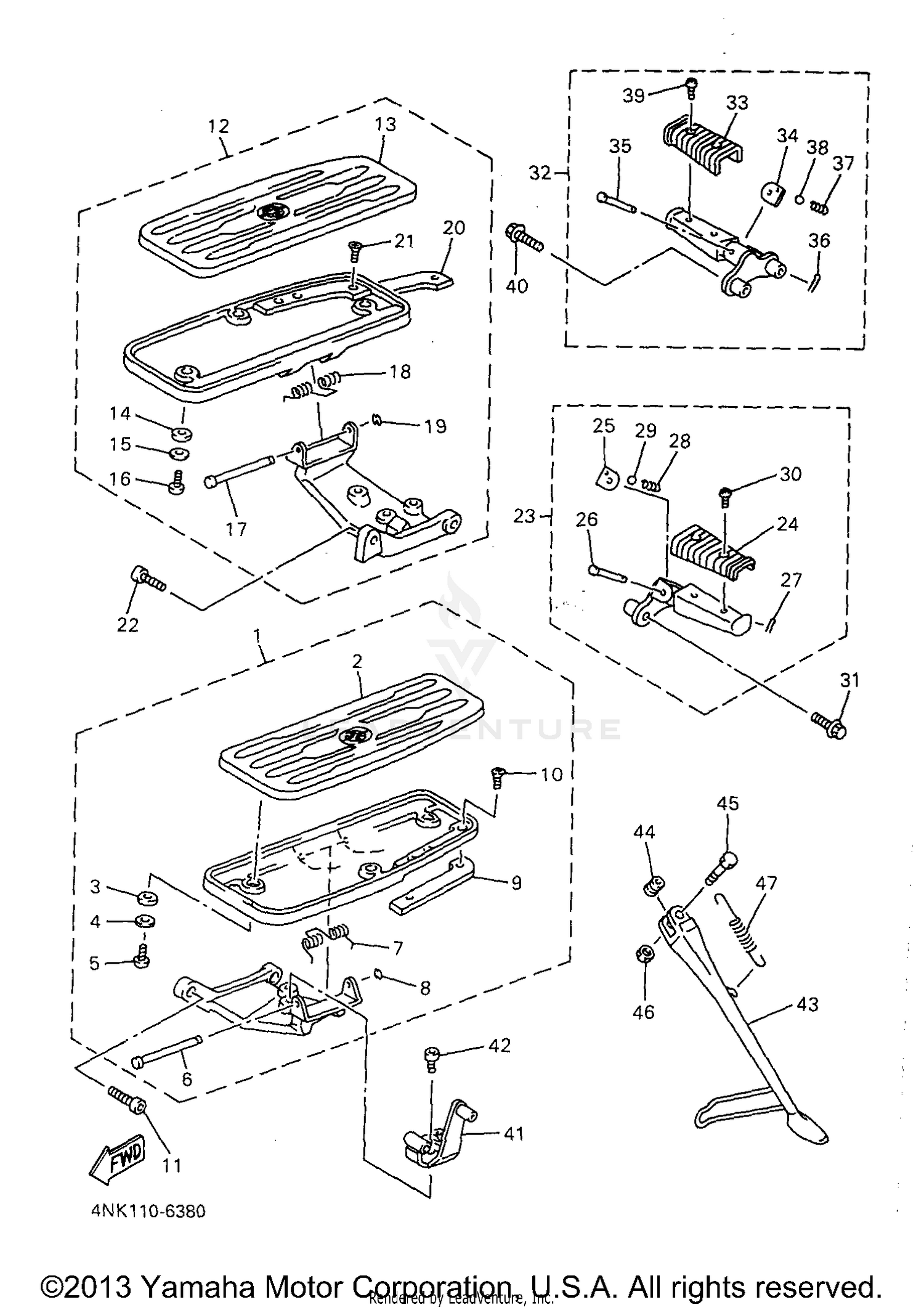

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FOOTREST ASSY (LEFT)
4NK-27410-00-00
Superseded by 4XY-27410-10-00
|
$221.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, FOOTREST
4NK-27413-00-00
|
$140.99 | ||
|
Unavailable |
|||
|
#3
DAMPER, FOOTREST
4NK-27414-00-00
|
$1.45 | ||
|
Unavailable |
|||
|
#4
WASHER, PLATE
90201-05660-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, BUTTON HEAD
92014-05010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT
4NK-27427-00-00
Superseded by 3D8-27427-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, RETURN
4NK-27426-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CIRCLIP
99009-06600-00
Superseded by 99001-06600-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
MOLE 1
4NK-27496-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, FLAT HEAD
98780-05010-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEXAGON SOCKET HEAD
91314-10030-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
FRONT FOOTREST ASSY (RIGHT)
4NK-27420-00-00
Superseded by 4XY-27420-10-00
|
$264.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, FOOTREST
4NK-27423-00-00
|
$113.21 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER, FOOTREST
4NK-27414-00-00
|
$1.45 | ||
|
Unavailable |
|||
|
#15
WASHER, PLATE
90201-05660-00
|
$6.49 | ||
|
Unavailable |
|||
|
#16
BOLT, BUTTON HEAD
92014-05010-00
|
$7.49 | ||
|
Unavailable |
|||
|
#17
SHAFT
4NK-27427-00-00
Superseded by 3D8-27427-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#18
SPRING, RETURN
4NK-27426-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#19
CIRCLIP
99009-06600-00
Superseded by 99001-06600-00
|
$0.95 | ||
|
Unavailable |
|||
|
#20
MOLE 2
4NK-27497-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, FLAT HEAD
98780-05010-00
|
$6.49 | ||
|
Unavailable |
|||
|
#22
BOLT, HEXAGON SOCKET HEAD
91314-10030-00
|
$5.49 | ||
|
Unavailable |
|||
|
#23
REAR FOOTREST ASSY 1
4NK-27430-00-00
|
$130.99 | ||
|
Unavailable |
|||
|
#24
COVER, REAR FOOTREST
1NH-27433-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPECIAL
2NT-27437-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN
91701-06032-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPRING, COMPRESSION
90501-12743-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#29
BALL
93501-04011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW,PAN
98517-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (SMALL HEAD)
95024-08030-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
REAR FOOTREST ASSY 2
4NK-27440-00-00
|
$121.99 | ||
|
Unavailable |
|||
|
#33
COVER, REAR FOOTREST
1NH-27433-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#34
WASHER, SPECIAL
2NT-27437-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#35
PIN
91701-06032-00
|
$8.49 | ||
|
Unavailable |
|||
|
#36
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Unavailable |
|||
|
#37
SPRING, COMPRESSION
90501-12743-00
|
$3.90 | ||
|
Unavailable |
|||
|
#38
BALL
93501-04011-00
|
$7.49 | ||
|
Unavailable |
|||
|
#39
SCREW,PAN
98517-06012-00
|
$3.55 | ||
|
Unavailable |
|||
|
#40
BOLT, FLANGE (SMALL HEAD)
95024-08030-00
|
$8.99 | ||
|
Unavailable |
|||
|
#41
BRACKET 3
4NK-27443-00-00
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT
91317-08014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
STAND, SIDE
4NK-27311-01-00
|
$212.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
COLLAR
90387-1007K-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT
90101-10776-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
NUT, SELF-LOCKING
90185-10037-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
SPRING, TENSION
90506-29358-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
